Modular Designed Metering Pumps
Primeroyal PQ Model

The PRIMEROYAL PQ metering pumps are versatile, reliable pumps that consistently and accurately inject chemicals. The pumps’ field-proven design enables precise control of the pump delivery rate while meeting or exceeding industry standards for steady state accuracy and repeatability. They feature a compact, variable eccentric drive that changes the stroke length by changing the position of the center of the shaft in the eccentric. Model PQ provides accurate dosing of a broad spectrum of fluids at flow rates that can reach up to 8,657 l/h (2,199 gph). The pump has a modular design that accepts three types of liquid ends and offers capacity control options so it can meet the specific requirements of a large number of demanding industrial processes.

Contact Us
Request a Quote Request Service, Parts or Support
Share

Features

  • Available in vertical or horizontal motor configurations
  • Manual or electrical stroke length adjustment
  • Capacity adjustable while running or stopped
  • Minimized footprint

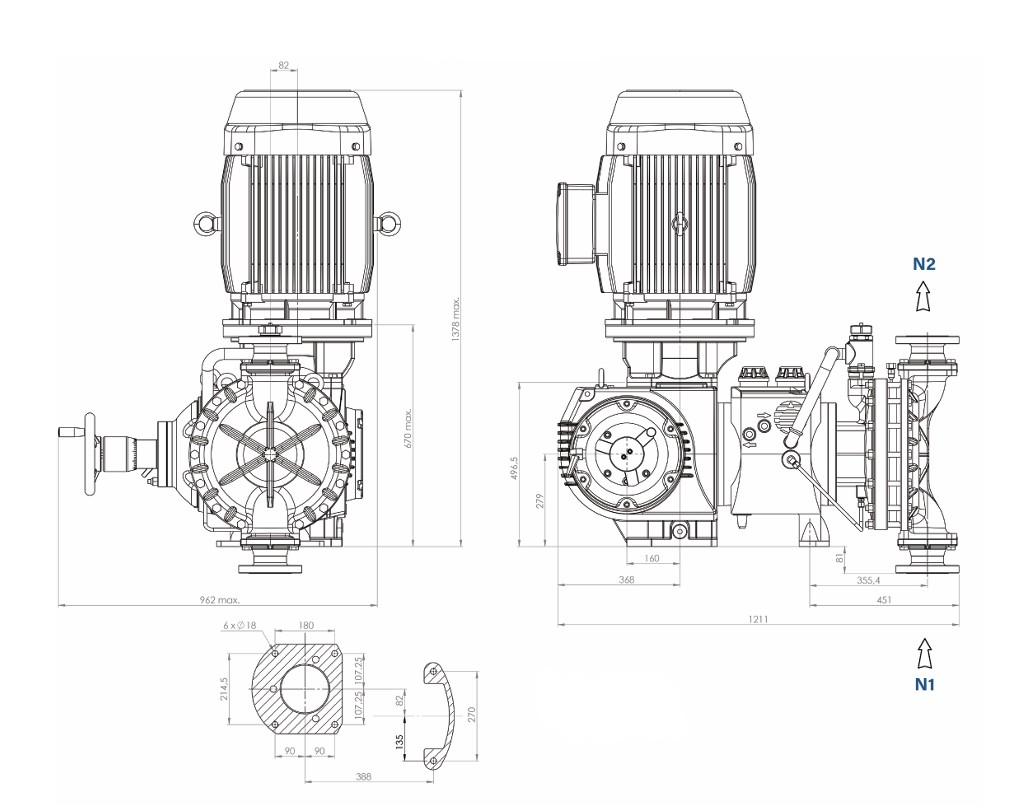

  • Packed plunger, Teflon PTFE or metallic double diaphragm liquid ends available
  • Compliant with API675 standards
  • Conforms to ATEX II 2 G Ex h IIC T4/T3 Gb X with ATEX motors
  • Multiplexable

Applications

  • Oil and Gas chemical injection
    • Upstream – Injection of methanol at pressures of 1,035 bar (15,000 psi) and more at the wellhead for onshore and offshore wells
    • Midstream – Injection of corrosion inhibitors for produced oil and gas integrity during transportation
    • Downstream – Injection of chemicals for separation and treatment of refined products
    • Produced water treatment – Injection of sodium hypochlorite, biocides, scale inhibitors, oxygen reducing agent, etc.
  • Chemical and Petrochemical Processing
    • Dosing catalysts for polymerization of polyethylene
  • Power Generation
    • High-pressure boiler feed water treatment

Specifications

  • Accuracy: ± 1% over a range of 10 to 100% nominal flowrate
  • Flow rate adjustment:
    • Micrometer adjustment of stroke while running or stopped
    • Fixed stroke version available as an option
  • Maximum stroke: 63 mm (2.48 in)
  • Frequencies at 50 Hz 1,440 rpm: 48, 73, 93, 117, 146, and 175 spm
  • Frequencies at 60 Hz 1,725 rpm: 58, 88, 112, 140, and 175 spm
  • Thrust 3,500 daN (7,868 lbf)
  • Ambient operating temperature:
    • Standard: -10°C to +50°C (+14°F to +122°F)
    • Low temperature option: -40°C to +50°C (-40°F to +122°F)
  • API675: Conforms
  • ATEX: Conforms to ATEX II 2 G Ex h IIC T4/T3 Gb X with ATEX motors
