The PRIMEROY K (PKG) compact metering pump guarantee safe, precise, and reliable dosing of any fluids, powered by its exclusive patented GSD design.
- Material (liquid end): 316L S.S. / PVC
- Pressure max: 536 psi / 37 bar (metallic liquid end); 150 psi / 10 bar (plastic liquid end)

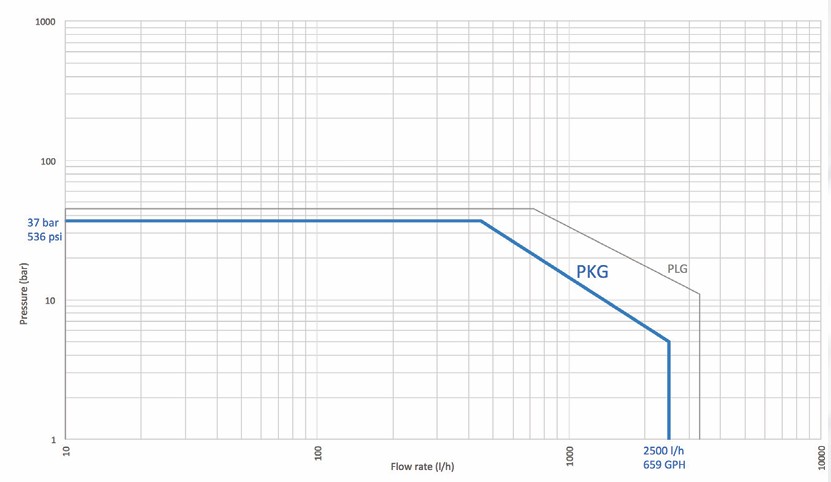

- Flow max:660 gph / 2500 lph
- Multiplexing capabilities
- Flow variation control: Manual/Remote
- Certifications: API 675, EC, ATEX, IECEX

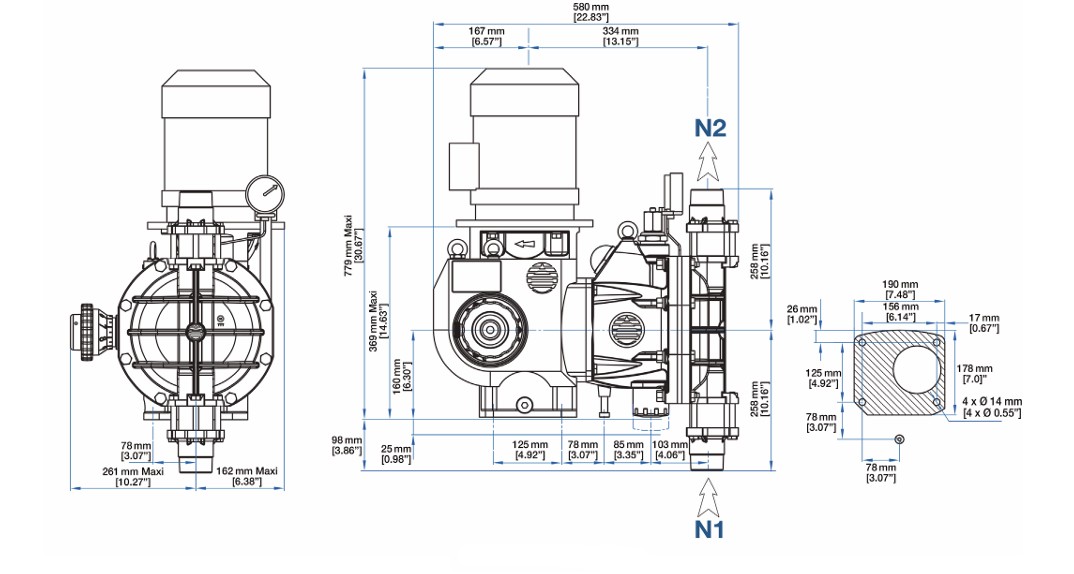

A Milton Roy’s exclusive diaphragm liquid end design, the GSD Technology ensures the safety and smooth operation of your dosing process:
- Triple hydraulic security, featuring an internal pressure safety valve, a diaphragm controlling the hydraulic refill, and the diaphragm itself is protected by a valve blocking the overrunning and the extrusion for maximum reliability.
- The Installation Monitoring Indicator (IMI) system provides real-time visual alerts for overpressure, cavitation, and pulsation dampening issues, preventing dosing inaccuracies and disturbances.
- One unique oil design for mechanical lubrication and hydraulic chamber: no risk of oil cross contamination while reducing drastically the pump footprint.
- A design without contour plates combined with the PTFE excellent chemical resistance makes the PKG ideal for injecting a huge variety of types of liquids, including clear, sensitive, slurry-laden, corrosive, toxic, abrasive, highly viscous liquids and many more.
The PRIMEROY K ensure ±1% steady state accuracy, over a range from 10 to 100% of the nominal flow rate, even under demanding conditions.
The Primeroy G - PKG series part numbers start with prefix codes PKG***. Please see datasheet for full part number configuration options.
Download manual for the catalog of Primeroy G - PKG series parts.
