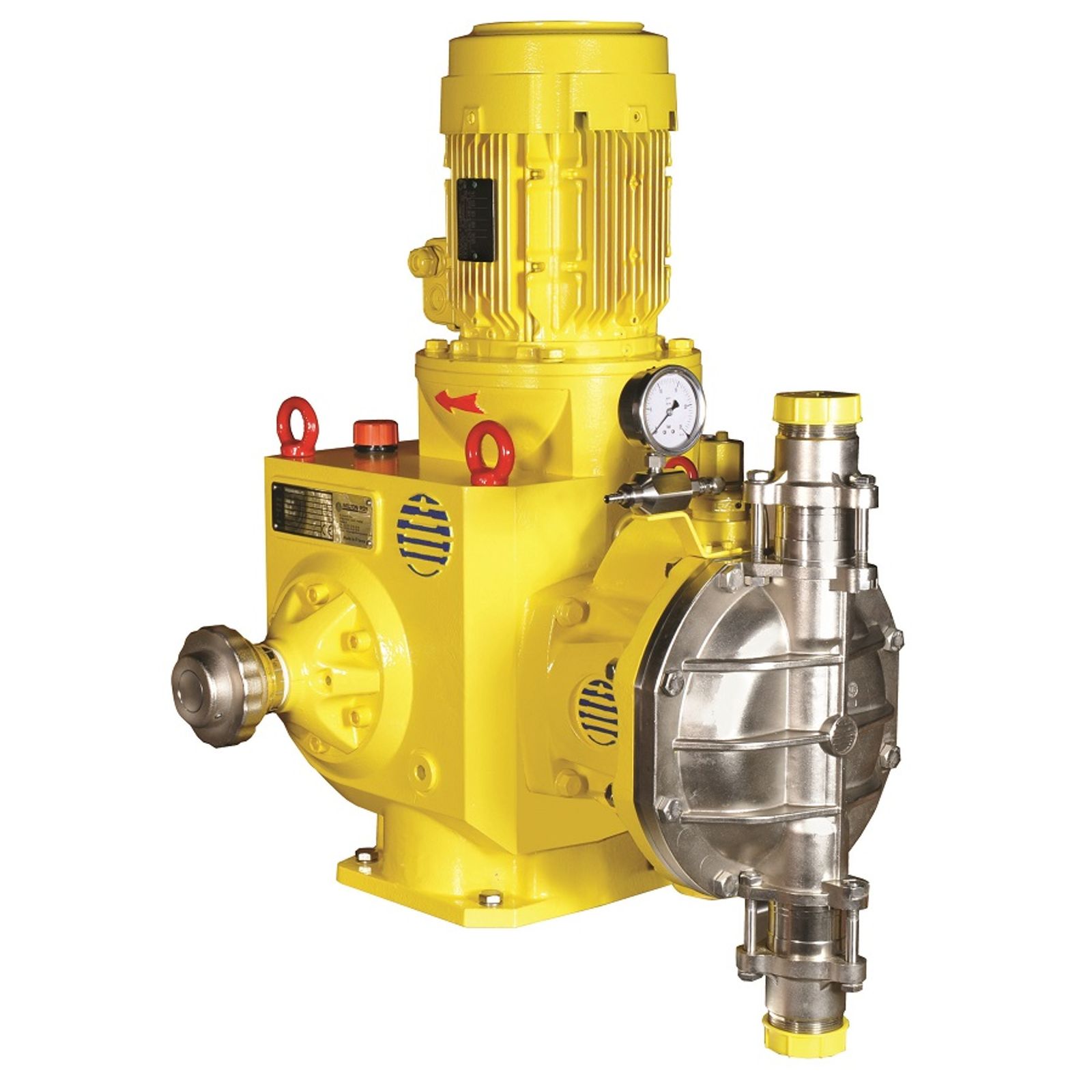

The PRIMEROY L (PLG) compact metering pumps offer an unmatched reliable and safe dosing for any kind of fluids thanks to its unique and patented GSD design.
- Material (liquid end): 316L S.S. / PVC
- Pressure max: 652 psi / 45 bar (metallic liquid end); 150 psi / 10 bar (plastic liquid end)
- Flow max: 871 gph / 3300 lph (metallic liquid end); 701 gph / 2657 lph (plastic liquid end)
- Multiplexing capabilities
- Flow variation control: Manual / Remote
- Certifications: API 675, EC, ATEX, IECEX
The GSD design ensures triple hydraulic security, featuring an internal pressure safety valve, a diaphragm controlling the hydraulic refill, and the diaphragm itself is protected by a valve blocking the overrunning and the extrusion for maximum reliability.
The Installation Monitoring Indicator (IMI) system provides real-time visual alerts for overpressure, cavitation, and pulsation dampening issues, preventing dosing inaccuracies and disturbances. Additionally, the unique oil design integrates mechanical lubrication and the hydraulic chamber, eliminating the risk of oil cross-contamination for superior performance and longevity, while reducing drastically the pump footprint.
The contour plate-free technology enables the PLG pump to handle all fluid types, including clear, corrosive, toxic, volatile, abrasive, flammable, and highly viscous liquids or slurries.
The Primeroy L - PLG series part numbers start with prefix codes PLG***. Please see datasheet for full part number configuration options.
Download manual for the catalog of Primeroy L - PLG series parts
