Dosing Pump for Consistent Chemical Delivery | MAXROY D

The MAXROY D is a rugged, industrial grade of dosing pumps designed for the toughest chemical processing applications. Its cast iron housing with chemical resistant coating enables the pump to be used in the harshest environments while the absence of contour plates enables all types of fluids to be dosed: slurry, viscous, clear, corrosive, toxic, volatile, abrasive, inflammable, etc.

  • Material (liquid end): 316L S.S. / PVC
  • Pressure max: 406 psi / 28 bar

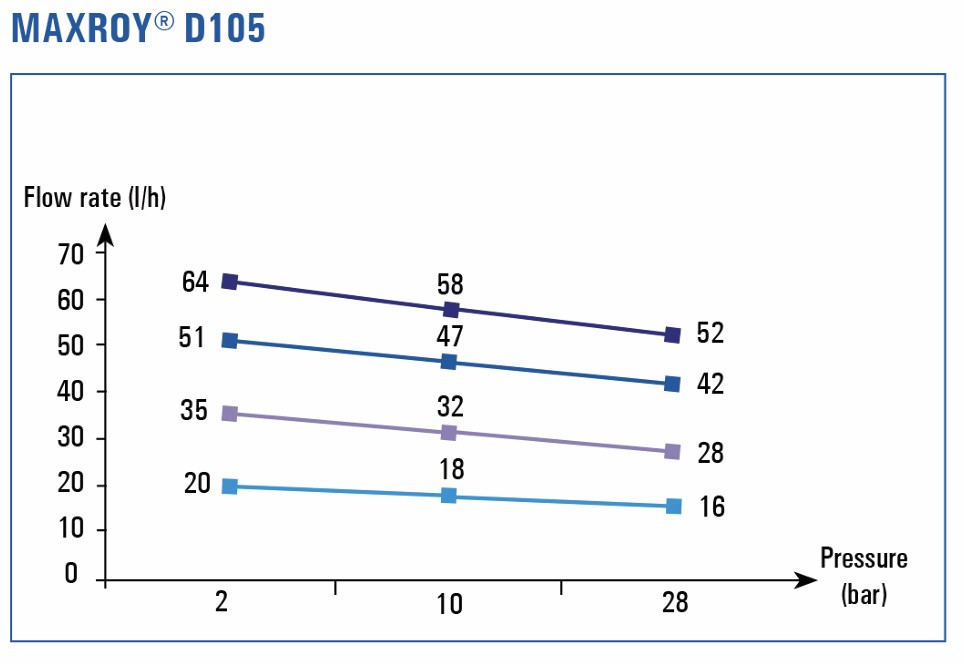

  • Flow max: 17 gph / 64 lph
  • Multiplexing capabilities: Duplex and Triplex
  • Flow variation control: Manual / Remote
  • Certifications: API 675, EC, ATEX, IECEX
This product is not available in the US and India.

The MAXROY D is a hydraulically actuated diaphragm pump designed for precise dosing of all types of fluids at moderate pressures, with steady-state accuracy of ± 1%.

Built to meet API 675 standards, the MAXROY D is engineered for long-term, reliable performance. Its hydraulically balanced diaphragm ensures accurate chemical delivery while reducing wear, making preventative maintenance straightforward and predictable.

Designed with durability and safety in mind, the pump features a dust-tight cast iron housing with a high-resistance coating to withstand even the harshest environments. An internal, adjustable pressure relief valve provides added protection by protecting the pump from over pressure conditions and ensuring it delivers the correct amount of fluid every cycle.

To meet diverse process requirements, the MAXROY D offers adjustable capacity for precise flow control and a wide range of wetted materials making it suitable for a wide array of fluids and applications.

The Maxroy D series part numbers start with prefix codes RD***. Please see datasheet for full part number configuration options.

Download manual for the catalog of Maxroy D series parts.
