The PRIMEROY K (PKG) compact metering pump guarantees safe, precise, and reliable dosing of any fluids, powered by its exclusive patented GSD design.
Multiplexing capabilities
Fully compliant with API 675 and major global standards (ATEX, IECEx, NACE), ensuring safe and reliable operation in critical industrial environments worldwide.
Triple hydraulic safety system with PTFE diaphragm design prevents leaks, protects against overpressure, and ensures reliable operation in demanding applications.
Visual IMI system detects overpressure, cavitation, and dosing instability, helping operators quickly identify issues and maintain accurate performance.
Highly adaptable with multiple liquid ends, valves, and control options, allowing precise configuration for specific process requirements.
| 50 Hz motor | 6 0 Hz motor |
|---|---|---|
Flow rate | Up to 2,500 l/h | U p to 659 GPH |
Pressure | Up to 37 bar | Up to 536PSI |
Thrust | 475 daN | 1 ,067 lbf |
100% stroke | 40 mm | 1.57 in |
Ambient T° Standard | -10 to + 50 °C | +14 to +122 °F |
Low T° design | - 40 to +50 °C | - 40 to +122 °F |
Model PKG provides accurate dosing of a broad spectrum of fluids used in many industrial processes thanks to their modular design which offers several types of liquid ends, capacity control options and other configuration options enabling them to meet the specific requirements ofyour process application.

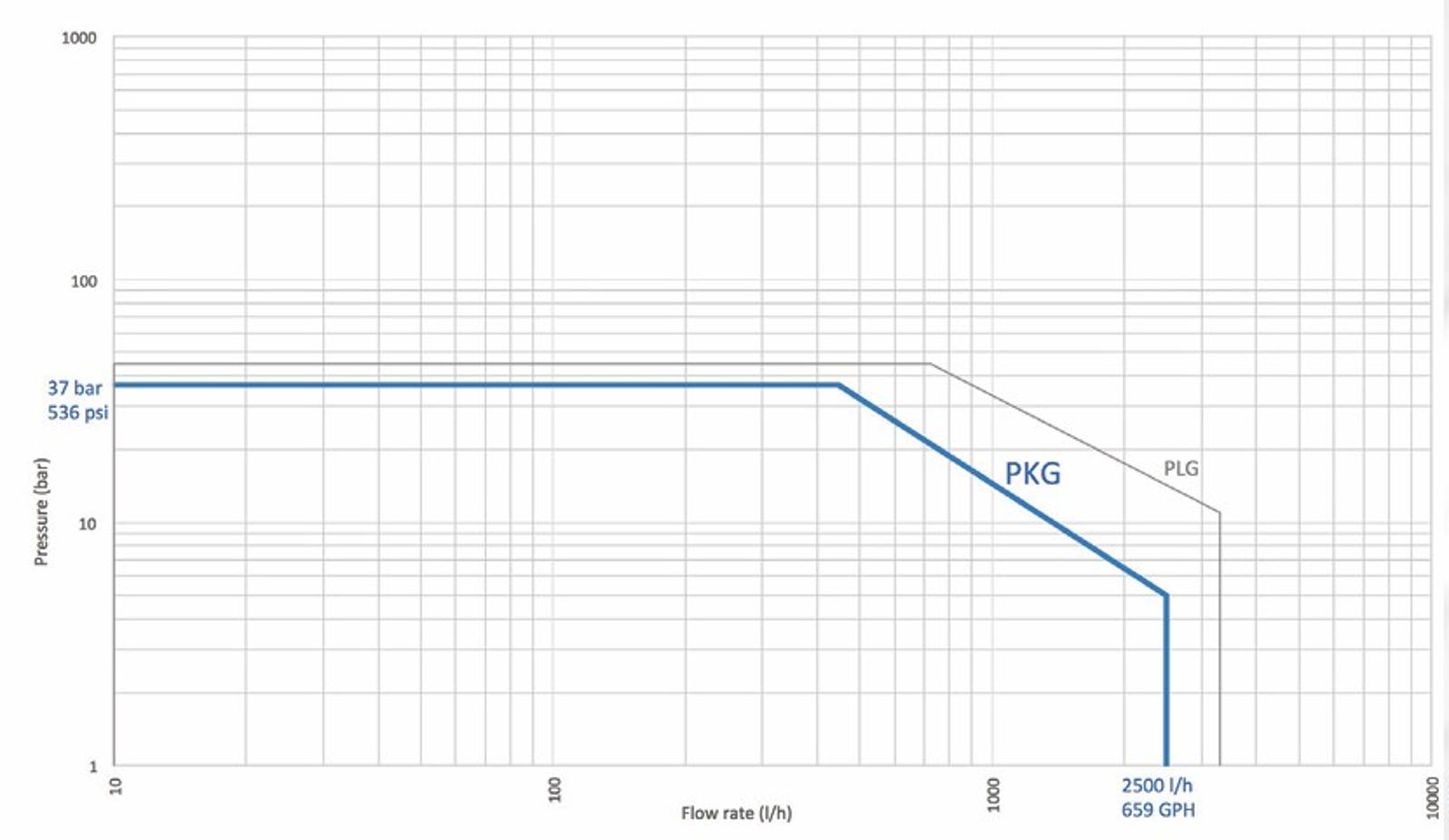

The main benefits of the PKG are its special compact design, the Global Security Device (GSD) and the Installation Monitoring Indicator (IMI). The model PKG is designed for high flow rates (2500 L/h – 659 GHP for a simplex configuration) and mid pressure applications (37 bar – 536 psi).
- IEC or NEMA mounting, VFD (Variable Frequency Drive) motor |
|
| 50 Hz Motor | 60 Hz Motor |
| |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Plunger diameter code | Swept volume | Stroke speed max | Motor speed max | Flow rate max | Pressure max | Stroke speed max | Motor speed max | Flow rate max | Pressure max | Connections | ||
10 bar | P.max | 145 psi | P.max | |||||||||
Ø | cm3 | spm | rpm | l/h | bar | spm | rpm | GPH | psi | |||
Metallic, type H | ||||||||||||
40 | 50.3 | 180 | 1440 | 488 | 448 | 37 | 173 | 1728 | 124 | 113 | 536 | 1” - VV1 m |
50 | 78.5 | 180 | 1440 | 780 | 747 | 24 | 173 | 1728 | 198 | 189 | 348 | 1” - VV1 m |
63 | 124.7 | 180 | 1440 | 1238 | 1219 | 15 | 173 | 1728 | 314 | 309 | 217 | 1” - VV1 m |
70 | 153.9 | 144 | 1440 | 1197 | 1189 | 12 | 144 | 1152 | 316 | 314 | 174 | 2” - VV1 m |
80 | 201.1 | 144 | 1440 | - | 1598 | 9 | 144 | 1152 | - | 422 | 130 | 2” - VV1 m |
90 | 254.5 | 144 | 1440 | - | 2022 | 7 | 144 | 1152 | - | 534 | 101 | 2” - VV1 m |
100 | 314.2 | 144 | 1440 | - | 2500 | 5 | 144 | 1152 | - | 659 | 72 | 2” - VV1 m |
Plastic, type P | ||||||||||||
40 | 50.3 | 180 | 1440 | 488 | 10 | 173 | 1728 | 124 | 124 | 145 | 1” - VV1 f | |
50 | 78.5 | 180 | 1440 | 780 | 10 | 173 | 1728 | 198 | 198 | 145 | 1” - VV1 f | |
63 | 124.7 | 180 | 1440 | 1238 | 10 | 173 | 1728 | 314 | 314 | 145 | 1” - VV1 f | |
70 | 153.9 | 144 | 1440 | 1197 | 10 | 144 | 1152 | 316 | 316 | 145 | 1” 1/2 - VV1 f | |
80 | 201.1 | 144 | 1440 | - | 1598 | 9 | 144 | 1152 | - | 422 | 130 | 1” 1/2 - VV1 f |
90 | 254.5 | 144 | 1440 | - | 2022 | 7 | 144 | 1152 | - | 534 | 101 | 1” 1/2 - VV1 f |
100 | 314.2 | 144 | 1440 | - | 2500 | 5 | 144 | 1152 | - | 659 | 72 | 1” 1/2 - VV1 f |
Version | Net weight (*) | Gross weight (*) | Packing | |||
|---|---|---|---|---|---|---|
kg | lbs | kg | lbs | (L x W x H) mm | (L x W x H) in | |
PKG - Simplex | 120 | 265 | 170 | 375 | 700 x 650 x 1000 | 27.6 x 25.6 x 39.4 |
PKG - Duplex | 190 | 419 | 260 | 573 | 1350 x 850 x 800 | 53.2 x 33.5 x 31.5 |
PKG - Triplex | 320 | 705 | 450 | 992 | 1700 x 850 x 800 | 67 x 33.5 x 31.5 |
Coagulation/flocculation (injection of ferric chloride, aluminium sulphate, etc.), pH regulation (injection of acids and alkalis), water conditioning before and/or after RO treatment in desalination plant
protection of installation such as boilers and hydraulic systems (corrosion inhibitors, biocides, scale inhibitors, amines…)
injection of additives, injection of co-catalyst, injection of sulphuric acid into water to produce diluted sulphuric acid
Injection of chemicals for separation and treatment of refined products, injection of paraffin inhibitor into fuel storage tanks
injection of biocide, corrosion/scale inhibitors, H2S scavengers… protecting piping and other assets and maintaining production rates, transfer of steam condensate
Injection of enzymes in starch production, injection of caustic soda for process water neutralization in refining and distilling applications
