Very compact, the PRIMEROYAL H (PH) combines robustness and modular design with high dosing precision: ±1% accuracy and ±3% repeatability and linearity, in compliance with API 675 standards.
- Material (liquid end): 316L S.S. / 17.4-PH
- Pressure max:
- Diaphragm liquid end: 7500 psi / 515 bar (metallic liquid end)
- Flow max:
- Diaphragm liquid end: 250 gph / 948 lph (metallic liquid end)
- Multiplexing capabilities
- Flow variation control: Manual / Remote
- Certifications: API 675, EC, ATEX, IECEX

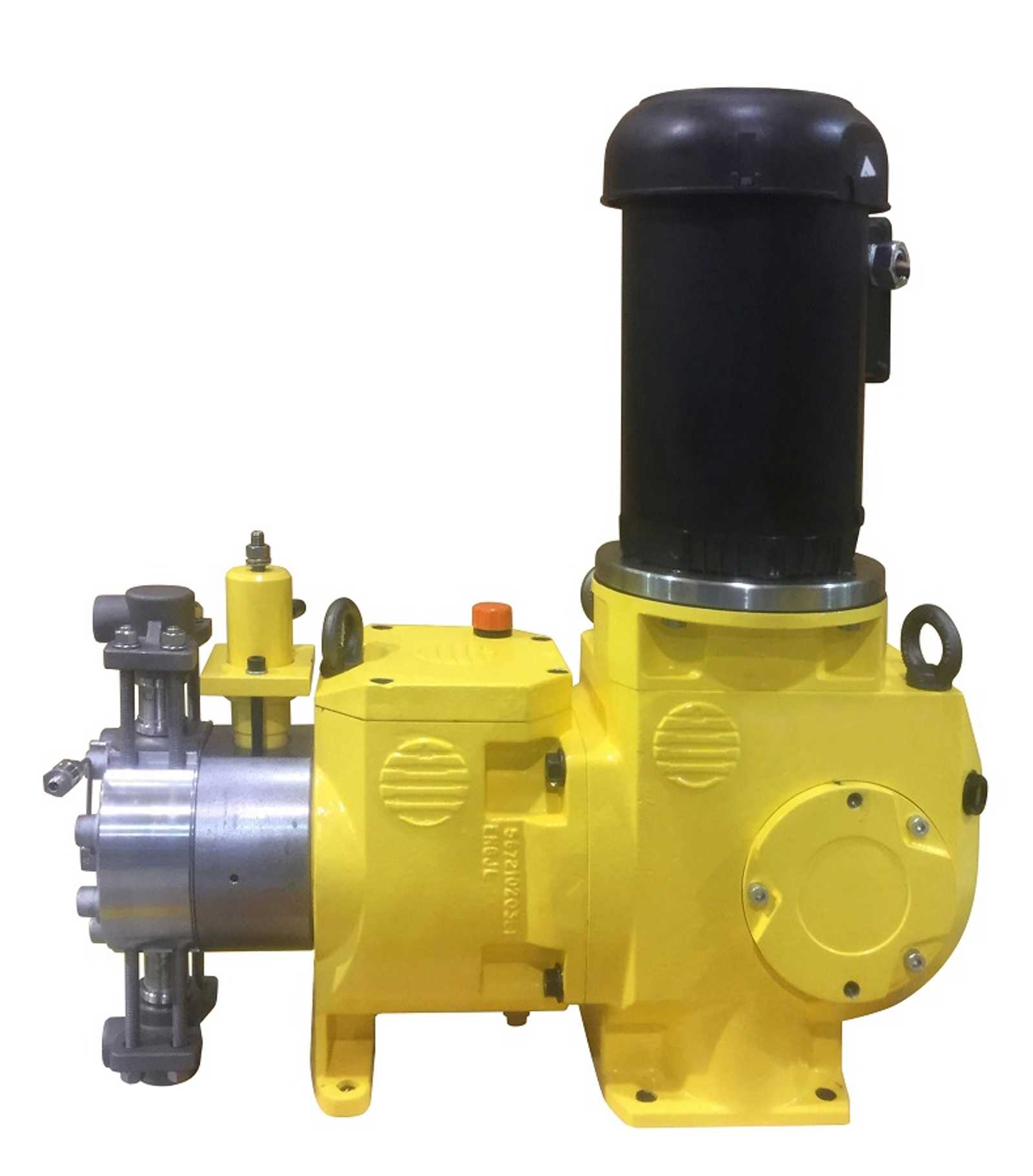

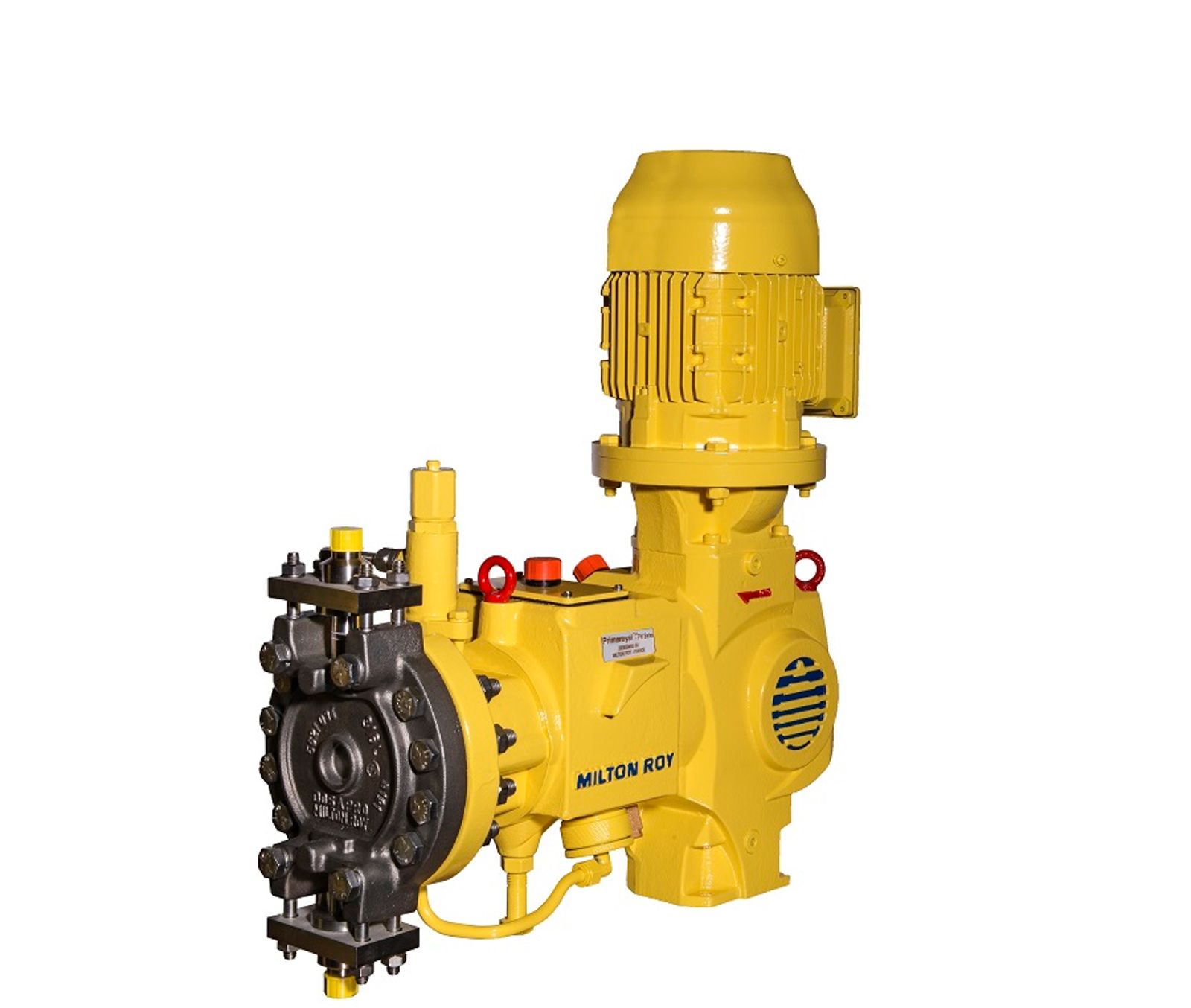

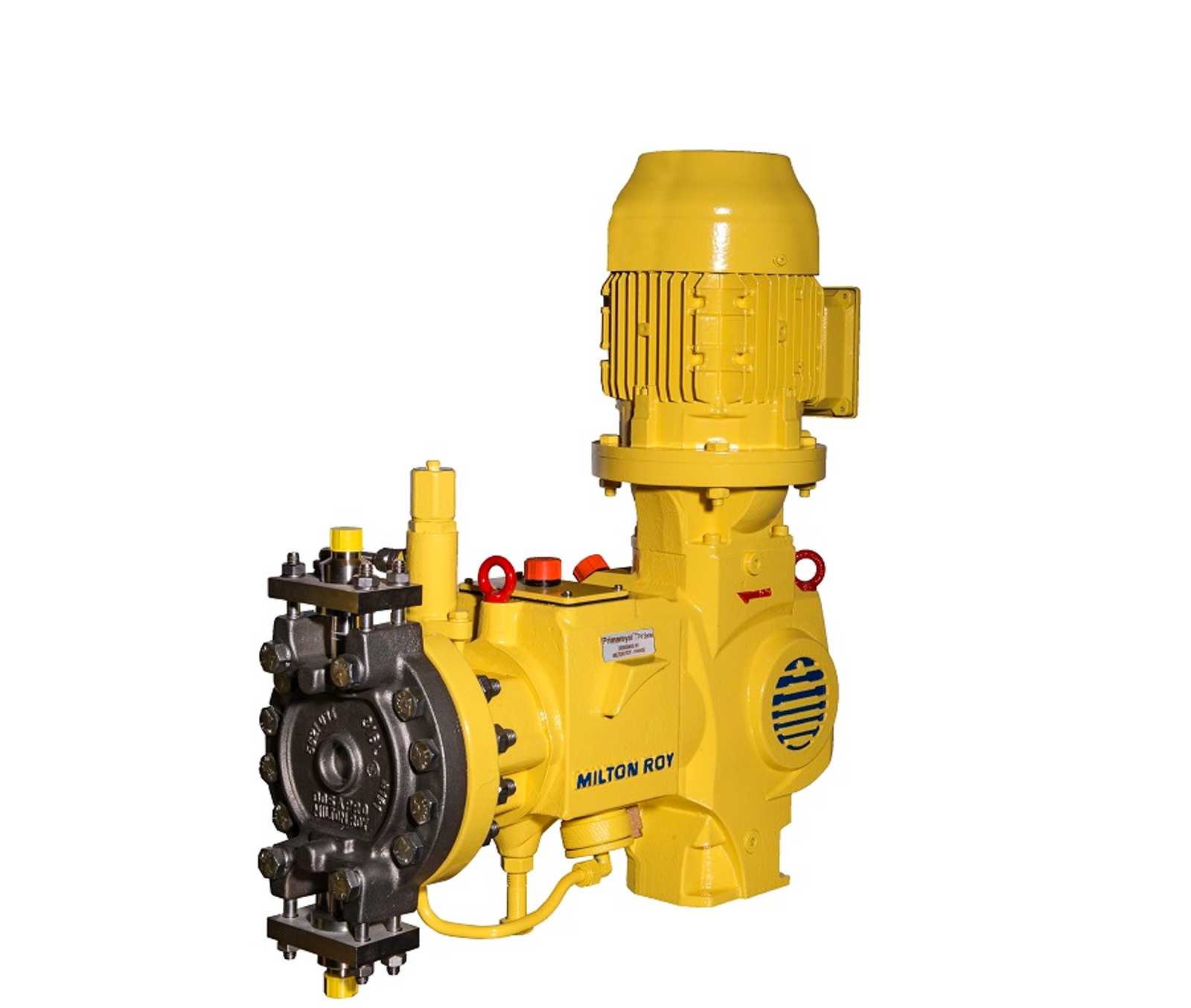

PRIMEROYAL H hydraulically actuated metering pumps are versatile, reliable pumps that consistently and accurately inject a wide range of fluids used in many industrial and WWT processes. They can operate in the most extreme conditions such as saline, offshore, desert, or low temperature environments.
Featuring a compact, variable eccentric drive that changes the stroke length by repositioning the center of the shaft in the eccentric, the PH pumps offer multiple designs of hydraulically actuated diaphragm liquid ends, including low flow, PTFE, and metallic diaphragm.
Thanks to its modular design and flexibility, the PRIMEROYAL H delivers consistent performance, adapting perfectly to demanding environments where accuracy and reliability are essential.
The Primeroyal H part numbers start with prefix codes PHH*** and PHM***. Please see datasheet for full part number configuration options.
