Milton Roy Compact Dosing Expert

Designed for High Performance, Built for Reliability

Our Compact Dosing Xpert is engineered to deliver precise chemical dosing across a wide range of water treatment applications. Sporting a modular design, they maximize both space utilization and performance to suit your exact needs. Each unit is built to meet international standards, with industry expertise and rigorous factory testing parameters. The system is pre-assembled and is easily configurable to suit diverse requirements, enabling hassle-free deployment. They are a robust and scalable solution for industrial water treatment operations, primed for long-term operational reliability.

This product is only available in the Middle East regions.

Our Compact Dosing Xpert offers precise chemical dosing for diverse water treatment applications with a modular, space-efficient design. Pre-assembled and rigorously tested, they ensure reliable performance, easy configuration, and long-term scalability for industrial operations.

Compact chemical dosing system for efficient water treatment
Modular, pre-engineered design for easy customization
Space-saving skid ideal for constrained installations
Supports diverse applications across multiple industries

Compact, Space-Efficient Footprint maximizes space utilization without sacrificing operational functionality.
Modular, Plug-and-Play Integration allows for rapid deployment, simplified scaling, and minimal installation effort.
Dual Pump Configuration (Working/Standby) to ensure uninterrupted operation.
Customizable Material of Construction (MOC), with corrosion-inhibiting CPVC and PVDF configurations.
Factory Acceptance Tested (FAT) and Prewired to validate performance, safety, and compliance.
Skid-Mounted Assembly with Integrated Control Stations for local operation and monitoring.
Pre-Engineered Dosing System for seamless integration
Optimized Total Cost of Ownership (TCO) of both capital and operational expenditures, delivering substantial long-term cost savings.

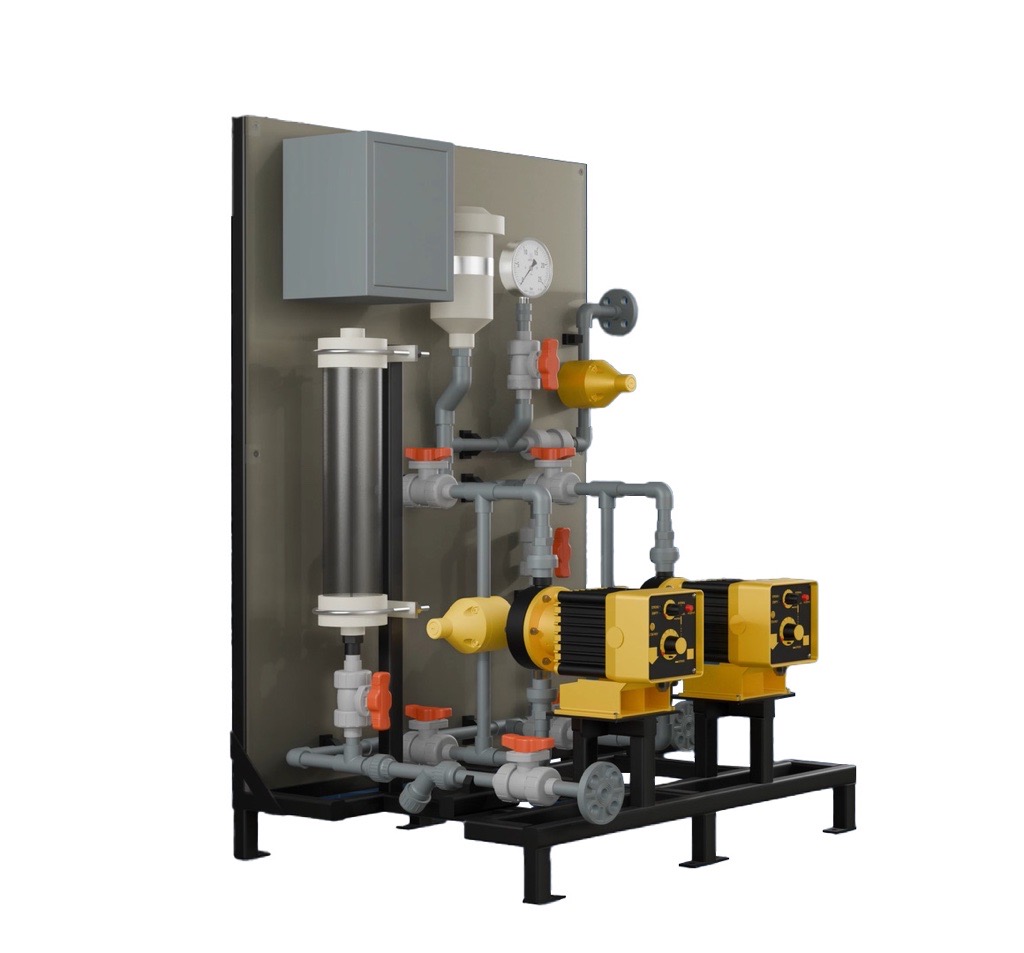

EMAG Solenoid Pump series
Max Pump Flow: 90 LPH
Max Pressure: 10 bar
MOC: PVC, PVDF

GB Mechanical diaphragm Pump series
Max Pump Flow: 560 LPH
Max Pressure: 10 bar
MOC: PVC, PVDF

PUMPS
PIPING
PULSATION DAMPENER
BACK PRESSURE VALVE
PRESSURE RELIEF VALVE
CALIBRATION COLUMN
Y-STRAINER
PRESSURE GAUGE
ISOLATION VALVES
CONTROL PANEL

Emag – D Series

System Model	Pump Model	Max Flow (LPH)	Max Pressure (Bar)	Liquid End Material	Pipe Material Options	Elastomer Options	Piping Size
System Model	Pump Model	Max Flow (LPH)	Max Pressure (Bar)	Liquid End Material	Pipe Material Options	Elastomer Options	Suction	Discharge
CDX D10	D-10, D-70, D-90	4.00	10.3	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	3/8"	3/8"
CDX D11	D-11, D-71, D-91	10.00	12.1	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	3/8"	3/8"
CDX D12	D-12, D-72, D-92	14.00	12.1	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	3/8"	3/8"
CDX D13	D-13, D-73, D-93	29.00	3.4	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	3/8"	3/8"
CDX D14	D-14, D-74, D-94	75.00	10.3	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	1/2"	1/2"

GB Series

System Model	Pump Model	Max Flow (LPH)	Max Pressure (Bar)	Liquid End Material	Pipe Material Options	Elastomer Options	Piping Size
System Model	Pump Model	Max Flow (LPH)	Max Pressure (Bar)	Liquid End Material	Pipe Material Options	Elastomer Options	Suction	Discharge
CDX 401	GB401	63.00	10.0	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	1/2"	1/2"
CDX 402 A	GB402A	99.60	10.0	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	1/2"	1/2"
CDX 402	GB402	132.00	10.0	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	3/4"	3/4"
CDX 403 A	GB403A	182.00	10.0	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	3/4"	3/4"
CDX 403	GB403	265.00	10.0	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	3/4"	3/4"
CDX 404	GB404	332.00	10.0	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	3/4"	3/4"

System Model	Pump Model	Max Flow (LPH)	Max Pressure (Bar)	Liquid End Material	Pipe Material Options	Elastomer Options	Piping Size
System Model	Pump Model	Max Flow (LPH)	Max Pressure (Bar)	Liquid End Material	Pipe Material Options	Elastomer Options	Suction	Discharge
CDX 603	GB603	373.00	7.0	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	3/4"	3/4"
CDX 604	GB604	465.00	7.0	PP / PVC / PVDF	CPVC / PVDF	FKM / EPDM	1"	1"

Municipal and Industrial Water & Wastewater Treatment
Ideal for precise chemical injection in coagulation, flocculation, pH adjustment, and disinfection processes across municipal utilities and industrial facilities.
Cooling Water Treatment & Biocide Injection
Enables accurate metering of biocides, scale inhibitors, and corrosion inhibitor chemicals to protect heat exchangers and cooling towers.
Desalination Plants
Supports pre-treatment and post-treatment dosing applications such as anti-scalant, acid, and disinfectant injection in reverse osmosis and multi-stage flash desalination systems.
Power Generation Facilities
Facilitates precise chemical dosing for boiler feedwater treatment, cooling circuits, and emissions control systems.
Sewage Treatment Plants (STPs)
Supports biological and chemical treatment stages, including nutrient removal, odor control, and disinfection.
Effluent Treatment Plants (ETPs)
Designed for industrial effluent management in sectors such as textiles, pharmaceuticals, food & beverage, and petrochemicals.
