High Accuracy Metering Pump | CENTRAC™ B Series

CENTRAC pumps combine a unique constant stroke length drive mechanism and electronic variable speed drive technology. The unique drive system provides a steady state accuracy of +/- 0.5% over the entire turndown range. This is twice the accuracy of the standard +/- 1% of most metering pumps. Greater accuracy means better control of the treatment process and more efficient chemical usage.



  • Material (liquid end): 316SS / PVDF / PVC / PP / Acrylic
  • Pressure max: 3,675 psi / 253 bar (metallic or plastic liquid end)
  • Flow max: 1,430 gph / 5,413 lph (metallic or plastic liquid end)
  • Flow variation control: Manual / Remote
  • Certifications: ETL
  • 0.5% Steady State Accuracy over 100:1 turndown

Drive

Helical Gear and Scotch Yoke (all moving parts submerged in oil)

Liquid End

High Performance Diaphragm (hydraulically balanced). Multiplexing - Simplex or Duplex

Maximum Performance Ratings (per head)

1430 GPM @ 84 PSIG to 4.1 GPM @ 3675 PSIG

Capacity Control

(AC) Electronic Variable Frequency with 100:1 Turndown

(DC) Electronic Servo Speed Drive with 100:1 Turndown

Maximum Stroking Speed

162 SPM

Accuracy

0.5% Steady State Accuracy Over 100:1 Turndown

Alternative AC Vector Duty Motor Sizing for 100:1 turndown



Plunger Diameter (INCH)

No. of Heads.

Max. Capacity Plastic LE (GPH) @ 150 psig

Max. Capacity Metallic LE (GPH) @ 200 psig

AC Vector Duty Motor Types Sizes (Torques) & Pressure Limits in PSIG

1.0  HP (3.0 LBS-FT)

1.5 HP 4.5 LBS-FT)

2 HP (6.0 LBS-FT)

3 HP (9.0 LBS-FT)

5 HP (15.0 LBS-FT)

3/8” (9.5 mm)

Simplex

5.5

4.1

2404

3607

3675

----

----

Duplex

11.0

8.2

1924

2885

3675

----

----

7/16” (11 mm)

Simplex

7.7

7.0

1767

2650

3533

3675

----

Duplex

15.4

14.7

1413

2120

2826

3675

----

9/16” (14 mm)

Simplex

12.9

12.6

1069

1603

2137

3206

3675

Duplex

25.8

25.2

855

1282

1710

2535

3675

5/8” (16 mm)

Simplex

16.1

17.5

866

1298

1731

2597

3675

Duplex

32.2

35.0

692

1039

1385

2077

3439

¾” (20 mm)

Simplex

24.3

24

601

902

1202

1803

2986

Duplex

48.6

48

481

721

1245

1443

2388

1” (25 mm)

Simplex

45

45

338

507

676

1014

1679

Duplex

90

90

270

406

541

811

1343

1-1/4” (32 mm)

Simplex

70

70

216

325

433

649

1075

Duplex

140

140

173

260

346

519

860

1-1/2” (38 mm)

Simplex

100

100

150

225

301

451

746

Duplex

200

200

120

180

240

361

597

2” (51 mm)

Simplex

180

180

85

127

169

254

420

Duplex

360

360

68

101

135

203

336

2-1/2” (64 mm)

Simplex

280

280

54

81

108

162

269

Duplex

560

560

43

65

87

130

215

3-1/2” (89 mm)

Simplex

550

550

XXXX

41

55

83

137

Duplex

1100

1100

XXXX

XXXX

44

66

110

4” (102 mm)

Simplex

715

715

XXXX

XXXX

42

63

105

Duplex

1430

1430

XXXX

XXXX

XXXX

51

84

*Maximum liquid end pressure for Centrac B pumps is 4,000 psig at this time

Connect With Our Experts

We will help you to identify the right solution for your application, operating conditions and performance requirements

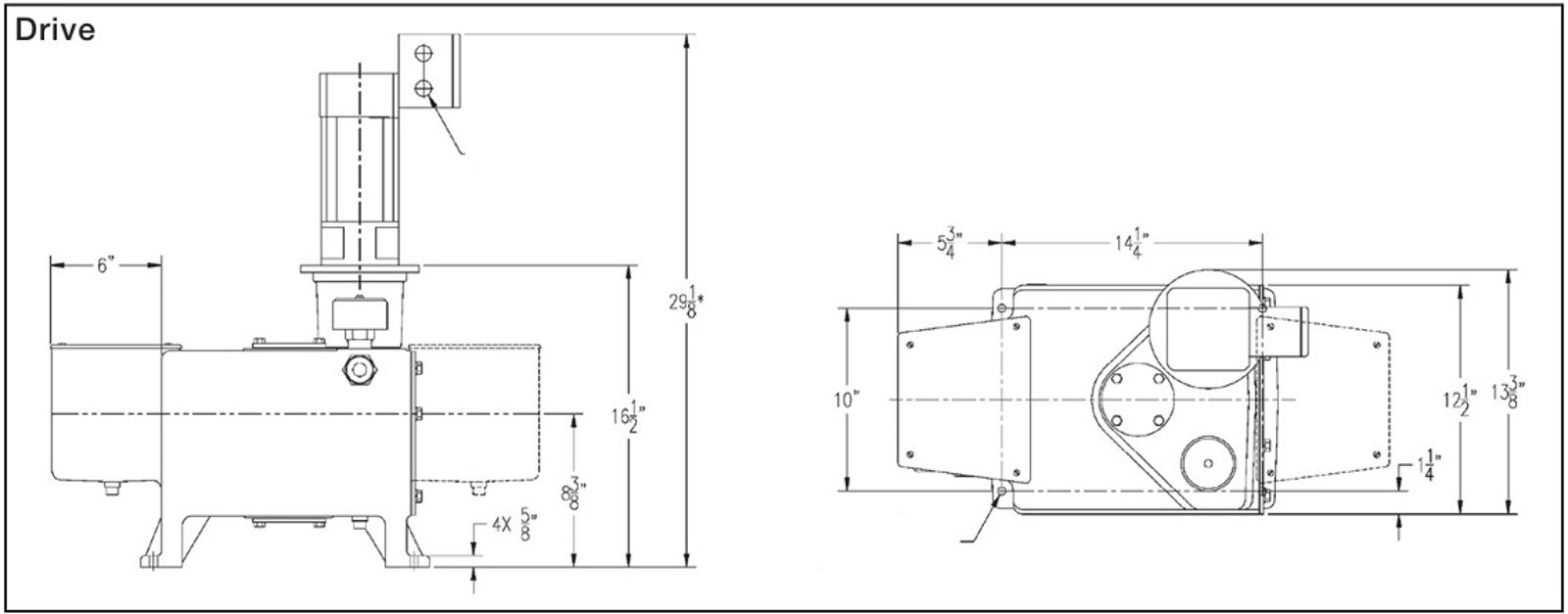

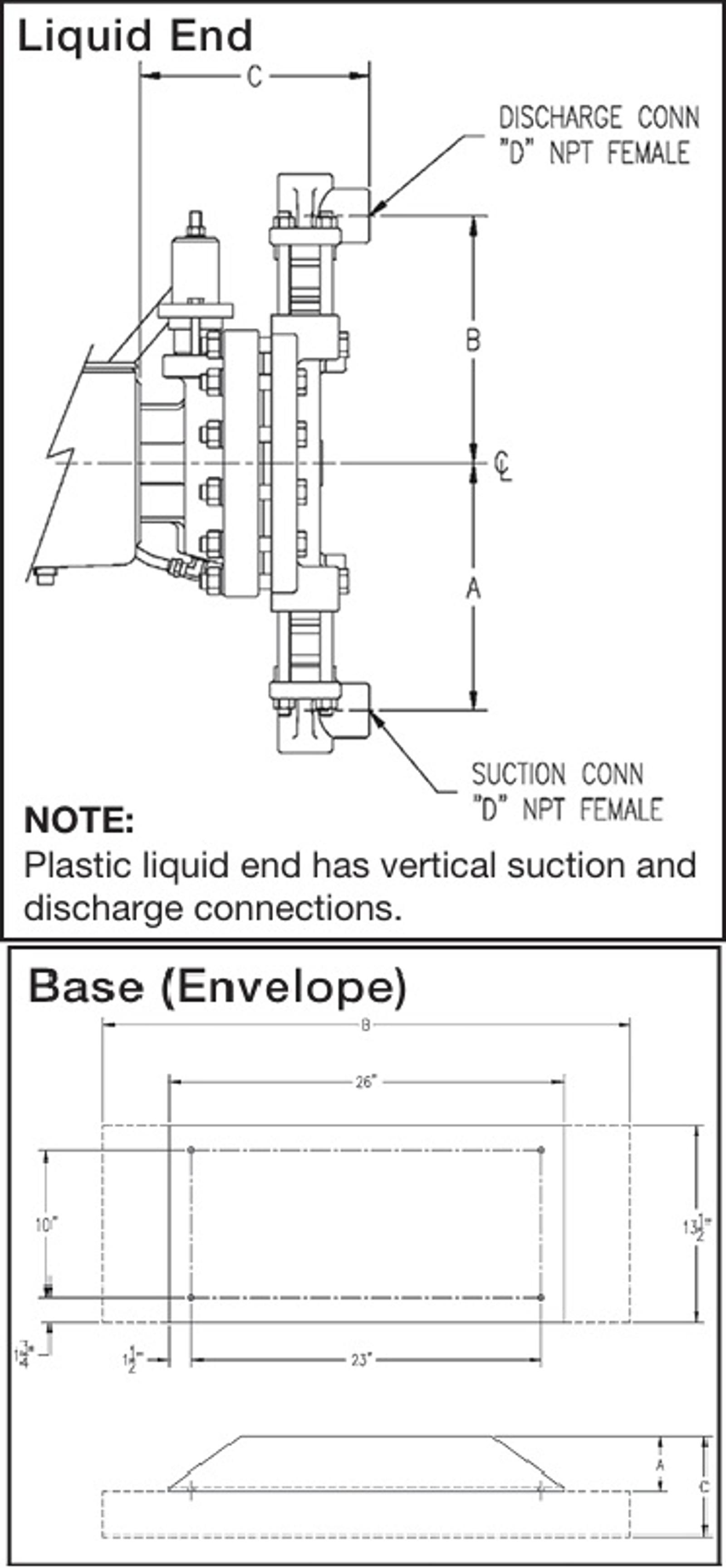

Pump Dimensions

Dimensions shown are approximate for TENV and are not for construction. Consult Milton Roy for exact engineering dimensions.

dimensions-pump-centrac-b



Plgr. Dia.

A

B

C

D

Metallic

3/8 - 1"

5 7/32"

5 7/32"

7"

1/2"

1 1/4"

5 7/32"

5 7/32"

7"

1/2"

1 1/2"

7 1/16"

7 9/16"

8 1/4"

1"

2"

7 9/16"

7 9/16"

8 1/4"

1"

2 1/2"

7 9/16"

7 9/16"

8 1/4"

1"

3 1/2"

10 1/8"

13"

1 1/2"

1 1/2"

Plastic

3/8 - 1"

6 1/2"

6 1/2"

6 15/16"

1/2"

1 1/4"

6 1/2"

6 1/2"

6 15/16"

1/2"

1 1/2"

9 9/16"

9 9/16"

8 3/4"

1"

2"

9 9/16"

9 9/16"

8 3/4"

1"

2 1/2"

9 9/16"

9 9/16"

8 3/4"

1"

3 1/2"

15 7/8"

13 1/8"

13 1/4"

1 1/2"



dimensions-pump-centrac-b-v2

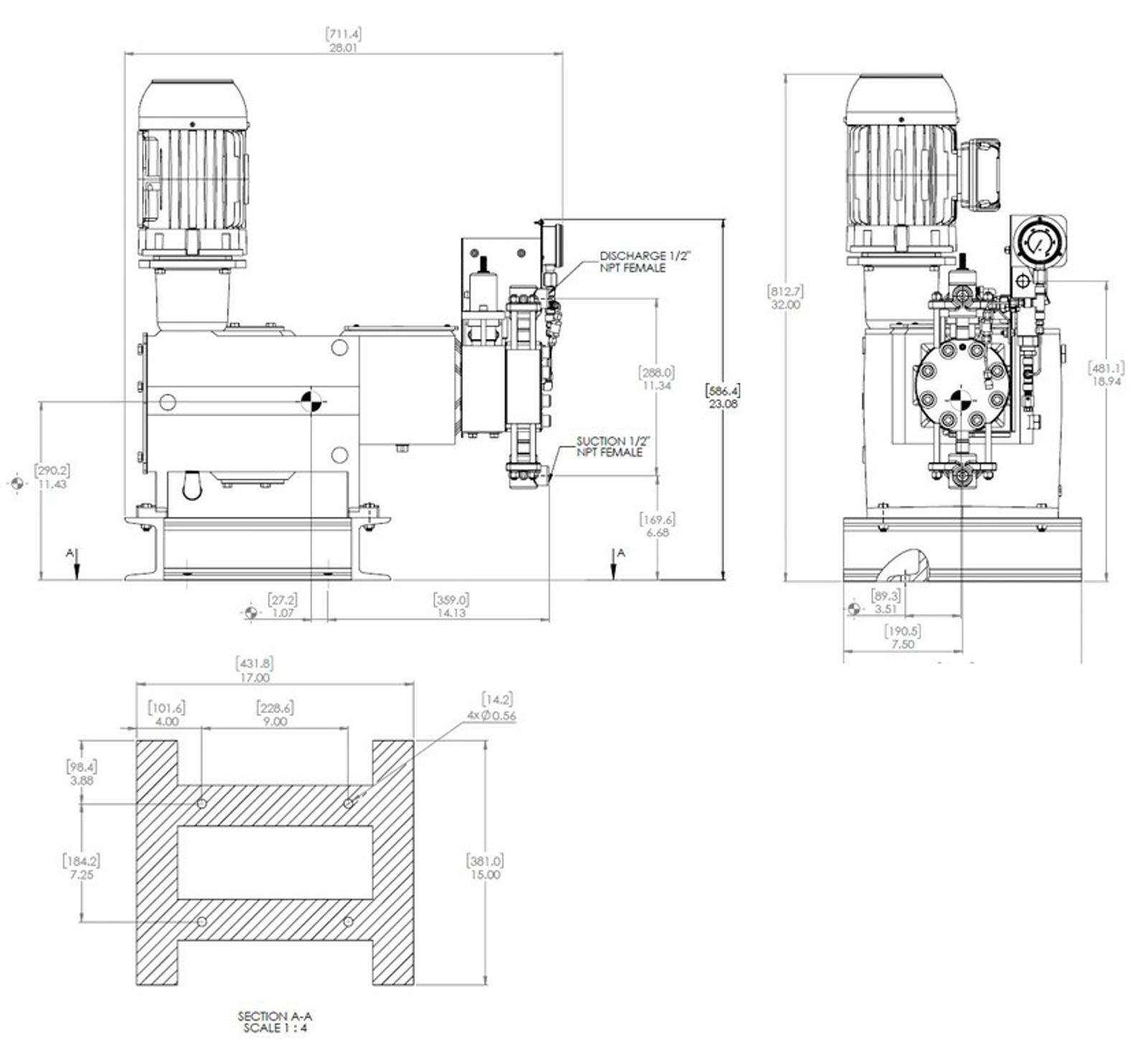

Centrac B Pump low flow model shown with special Centrac S anchor bolt base

dimensions-pump-centrac-b-v3

Applications


Municipal drinking/wastewater plants

Coagulation/flocculation (injection of ferric chloride, aluminium sulphate, etc.), pH regulation (injection of acids and alkalis), water conditioning before and/or after RO treatment in desalination plant

Industrial water treatment

protection of installation such as boilers and hydraulic systems (corrosion inhibitors, biocides, scale inhibitors, amines…)

Chemistry/Petrochemistry

injection of additives, injection of co-catalyst, injection of sulphuric acid into water to produce diluted sulphuric acid

Learn more about industries

Refinery/Downstream

Injection of chemicals for separation and treatment of refined products, injection of paraffin inhibitor into fuel storage tanks

Oil & Gas

injection of biocide, corrosion/scale inhibitors, H2S scavengers… protecting piping and other assets and maintaining production rates, transfer of steam condensate

Food and beverage industry

Injection of enzymes in starch production, injection of caustic soda for process water neutralization in refining and distilling applications
