Pinch Valves | PIC Series

The pinch valve is a cost-effective, robust solution for controlling the flow of liquids, gases, powders, and slurries. It is simple to install, requires minimal maintenance, and ensures a totally leak-proof seal when closed. Unlike traditional valves, pinch valves have no mechanical parts in contact with the fluid, making them ideal for abrasive, corrosive, or viscous media.

Milton Roy offers a complete range of full-bore pinch valves designed for demanding industrial environments.

Our valves are available in cast iron, aluminum, and PVC versions, with sleeves reinforced for durability under extreme conditions.

How sleeve valves work?

The automatic elastic deformation valve consists of a valve body and a cylindrical sleeve covered with natural or synthetic rubber. It is normally open.

The valve is closed by applying pressure between the body and the sleeve using a fluid, usually compressed air (which can be replaced by pressurized water). Under the action of this fluid, the sleeve collapses in a preferred direction, achieved by a judicious arrangement of the fabric, thus allowing complete closure.

Advantages of our sleeve valves

Full-bore design

No pressure losses or risk of obstruction

Complete closure

Even in the presence of solid particles, gases, powders, and liquids.

Long sleeve life

Our sleeves are reinforced with incorporated fabrics and are available in 3 grades

No risk of leakage

Into the environment due to the absence of a gland

Protection of the installation

Water hammer is prevented when the valve is closed and opened

Simple installation

		DN 20 ⁽¹⁾	DN 40 ⁽²⁾	DN 50 ⁽²⁾	DN 65⁽²⁾	DN 80⁽²⁾	DN 100⁽²⁾	DN 125 ⁽²⁾	DN 150 ⁽²⁾⁽⁴⁾	DN 200 ⁽²⁾⁽⁴⁾	DN 250 ⁽²⁾⁽⁴⁾	DN 300 ⁽²⁾⁽⁴⁾
A	Cast iron or 316 L SS flanges (mm)		150	180	180	220	276	345	414	550	680⁽³⁾	820⁽³⁾
J	Cast iron or 316 L SS flanges (mm)		26 27.2	27 28.2	28 29.2	30 31.2	36 37.2	48 49.2	52 53.2	65 66.2	88.5	104
Ø C			Rp3/8"	Rp3/8"	Rp3/8"	Rp3/8"	Rp3/8"	Rp3/8"	Rp3/8"	Rp3/8"	Rp3/4"	Rp3/4"
Ø H	(mm)		150	165	185	200	220	250	285	340	405	485
L	(mm)		54.5	73	76.5	90	110	134	160	223	254	321
	Volume of control fluid	(liters)	0.2	1	1	2	3.5	7	12.5	29	37	67
	Connecting flanges	Standard	PN 10 DN 40 -	PN 10 DN 50 -	PN 10 DN 65 -	PN 10 DN 80 -	PN 10 DN 125 or 5"-ANSI 150	PN 10 DN 150 or 6"-ANSI 150	PN 10 DN 150 or 6"-ANSI 150	PN 10 DN 200 or 8"-ANSI 150	PN 10 DN 250 or 10"-ANSI 150	PN 16 DN 300 or 12"-ANSI 150
	Connecting flanges	Optional	2" ANSI 150	2" ANSI 300	2 1/2" ANSI 150	3" ANSI 150	4" ANSI 150	-	-	-	-	-

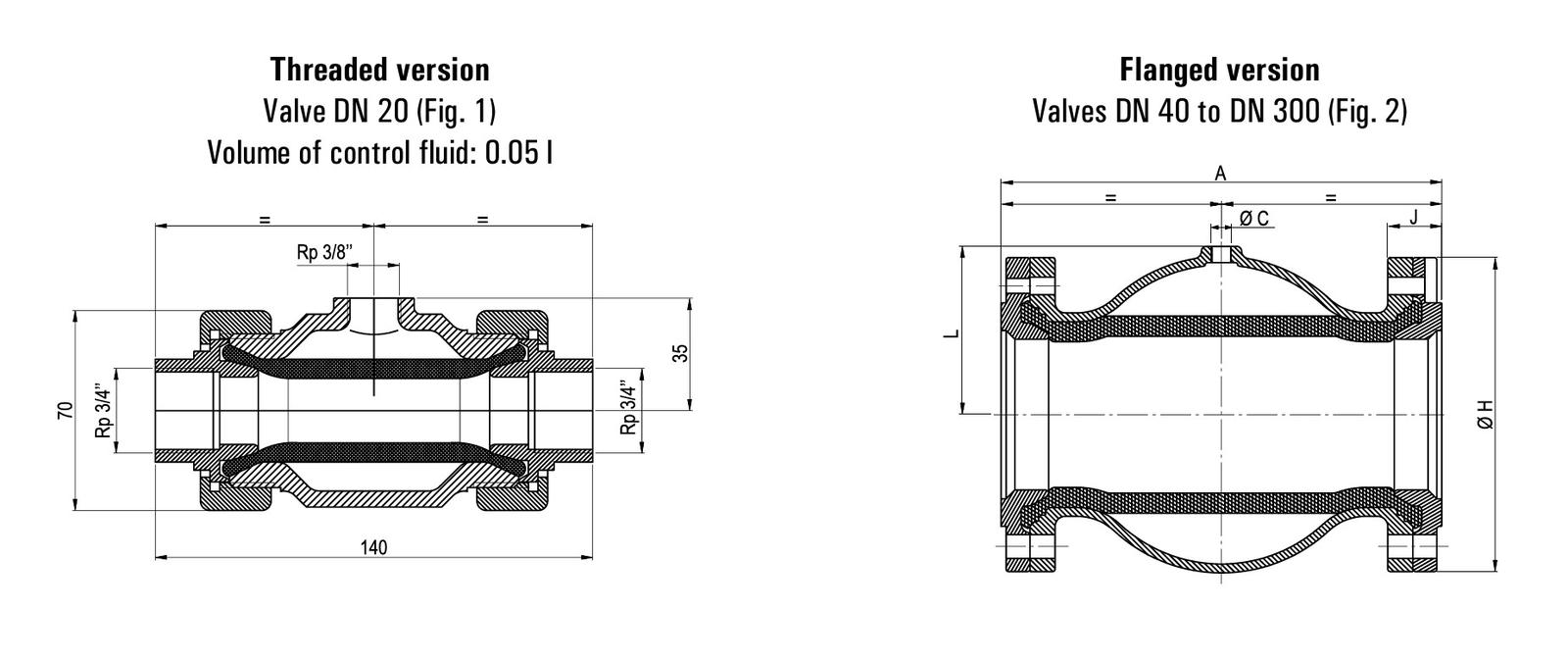

⁽¹⁾ See Fig. 1

⁽²⁾ See Fig. 2

⁽³⁾ Cast iron flange only

⁽⁴⁾ Valves in accordance with the European under pressure devices directive 97/23/CE

DN	Net weight (kg)	Packing (mm)
20	1.5	260 x 160 x 150
40	6	200 x 200 x 200
50	8	200 x 200 x 200
65	10.5	200 x 200 x 200
80	13	280 x 280 x 370
100	12	280 x 280 x 370
125	17	280 x 280 x 370
150	25	355 x 355 x 575
200	53	515 x 465 x 720
250	85	515 x 465 x 720
300	147	800 x 600 x 900

Connect with our experts

Find local Milton Roy representative

Applications

Thanks to their characteristics, Milton Roy elastic deformation sleeve valves have the advantage of being suitable for a wide range of industries and applications: liquids, suspensions, granules, pastes, etc.

Acids

Hydrochloric, nitric, sulfuric, hydrofluoric, etc.

Bases

Soda, ammonia, potash, phosphates, sodium bicarbonate, etc.

Viscous or abrasive liquids

Seawater, wastewater, lime milk, paper pulp, paint, sludge, soot, clay paste, etc.

earn more about industries

Powders

Cement, flour, sand, talc

Food liquids

Beer, wine, cocoa butter, edible oils, beet juice, milk, sugar, syrups, etc.

Other fluids

Water treatment reagents, organic solvents, fertilizers, etc.

FAQ

A pinch valve is a flow control device that uses an elastomer sleeve to regulate or stop fluid flow. It is ideal for handling corrosive, abrasive, or viscous media because the sleeve is the only part in contact with the fluid. Milton Roy pinch valves are full-bore, leak-proof, and designed for industrial applications.
