The POWEROYAL positive-displacement reciprocating pump provides outstanding performance in demanding conditions. Ideal for high-pressure/high-volume applications, the pump has been designed for maximum performance in minimal space.
Powered to constantly move liquid within a fixed volume, this API674-compliant pump can handle acids, bases, corrosives, viscous liquids and abrasive fluids. The POWEROYAL pump is available in three models to meet your capacity needs: PTX, PTA, and PTB.
Innovative Lubrication System
Low-speed oil injection reduces replacement needs and helps extend overall pump life while improving reliability.
Self-Lubricating Design
Oil is automatically splashed throughout the drive end, eliminating the need for external lubrication in standard operation.
Lower Operating Costs
Reduced lubrication oil consumption helps minimize maintenance requirements and lower running expenses.
Advanced Dual Helical Gear Reducer
Eliminates thrust loads and extends bearing life while ensuring smooth, accurate power transmission.
Built for Heavy-Duty Performance
Features a floating crankshaft, self-aligning reducer, double-row rollers, and tapered bore bearings for demanding applications.
Maximum Durability & Efficiency
Constructed from high-quality materials and engineered to reduce friction, stress, and wear for longer service life.
All Poweroyal pump models meet API674 standards.

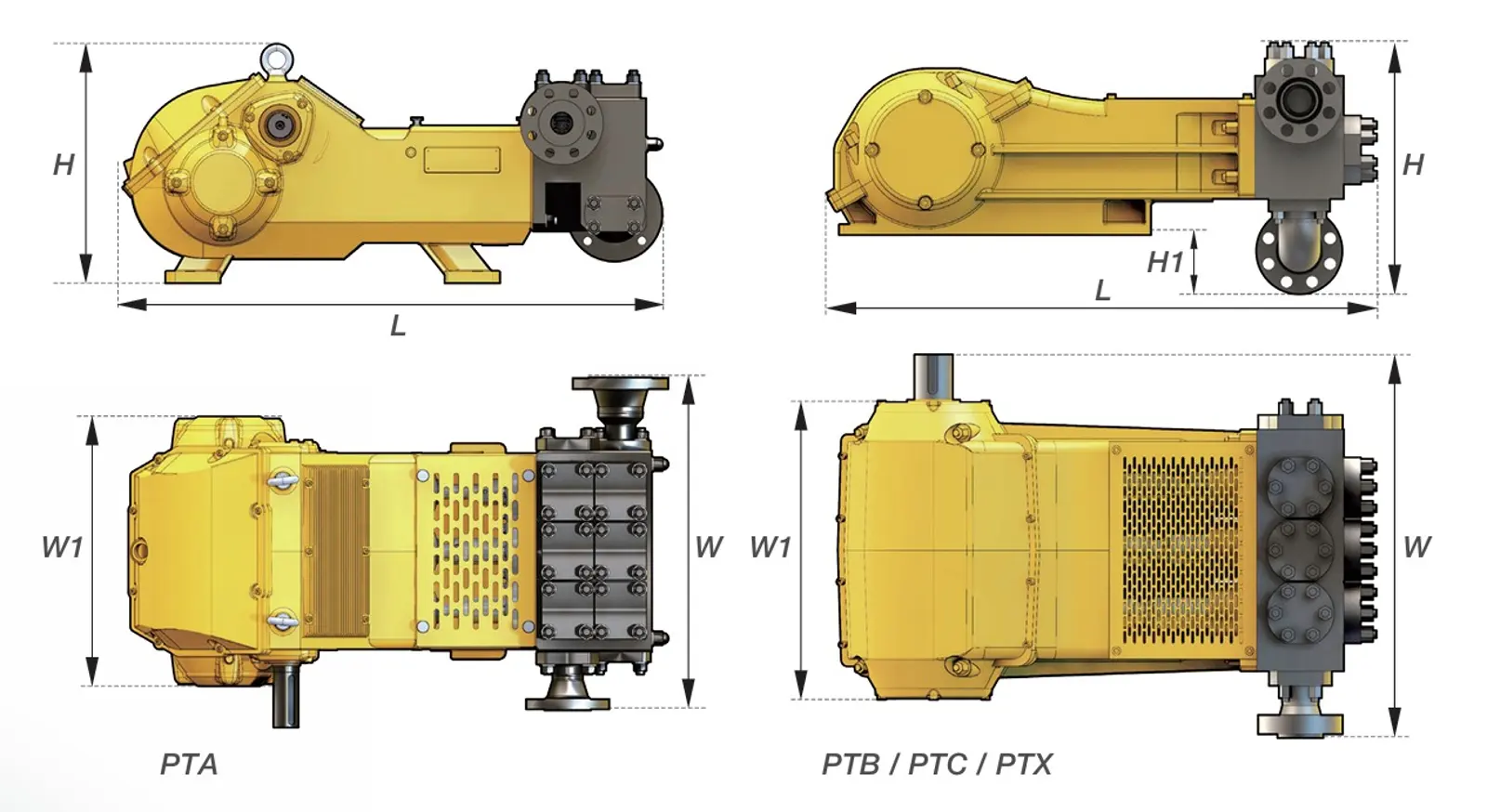

MODEL | PTX | PTA | PTB | PTC |
|---|---|---|---|---|
mm (in.) | ||||
Length | 860 (33.9) | 1100 (43.3) | 1600 (63.0) | 1980 (78.0) |
Width | 575 (22.6) | 700 (27.6) | 1000 (39.4) | 1400 (55.1) |
Height | 375 (14.8) | 460 (18.1) | 600 (23.6) | 960 (37.8) |
Width 1 | 420 (16.5) | 540 (21.3) | 640 (25.2) | 1060 (41.7) |
Height 1 |
|
|
| 200 (7.9) |

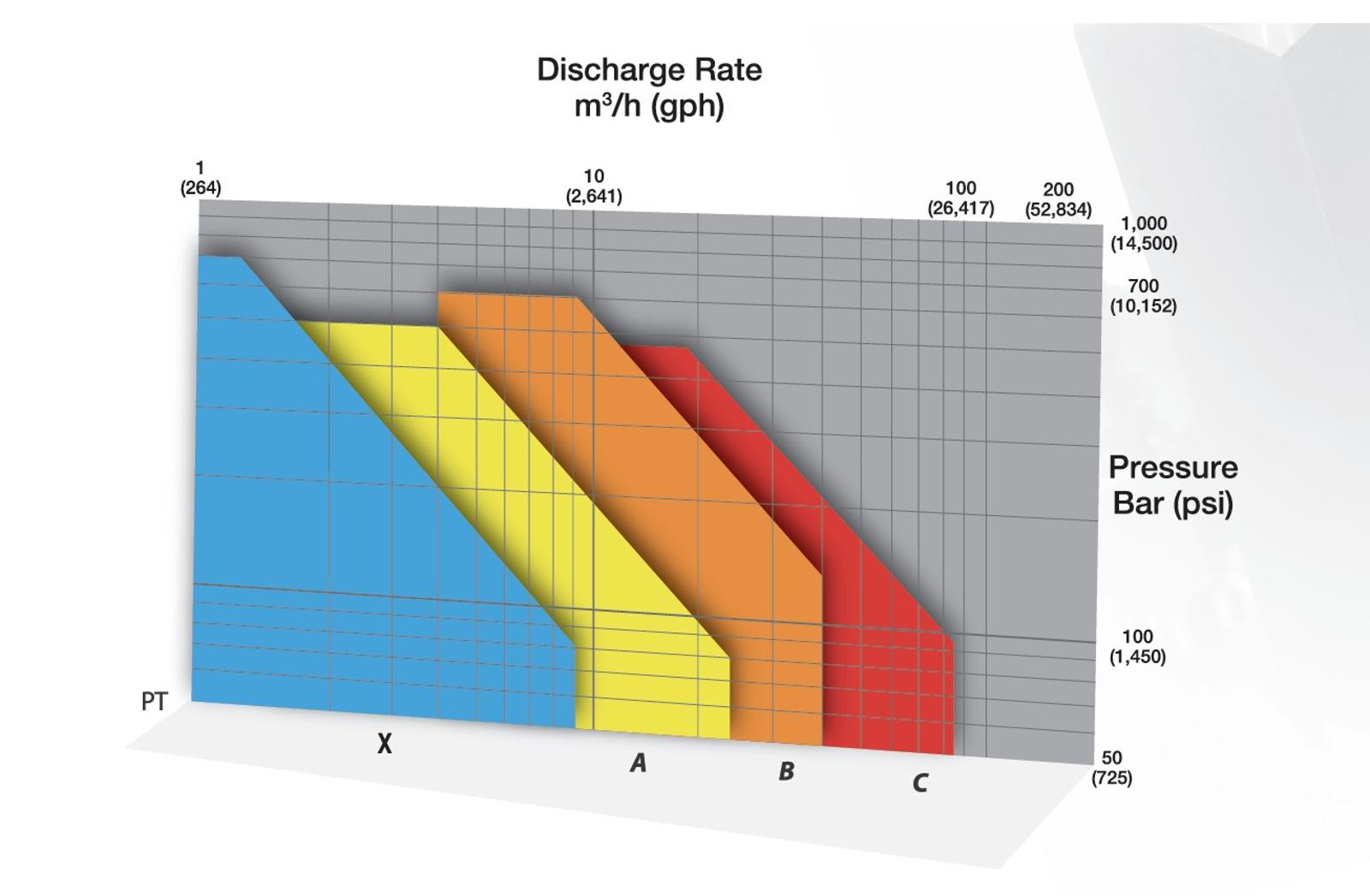

- The maximum discharge rate of standard design: 124,000 l/h (32,757 gph)
- The maximum discharge pressure of standard design: 700 bar (10,152 psi)
- The maximum motor power: 315 kW (422 HP) W
- Operating temperature range: -30° to 150° C (22°F to 302°F)
Applications
Oil and Gas
Glycol injection, amine sweeting, methanol injection, CO2 injection, oil transporting, crude oil, gas dehydration, fracking, water or polyacrylamide (PAM) injection, and hot-water injection
Hydrocarbon processing industries (HPIs) and chemical processing industries (CPIs)
Flush and desalting waters in refineries, condensate handling, and carbamate and ammonia fertilizers
Piping and equipment protection
Injection of corrosion inhibitor, biocide, scale inhibitor
Other industries
LLDPE manufacturing, HP diluent pump, bitumen transfer
