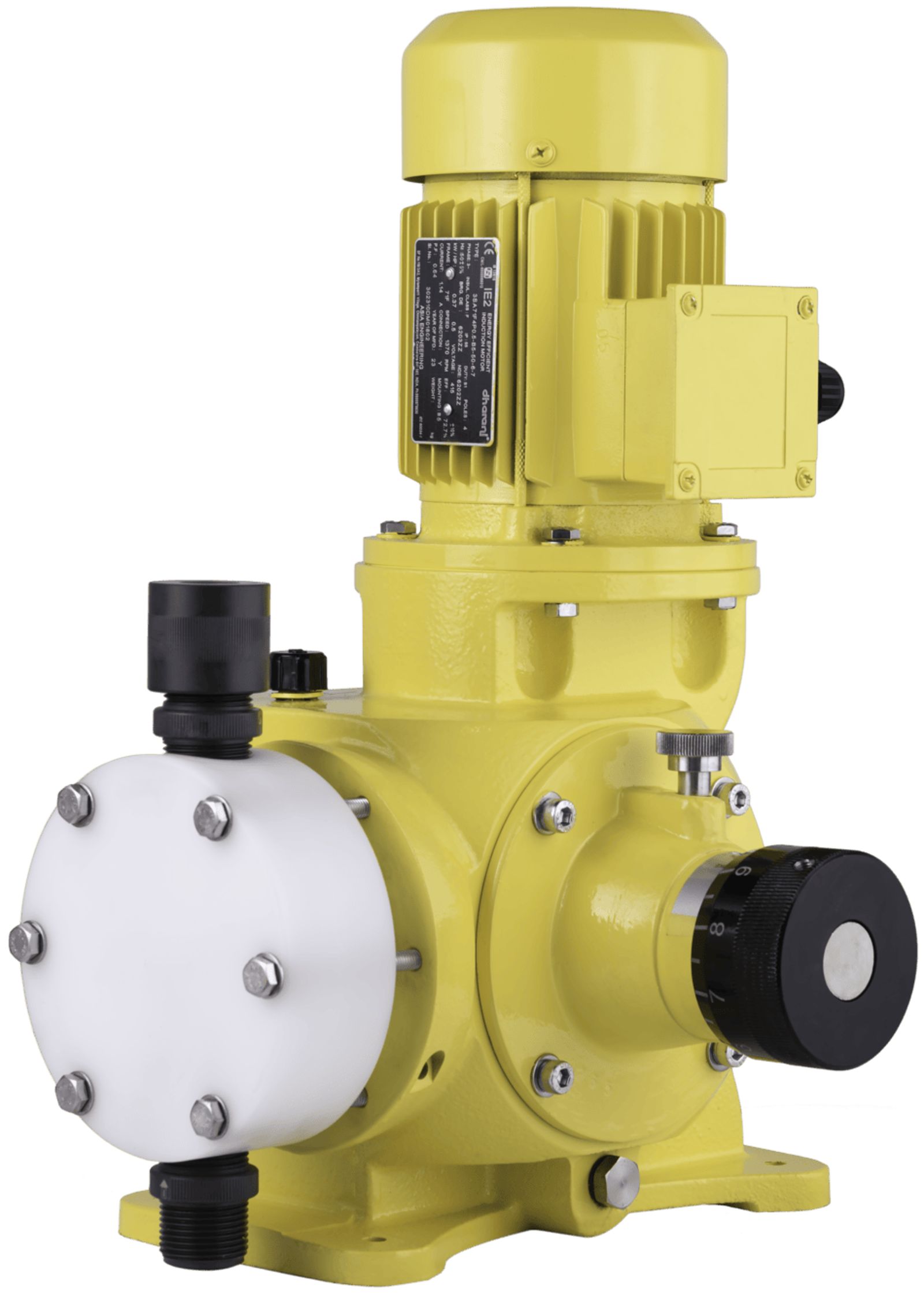

Hydraulically Actuated Diaphragm Pump Series GB

Mechanically Actuated Diaphragm Pump

Request a Quote Request Service, Parts or Support

Overview

Stroke adjustment by variable eccentric
Low pulsations (without hydraulic shocks)
Few mechanically moving components : low maintenance
Superior imported Gylon diaphragm for longer life
Oil bath lubrication for all drive components
Precision stroke adjustment by lock able icrometer

Benefits

Simplicity of design. The pump has few moving parts and is compact and lightweight.
Greater flexibility. G series pumps feature a variable eccentric drive with stroke adjustment. It is available in three frame sizes and can accommodate a wide selection of liquid ends.
Rugged performance. Corrosion-resistant plastic or aluminum housing is designed to withstand tough environments while its high-efficiency motors minimize heat buildup.
Long-term cost benefits. This reliable pumps requires minimal maintenance, reducing overall pump lifecycle costs.
Now NSF / ANSI 61 and 372 certified for municipal compliance and safety assurance

Specifications

Performance by the numbers:

Pressures up to 175 psi (12 bar)
High flow rates up to 310 gph (1181 l/h.)
Steady-state accuracy – ± 1% of full capacity over the standard 10:1 turndown ratio
Now NSF / ANSI 61 and 372 certified for municipal compliance and safety assurance

Applications

Ideal for lower pressure processes

Now with NSF / ANSI 61 and 372 certification for municipal compliance and safety assurance. The G-Series or MACROY metering pumps are perfect for chemical dosing in water and waste treatment facilities, industrial process, agriculture, and many more applications. These pumps reliably inject chemicals such as ferric chloride, aluminum sulfate, polymers, alkalis, sodium hydroxide, acids, anti-scaling and anti-foaming agents and many more for coagulation/flocculation, slurry treatment, pH control and adjustment, and desalination.
