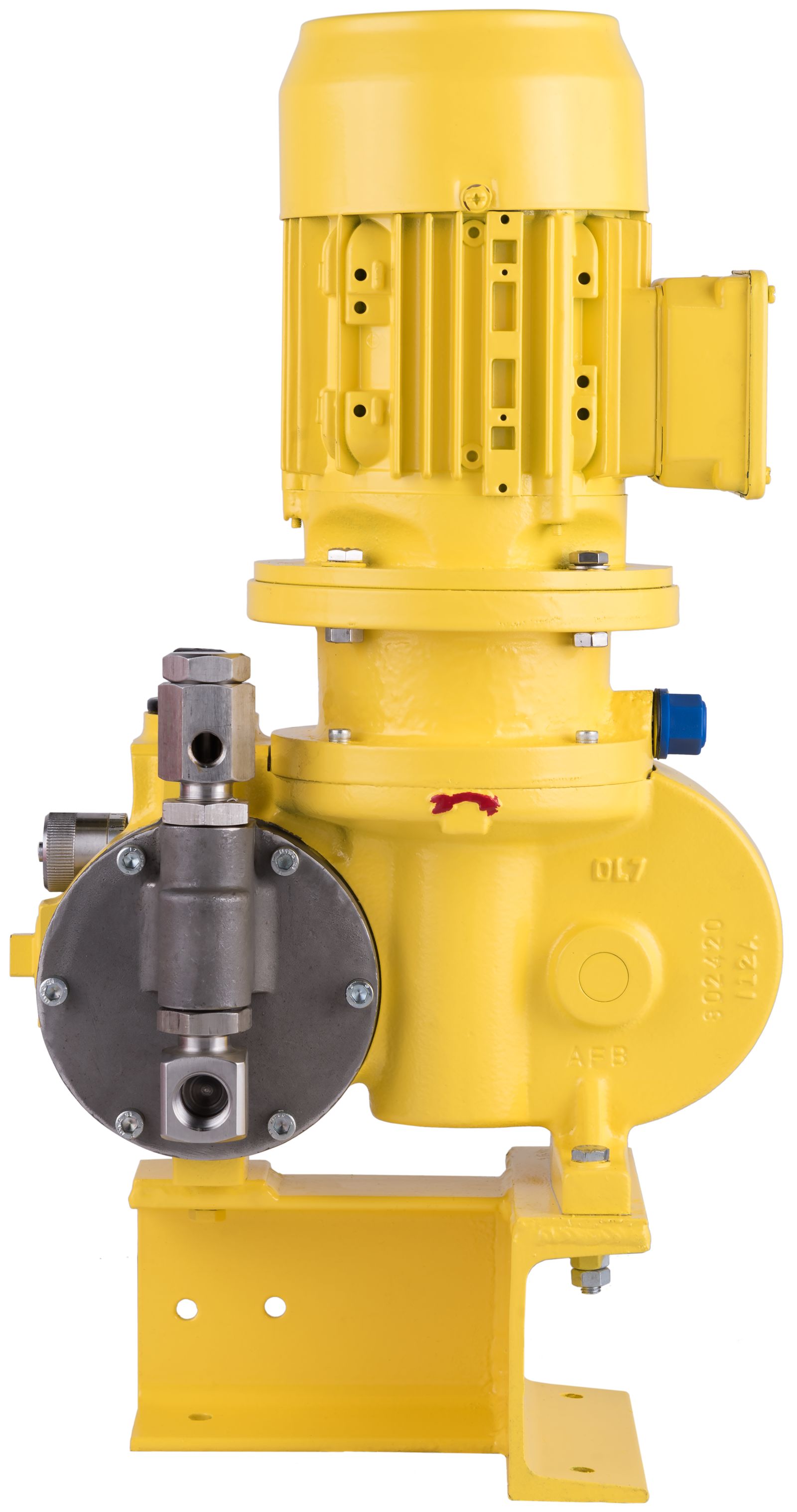

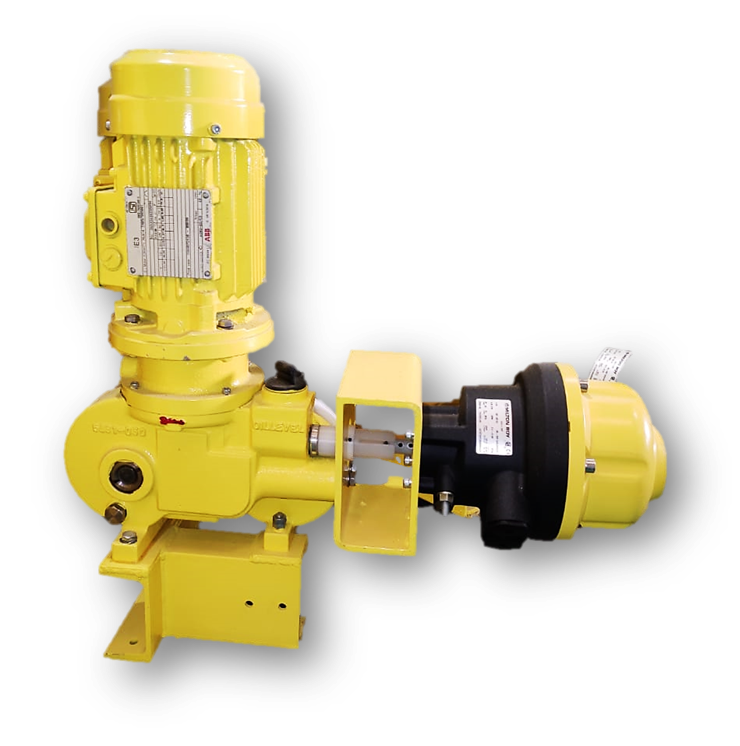

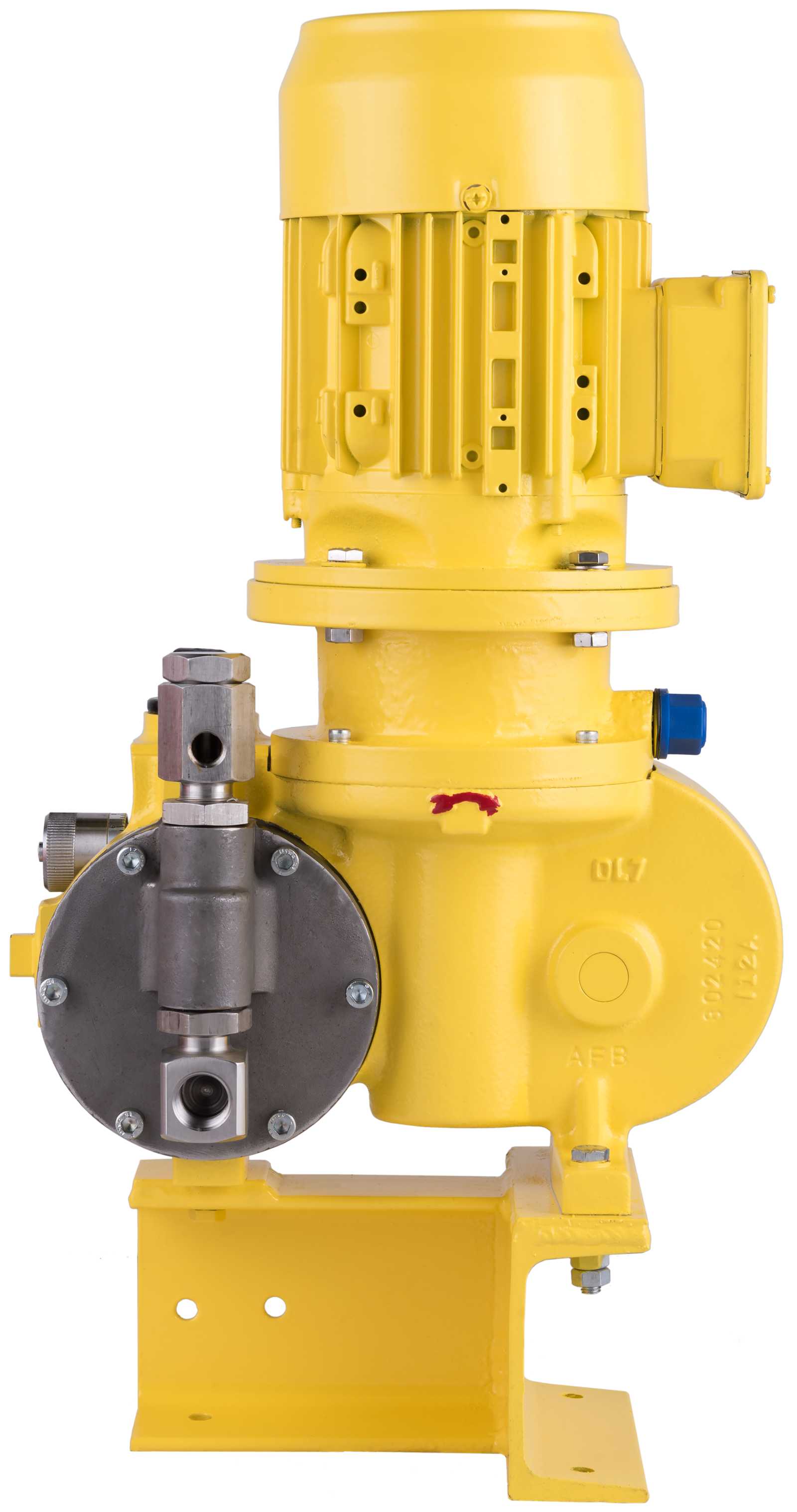

m-ROY Pump Series

• Hydraulically actuated PTFE diaphragm
• Conforms to API 675
• Max flow rate:
  • Up to 94 L/h (metallic liquid end, lower pressure range)
• Max pressure:
  • Up to 126 kg/cm²g (metallic liquid end)
  • Up to 10 kg/cm²g (plastic liquid end)
• Flow rate adjustment while running: 0–100%
• SteadyState accuracy: ±1% of rated capacity
• Repeatability: ±3% of rated capacity
• Turndown ratio: 10:1
• High efficiency, hydraulically actuated diaphragm for long service life
• Precision check valves for reliable sealing
• Adjustable internal hydraulic relief valve for pump protection
• Maximum suction pressure: 6 kg/cm²g
• Maximum liquid temperature:
  • +90 °C (metallic liquid end)
  • +45 °C (plastic liquid end)

The m‑ROY Series is available in multiple model variants to suit different capacity and pressure requirements:

• mROY A Series – Compact, high-pressure dosing
• mROY B Series – Higher capacity, heavy duty operation
• mROY H Series – High pressure precision applications
• m‑ROY P Series – Specialized configurations for demanding duties

Each series is available with metallic or plastic liquid ends, depending on pressure and chemical compatibility requirements.
