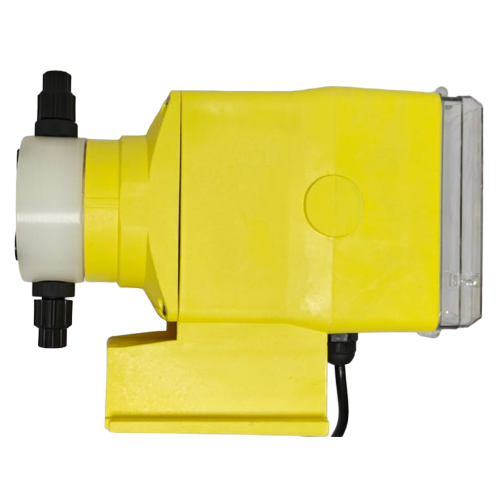

Dosing Pump Series – A 2

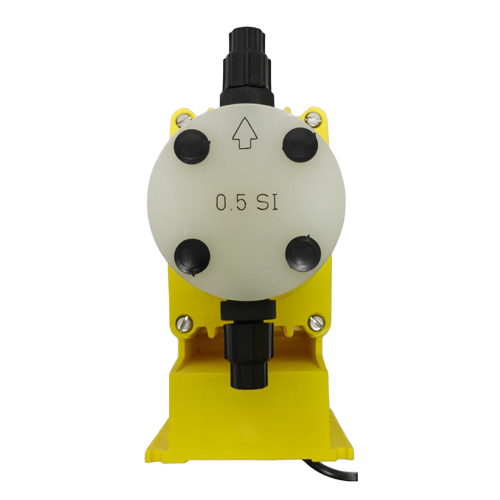

Dosing Pump Series – A 3
Dosing Pump Series – A
Dosing Pump Series – A 1
Dosing Pump Series – A 2
Dosing Pump Series – A 3
Back to the product list

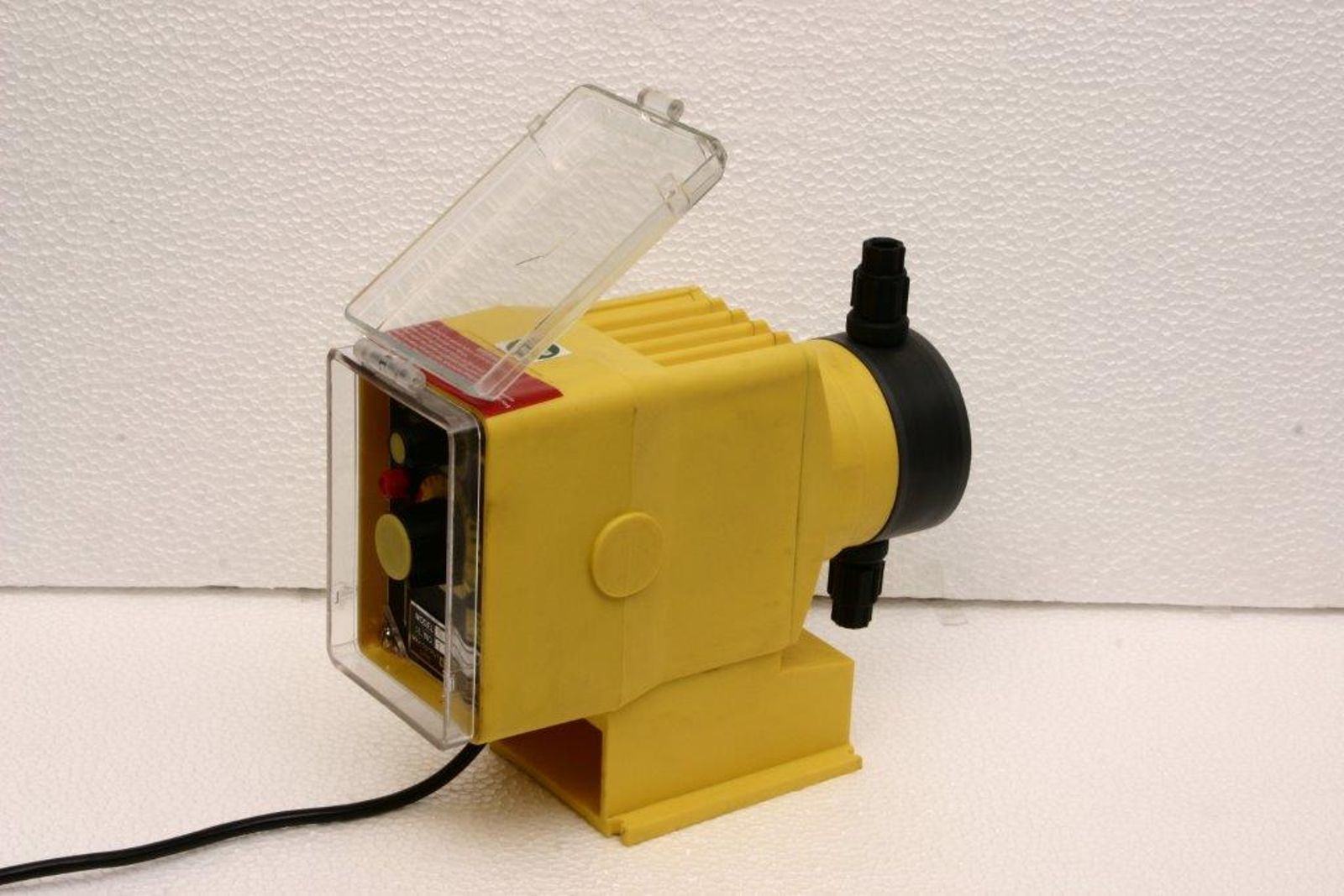

Dosing Pump Series – A

  • Maximum Flow Rate: 12 l/h
  • Maximum Pressure: 12 kg/cm2g
  • Electro Magnetically Actuated Diaphragm

The Milton Roy EMAG Series A delivers precise, reliable chemical dosing in a compact, energy-efficient design built for water treatment and industrial processes.

With flow rates up to 12 L/h, ±2% accuracy, and durable PTFE-faced Hypalon diaphragm technology, it ensures leak-free, long-lasting performance.

Multiple liquid end materials enhance chemical compatibility, while manual/automatic control and optional 4–20 mA integration (9 Series) provide seamless adjustability and smart automation for consistent, high-quality dosing.

Standard:

  • Max Flow rate: 12 l/h
  • Max Pressure: 12 kg/cm2g
  • Manual/automatic speed control is adjustable while running or stopped.
  • Electronically operated, mechanically actuated diaphragm
  • Manual stroke length is adjustable while running
  • Electro Magnetic Drive: Less moving parts
  • Composite PTFE-faced Hypalon Diaphragm for longer life
  • Adjustment of flow rate while running or stopped: 0 to 100%
  • Accuracy: ±2% of rated flow from 10% to 100% stroke
  • Suction lift: Up to 1.5 m water max.
  • Viscosity handled: Up to 50 cps

Standard Drive Data:

  • Electromagnetic Power Unit (EPU) 230V, 50Hz, Single Phase A.C
  • Power Consumption Approx. 40 Watts.
  • “9” series are automated pumps (i.e., 4.20mA)



Components

Materials

Liquid end body

PP

PVC

PVDF

SS-316

Valve Body

PVC

PVC

PVDF

SS-316

Ring Seal

TEFLON

TEFLON

TEFLON

TEFLON

Balls

CERAMIC

CERAMIC

CERAMIC

CERAMIC

Connections

PVC

PVC

PVDF

SS-316

Diaphragm

TEFLON FACED HYPALON

TEFLON FACED HYPALON

TEFLON FACED HYPALON

TEFLON FACED HYPALON

Foot Valve

PVC

PVC

N/A*

SS-316

Antisyphon Valve

PVC

PVC

PVDF

SS-316

Tubing

LDPE

LDPE

LDPE

LDPE



A wide range of installation accessories is available on request—including pulsation dampeners, safety valves, and backpressure valves. Please consult us for selection and specifications.

Accessories

Accessories, Discover Milton Roy calibration columns, valves and pulsation dampeners



Pump Model

Flow max. (l/h)

Pressure max. (KG/CM2)

Size of Tubing (Suction & Discharge)

Min (l/h)

Max (l/h)

A-09, A-79, A-99

0.02

1

12

3/8” x ¼”

A-10, A-70, A-90

0.04

2

10

3/8” x ¼”

A-11, A-71, A-91

0.08

4

5.5

3/8” x ¼”

A-12, A-72, A-92

0.12

6

3.5

3/8” x ¼”

A-13, A-73, A-93

0.24

12

2

3/8” x ¼”





Liquid End

Weight (kg)

Metallic

4.5

Plastic

3.5



Emag India - Series A Catalog.pdf
