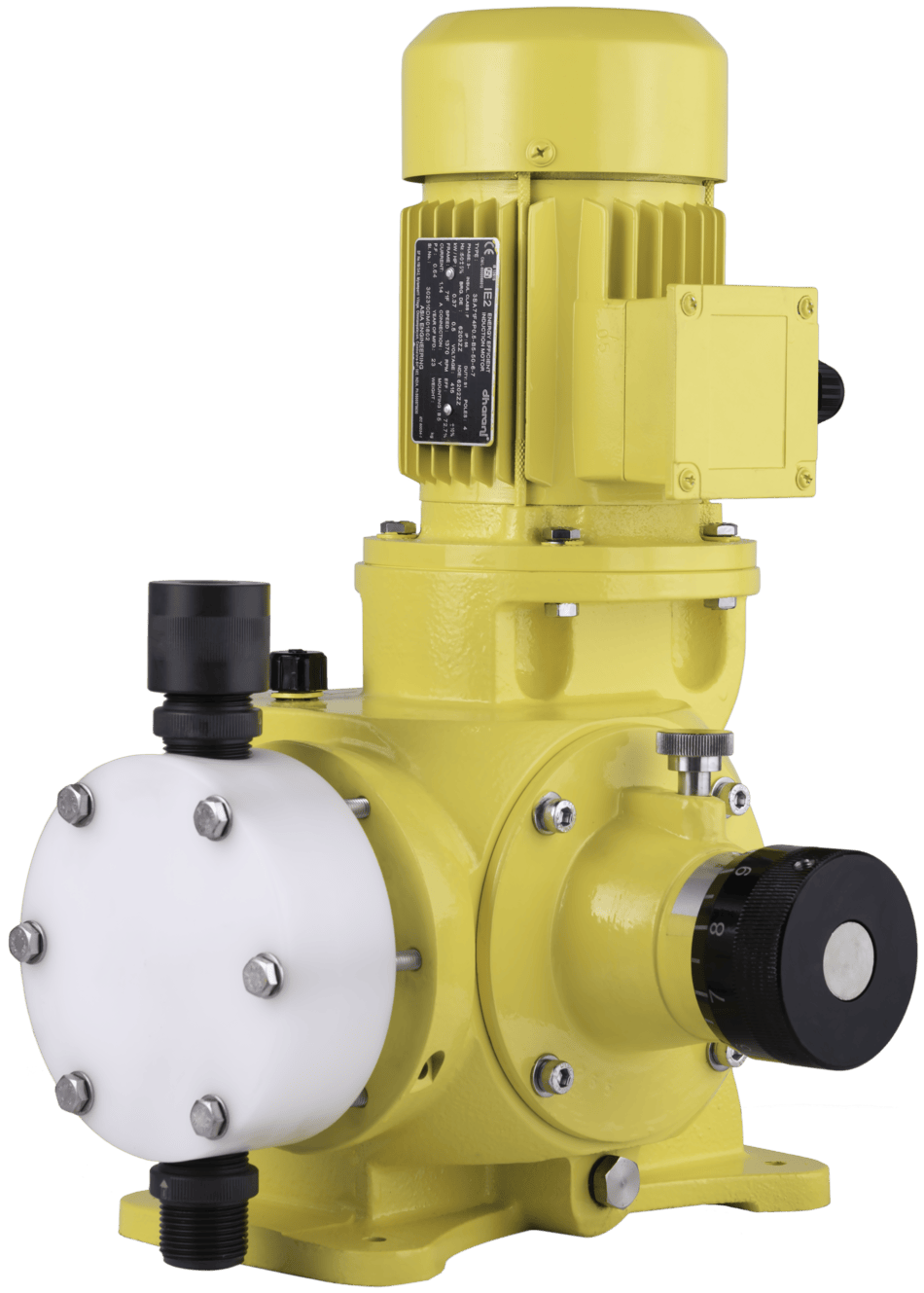

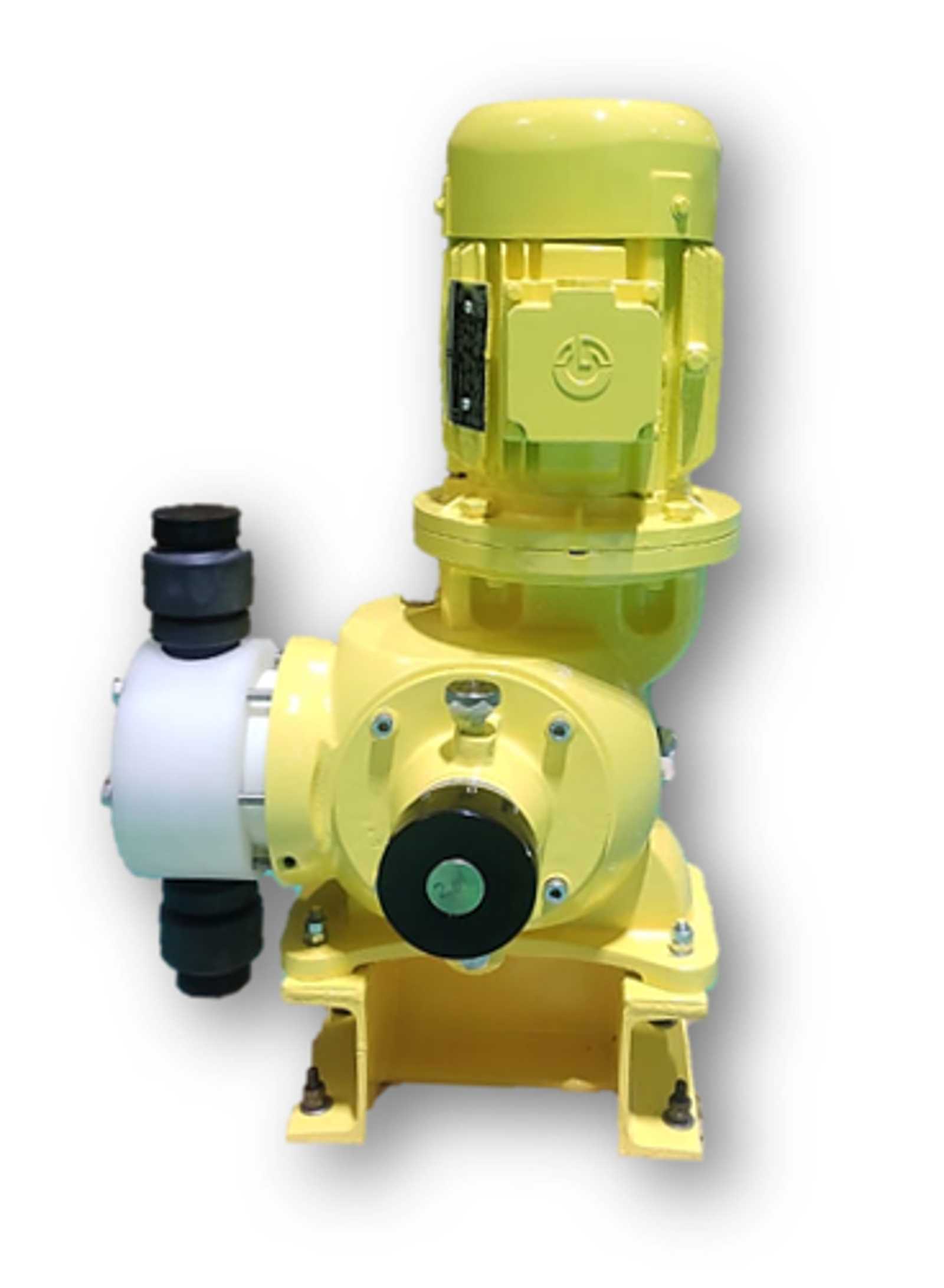

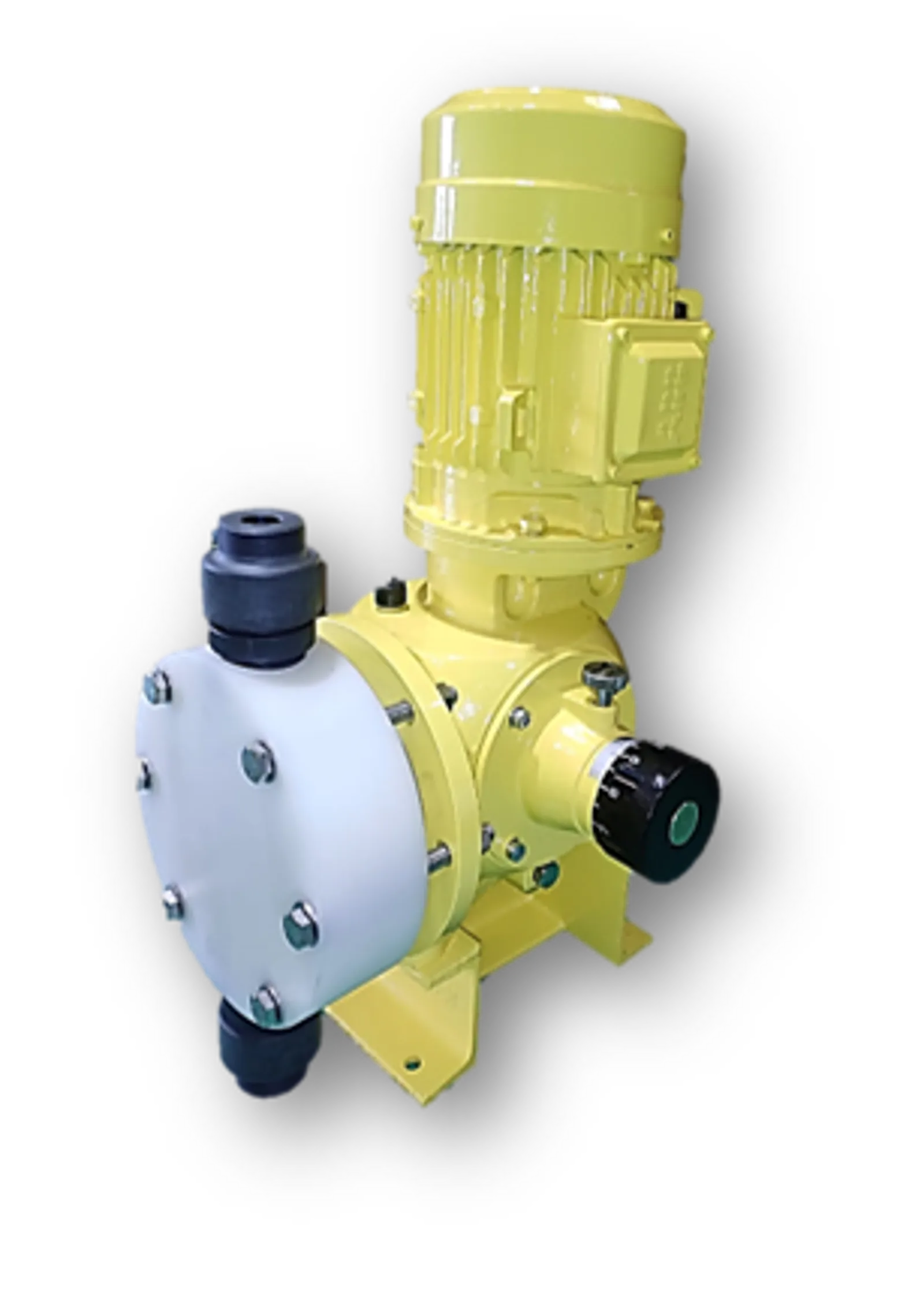

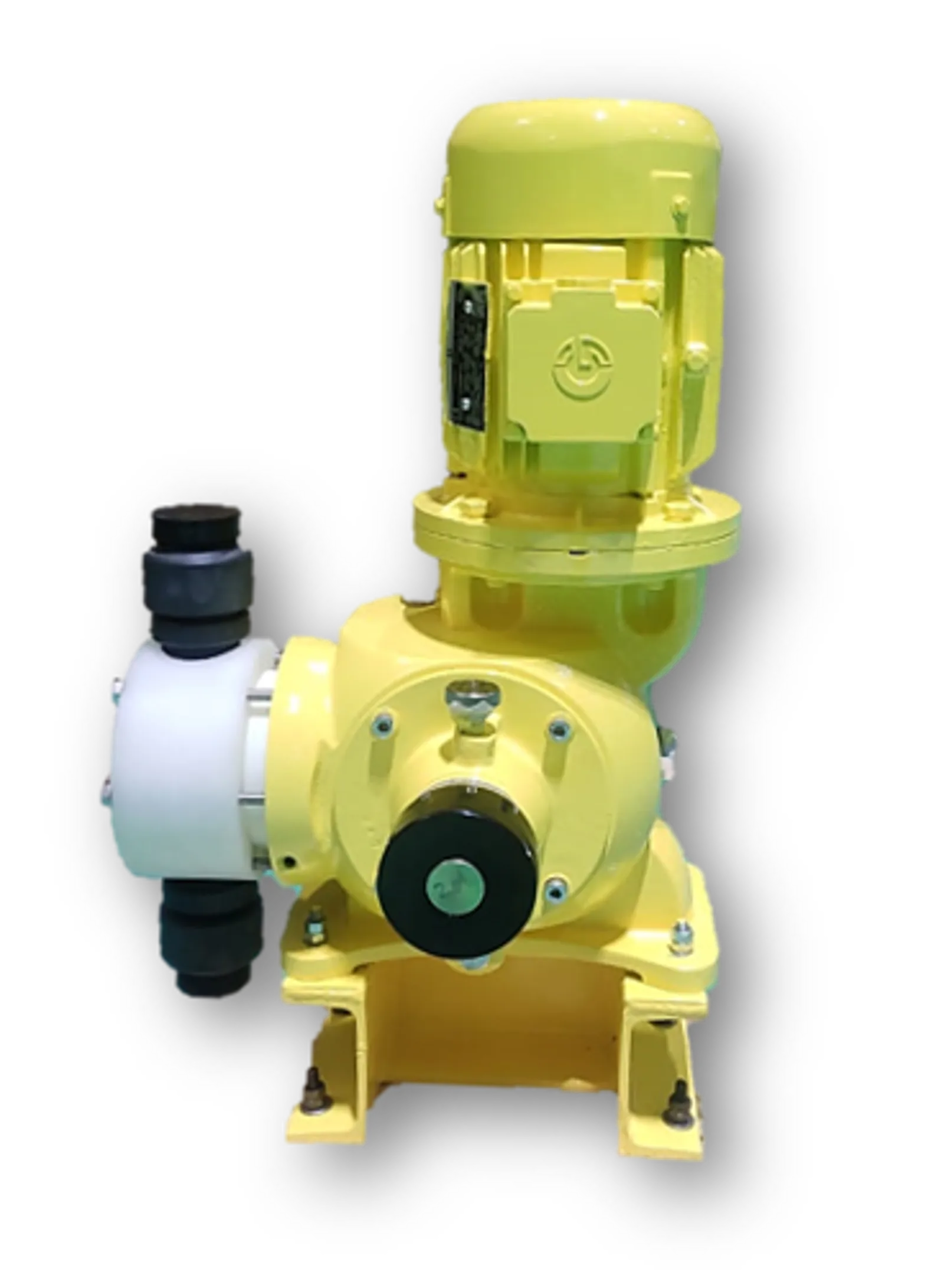

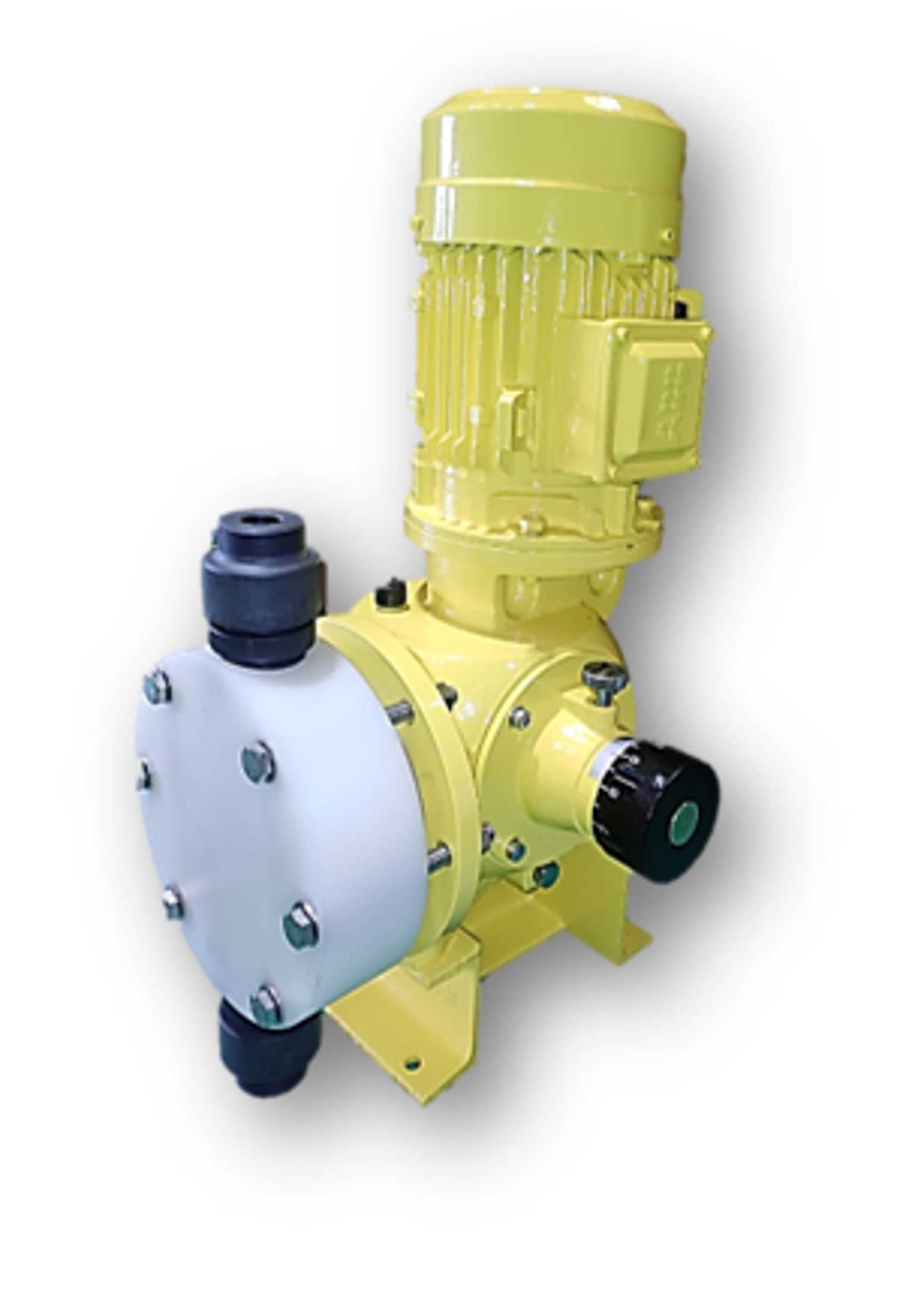

Designed for demanding applications, this pump delivers a flow rate up to 1800 l/h and handles pressures up to 10 kg/cm²g, ensuring reliable high-capacity operation.
Provides high dosing precision (±1%) with adjustable flow from 0–100% during operation, maintaining accuracy even from 10% to 100% stroke.
Equipped with a high-efficiency PTFE diaphragm and mechanical actuation, ensuring long service life, chemical resistance, and consistent performance.
Features variable eccentric stroke adjustment, significantly minimizing pulsation and shock, improving system stability and equipment protection.
Capable of handling fluids with viscosity up to 2400 cPs, temperature up to 50°C, and includes configurable valve balls (Glass/Teflon) based on process requirements.
Includes suction lift up to 2.5 m, oil bath lubrication, simplex configuration, and a 10:1 turndown ratio, ensuring steady and efficient performance across varying conditions.
Components | Materials | |||
|---|---|---|---|---|
Liquid end body | PP | PVC | CF8M | PVDF |
Valve body | PVC | PVC | SS-316 | PVDF |
Seats | PVC | PVC | SS-316 | PVDF |
Balls | TEFLON | TEFLON | SS-316 | TEFLON |
Connections | PVC | PVC | SS-316 | PVDF |
Diaphragm | PTFE | PTFE | PTFE | PTFE |
PRV | PVC | PVC | SS-316 | PVDF |
Y-Strainer | PP | - | SS-316 | - |
Online Strainer | - | PVC | - | PVDF |
Antisyphon valve | PVC | PVC | SS-316 | PVDF |
Standard Motor Data:
Options:
Pump model | Flow max. (l/h) | Pressure max. (kg/cm2g) | Stroke speed (spm) | Motor Pole | Motor power (kW) | End Connections (Suction & Discharge) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
@50hz | @60hz | 0.37 kW | 0.75 kW | @50HZ | @60HZ | Plastic Head | Metallic Head | |||

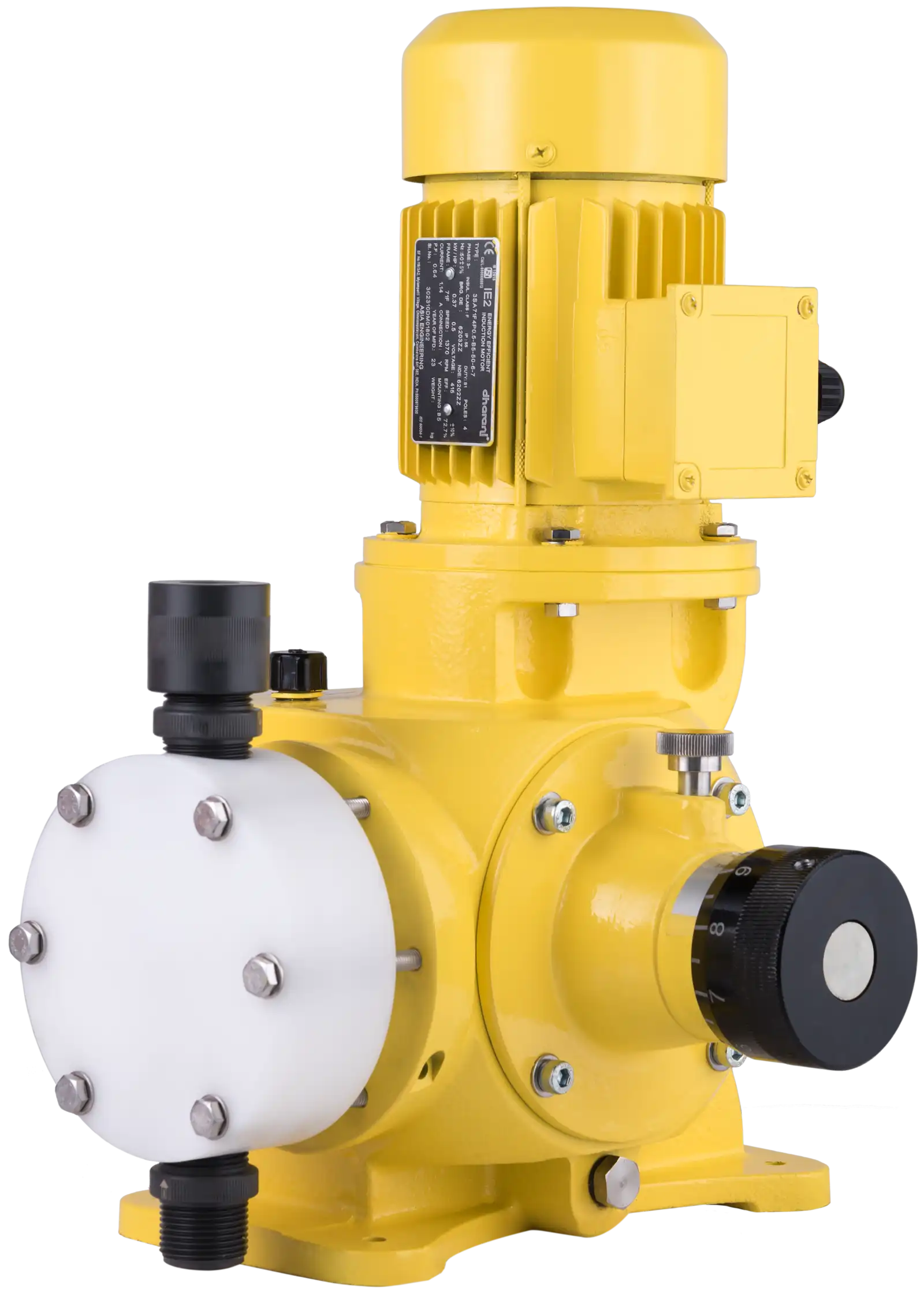

GB401 | 75 | 90 | 8 | 10 | 36 | 43 | 4P | 0.37/0.75 | 1" BSP (M) | 1/2" BSP (F) |
GB401A | 50 | 60 | 8 | 10 | 24 | 29 | 6P | 0.37/0.75 | 1" BSP (M) | 1/2" BSP (F) |
GB402 | 160 | 192 | 8 | 10 | 72 | 86 | 4P | 0.37/0.75 | 1" BSP (M) | 1/2" BSP (F) |
GB402A | 120 | 144 | 8 | 10 | 48 | 48 | 6P | 0.37/0.75 | 1" BSP (M) | 1/2" BSP (F) |
GB403A | 220 | 264 | 8 | 10 | 96 | 115 | 6P | 0.37/0.75 | 1" BSP (M) | 1/2" BSP (F) |
GB403 | 320 | 384 | 5 | 10 | 144 | 173 | 4P | 0.37/0.75 | 1" BSP (M) | 1/2" BSP (F) |
GB404 | 400 | 480 | 5 | 10 | 180 | 216 | 4P | 0.37/0.75 | 1" BSP (M) | 1/2" BSP (F) |
GB603 | 450 | 540 | 3 | 7 | 144 | 173 | 4P | 0.37/0.75 | 1-1/2” BSP (M) | 1" BSP (M) |
GB604 | 560 | 672 | 3 | 7 | 180 | 216 | 4P | 0.37/0.75 | 1-1/2” BSP(M) | 1" BSP (M) |
GB803 | 940 | 912 | - | 3.5 | 144 | 144 | 4P | 0.75 | 1-1/2” BSP (M) | 1" BSP (M) |
GB804A | 760 | 1128 | - | 3.5 | 120 | 173 | 6P | 0.75 | 1-1/2” BSP (M) | 1" BSP (M) |
GB804 | 1175 | 1410 | - | 3.5 | 180 | 216 | 4P | 0.75 | 1-1/2” BSP (M) | 1" BSP (M) |
0.75 kW | 1.10kW | |||||||||
GB805 | 1500 | 1800 | 3 | 5 | 180 | 216 | 4P | 0.75/1.10 | 1-1/2” BSP (M) | 1" BSP (M) |
GB806 | 1800 | NA | 3 | 5 | 206 | NA | 4P | 0.75/1.10 | 1-1/2” BSP (M) | 1" BSP (M) |
Pump model | A±5.0 | B±3.0 | C±2.0 |
|---|---|---|---|
GB40 (SS) | 285.0 | 142.5 | 60.0 |
GB40 (PP) | 231.2 | 115.6 | 62.0 |
GB60 (SS) | 372.0 | 186.0 | 76.0 |
GB60 (PP) | 336.0 | 118.0 | 71.0 |
GB80 (SS) | 414.0 | 207.0 | 98.0 |
GB80 (PP) | 388.0 | 194.0 | 98.0 |
Liquid End | Weight (kg) |
|---|---|
Metallic | 67.0 (Approx.) |
Plastic | 47.0 (Approx.) |
Coagulation/flocculation (injection of ferric chloride, aluminium sulphate, etc.), pH regulation (injection of acids and alkalis), water conditioning before and/or after RO treatment in desalination plant
protection of installation such as boilers and hydraulic systems (corrosion inhibitors, biocides, scale inhibitors, amines…)
injection of additives, injection of co-catalyst, injection of sulphuric acid into water to produce diluted sulphuric acid
Injection of chemicals for separation and treatment of refined products, injection of paraffin inhibitor into fuel storage tanks
injection of biocide, corrosion/scale inhibitors, H2S scavengers… protecting piping and other assets and maintaining production rates, transfer of steam condensate
Injection of enzymes in starch production, injection of caustic soda for process water neutralization in refining and distilling applications
