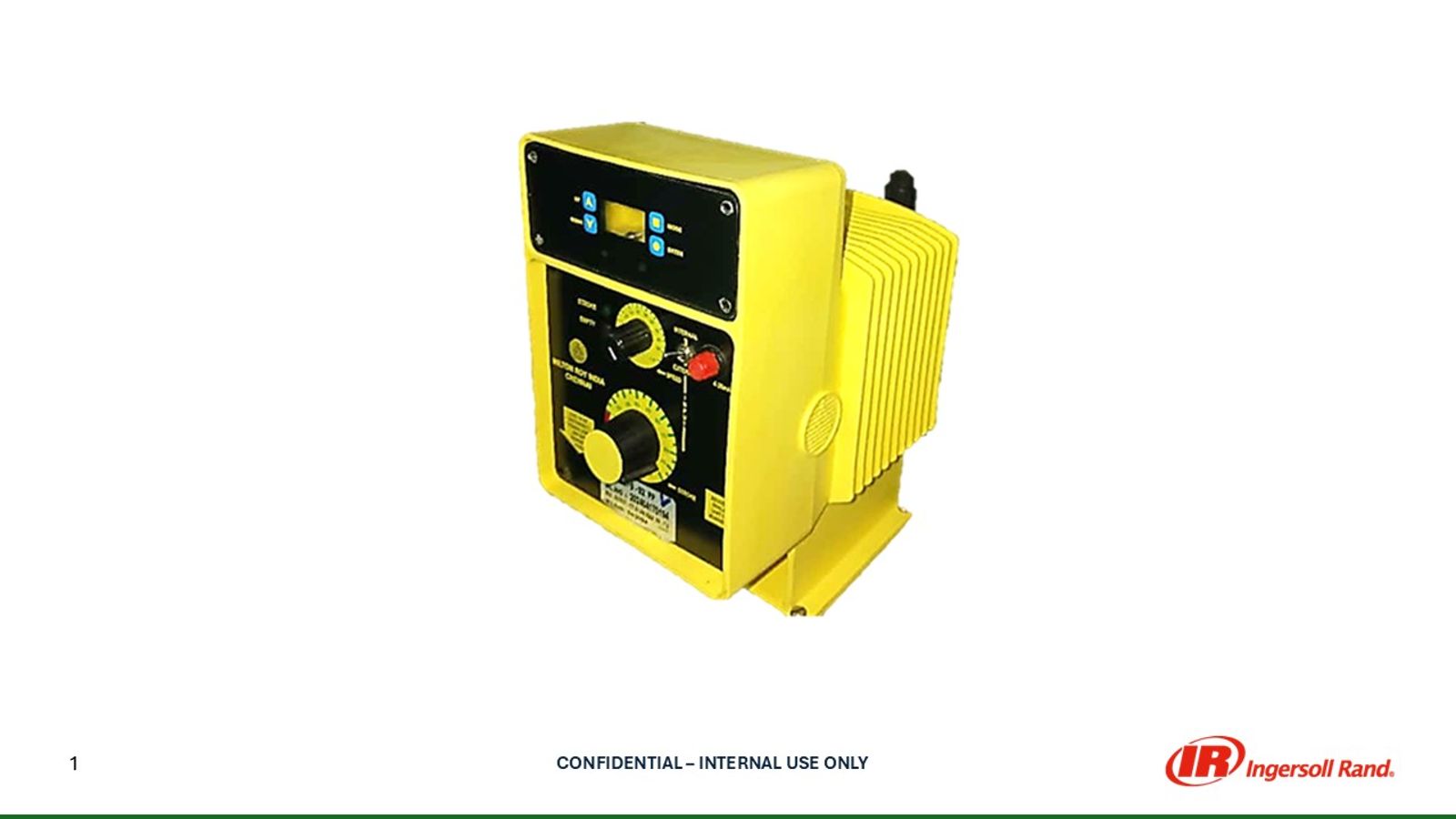

emag pro
Back to the product list

EMAG PRO Series

  • Maximum Flow Rate: 90 L/h
  • Maximum Pressure: 18 kg/cm²g
  • Electromagnetically Actuated Diaphragm

The EMAG PRO Series electromagnetic metering pumps are engineered for accurate, reliable, and repeatable chemical dosing in demanding industrial and water treatment applications.

Designed with an electronically operated, mechanically actuated diaphragm, the series offers a wide operating range with flow rates up to 90 L/h and pressures up to 18 kg/cm²g. Advanced user controls, real-time operating data, and robust construction ensure consistent dosing performance and long operational life.

Multiple liquid end material options provide excellent chemical compatibility, while optional 4–20 mA automation (9 Series models) enables seamless integration into automated process control systems.

Standard:

  • Max flow rate: 90 L/h
  • Max pressure: Up to 18 kg/cm²g
  • Electronically operated, mechanically actuated diaphragm
  • Manual stroke length adjustment while running or stopped
  • Electromagnetic drive design with reduced moving parts
  • Composite PTFE-faced Hypalon diaphragm for extended service life
  • Flow rate adjustment from 0 to 100%
  • Accuracy: ±2% of rated flow from 10% to 100% stroke length
  • Suction lift: Up to 1.5 m water (max.)
  • Handles liquid viscosity up to 50 cPs
  • Push-button control for strokes per minute (SPM) and menu navigation
  • Manual knob for precise stroke length control
  • LCD user interface for operational feedback
  • Dual SPM control
  • Low-level float switch for tank level detection
  • 4–20 mA input available on automated models
  • Real-time display of operating temperature, SPM, stroke length, and diagnostics

Standard Drive Data

  • Electromagnetic Power Unit (EPU)
  • Power supply: 230 V AC, 50/60 Hz, Single Phase
  • Power consumption:
    • Approx. 40 W (Models EP 901 to EP 905)
    • Approx. 75 W (Models EP 906 to EP 914)
  • “9” Series models equipped for 4–20 mA automation

A wide range of installation and system accessories is available on request, including:

  • Pulsation dampeners
  • Safety valves
  • Backpressure valves

Please consult us for accessory selection and application compatibility.

EMAG PRO SERIES - Catalog R1

A - Series (1).png

Dosing Pump Series – A

The Milton Roy EMAG Series A delivers precise, reliable chemical dosing in a compact, energy-efficient design built for water treatment and industrial processes.

B - Series Front.png

Dosing Pump Series - B

The Milton Roy Dosing Pump Series B is engineered for precise, reliable metering performance with flow rates up to 17 L/h and pressures up to 10 kg/cm²g.

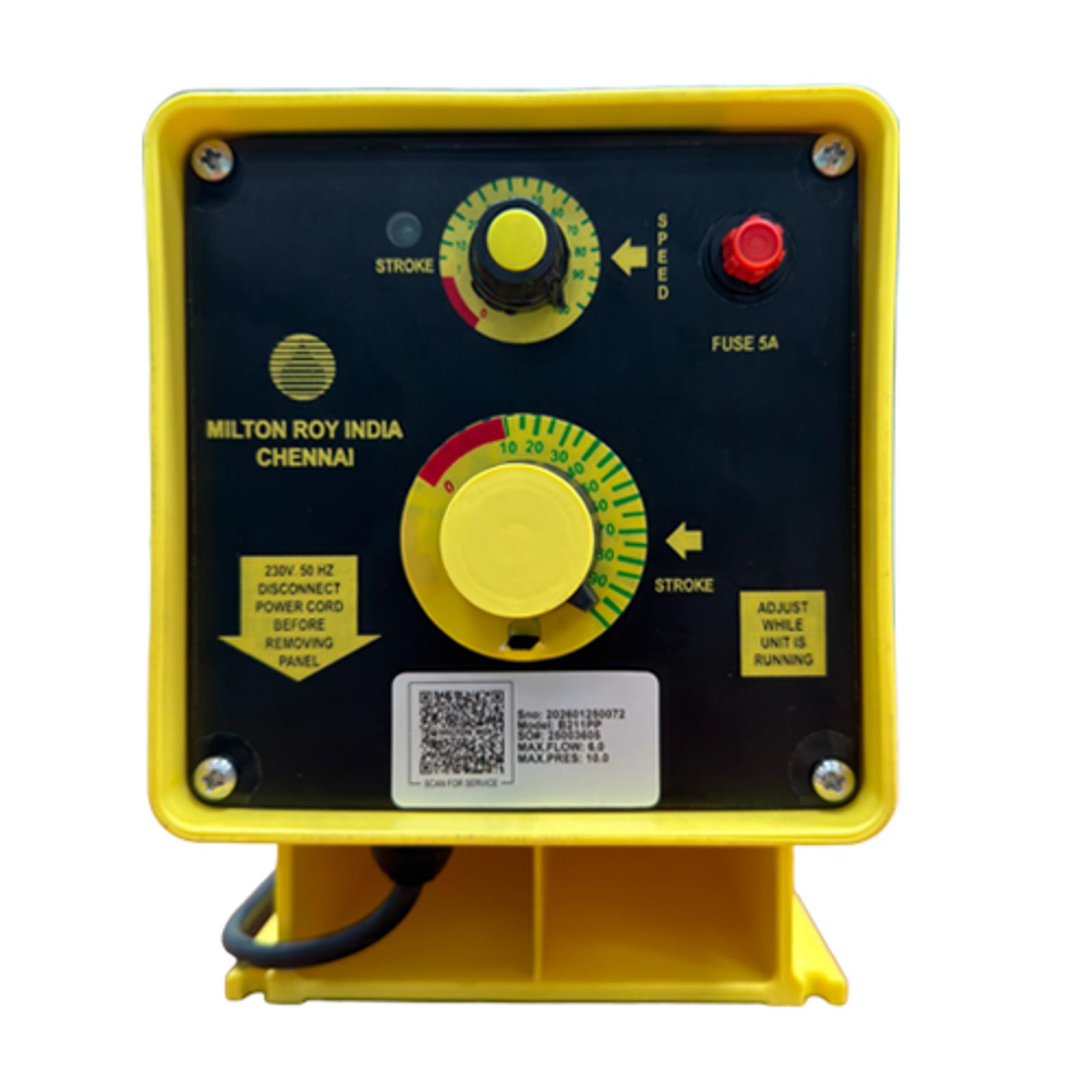

D - Series Front.png

Dosing Pump - Series D

The Milton Roy Dosing Pump Series D is engineered for high capacity, high-pressure chemical metering, delivering flow rates up to 90 L/h and pressures up to 18 kg/cm²g.

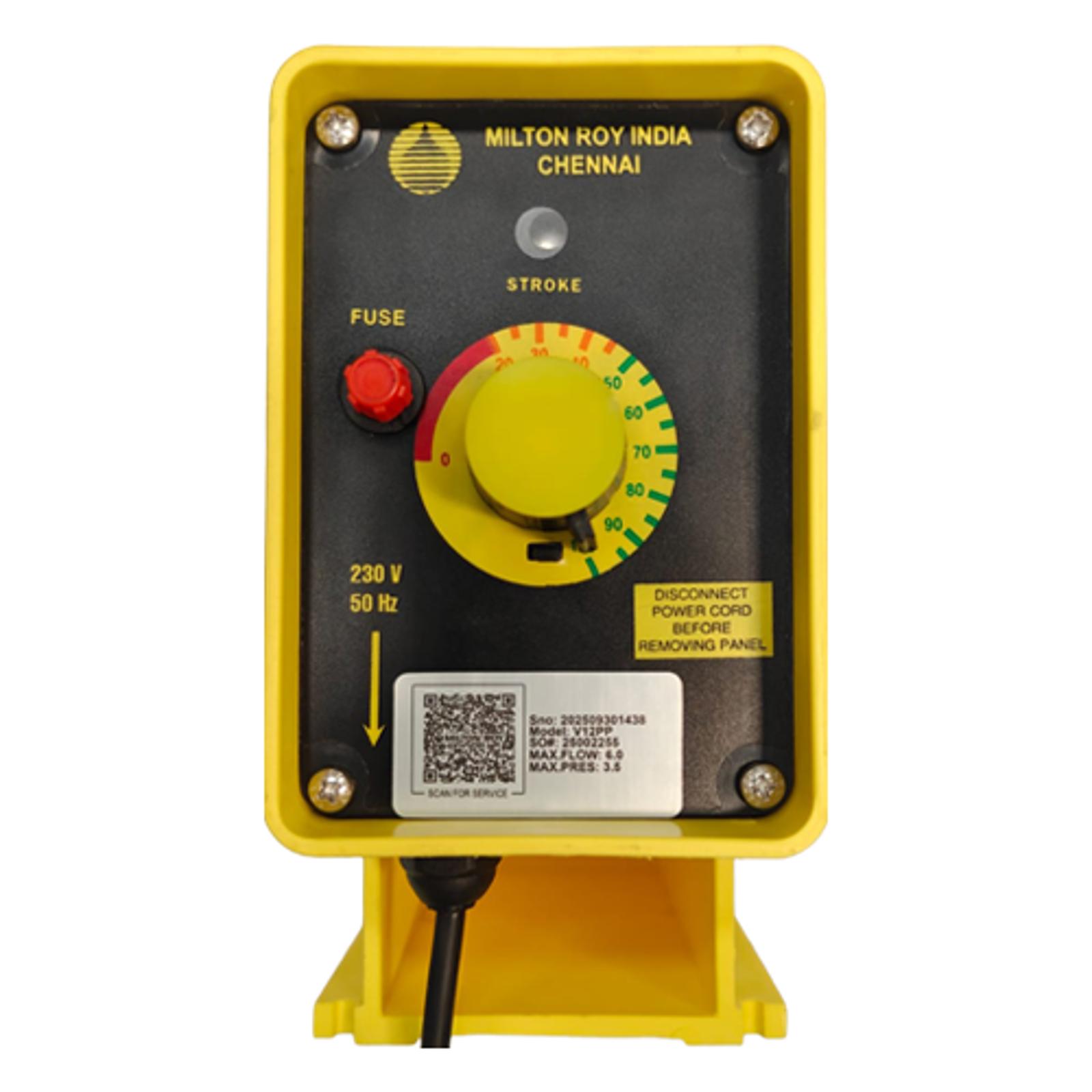

V - Series Front.png

Dosing Pump Series – V

The Milton Roy EMAG Series V delivers precise dosing with flow rates from 0.02 to 12 L/h and pressures up to 12 kg/cm², offering model-specific performance steps from V 09 to V 13.

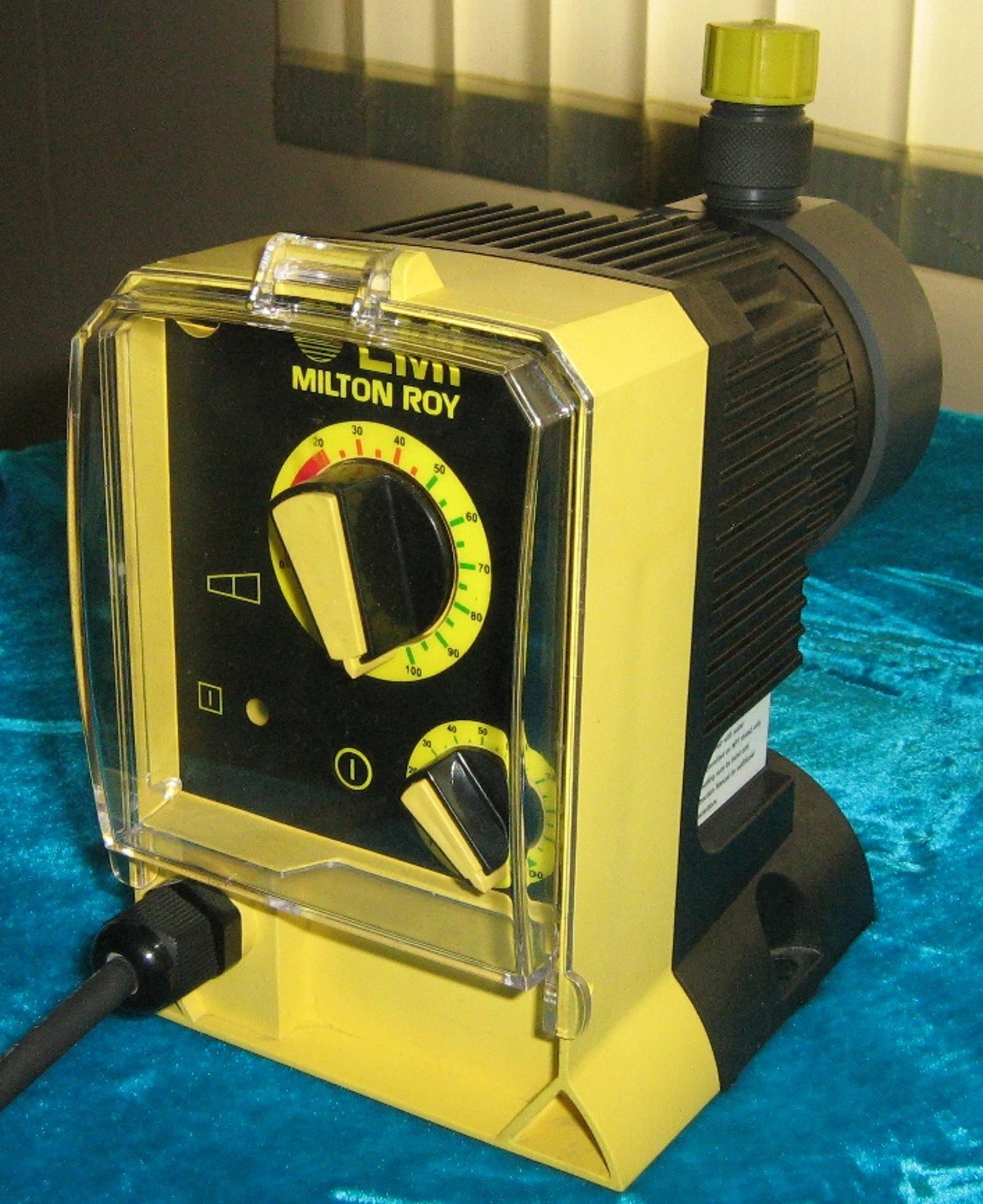

Picture 007.jpg

Dosing pump – Roytronics P+

The Roytronics P+ Series is a high-precision, electronically controlled dosing pump engineered for reliable chemical metering across water treatment and industrial applications.

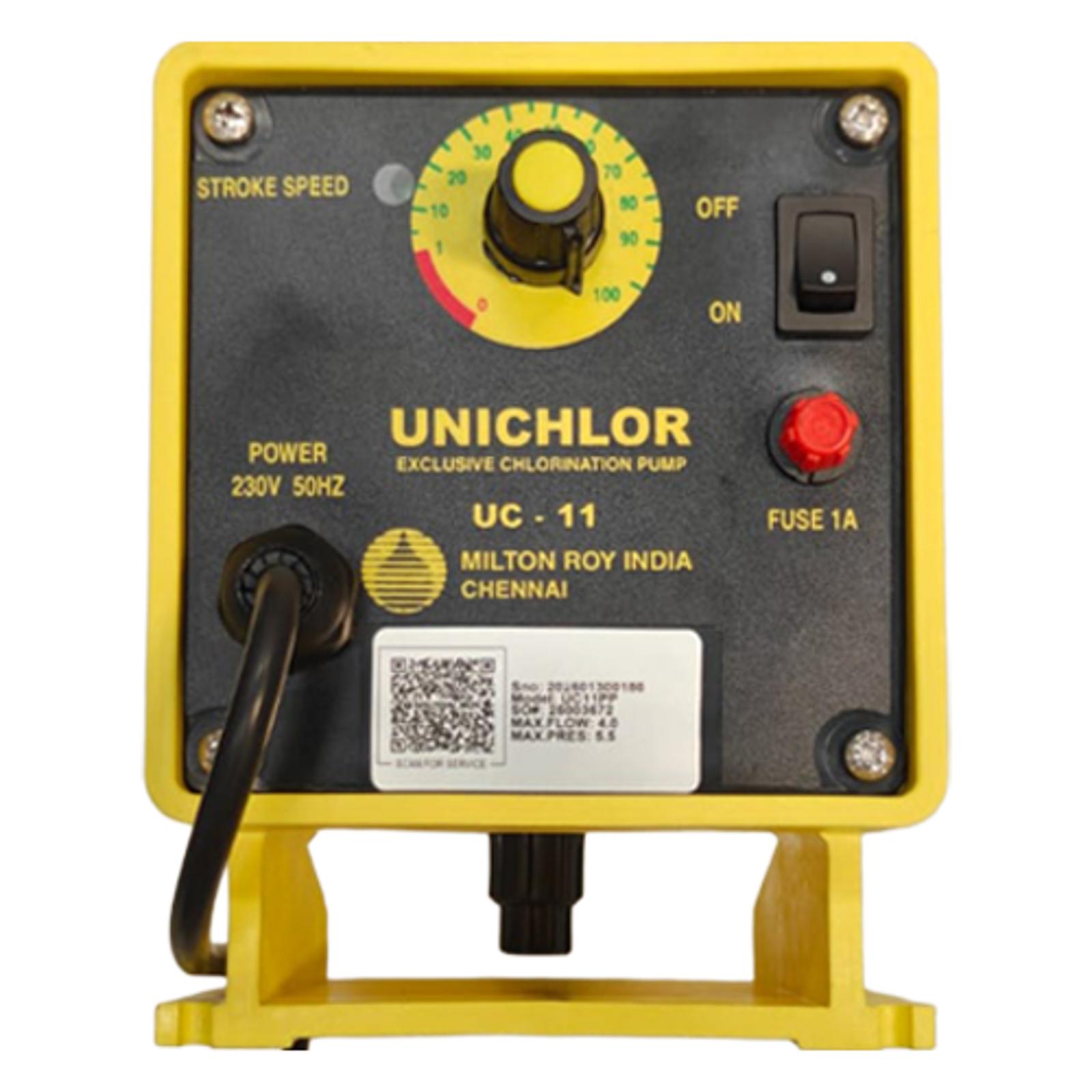

Unichlor 1.png
