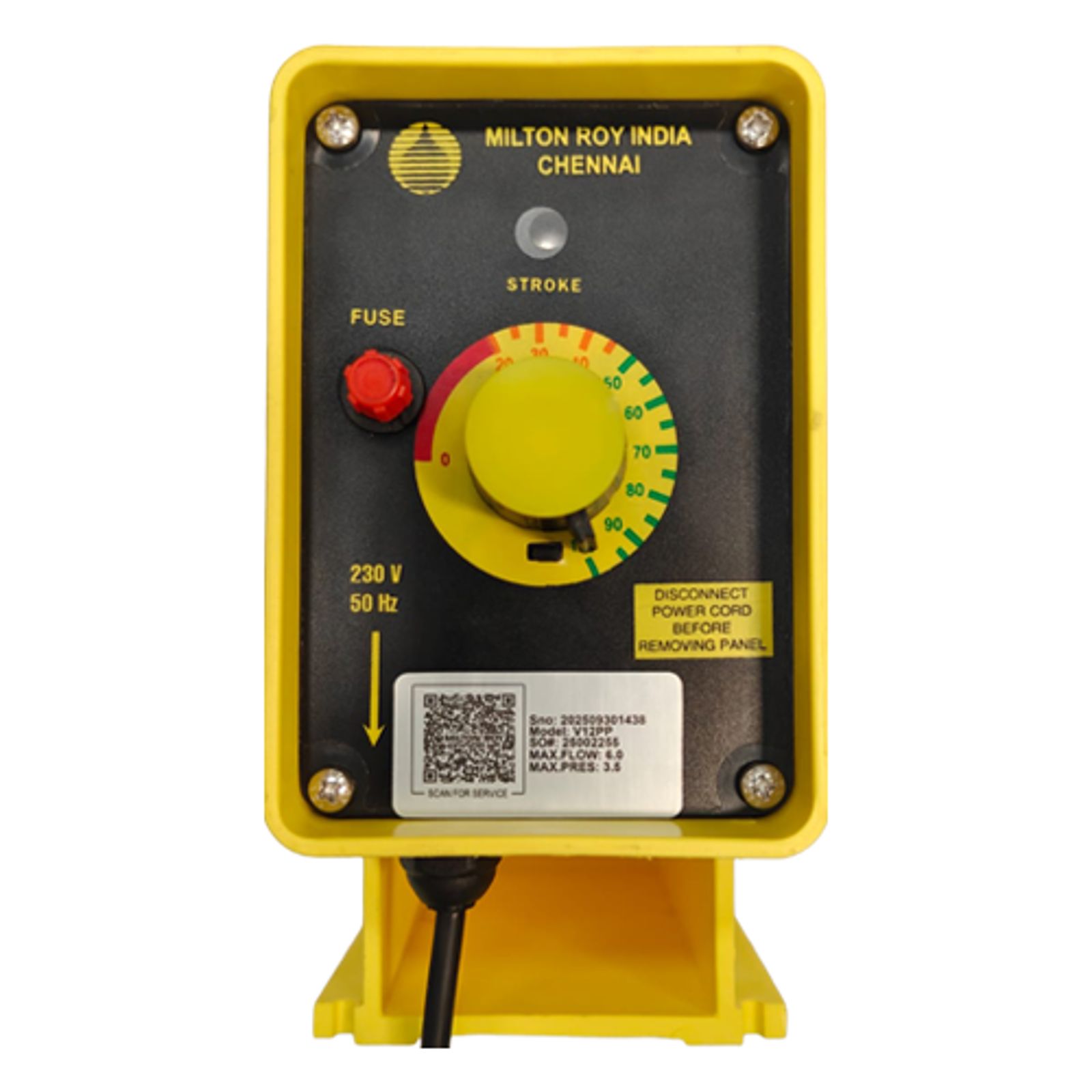

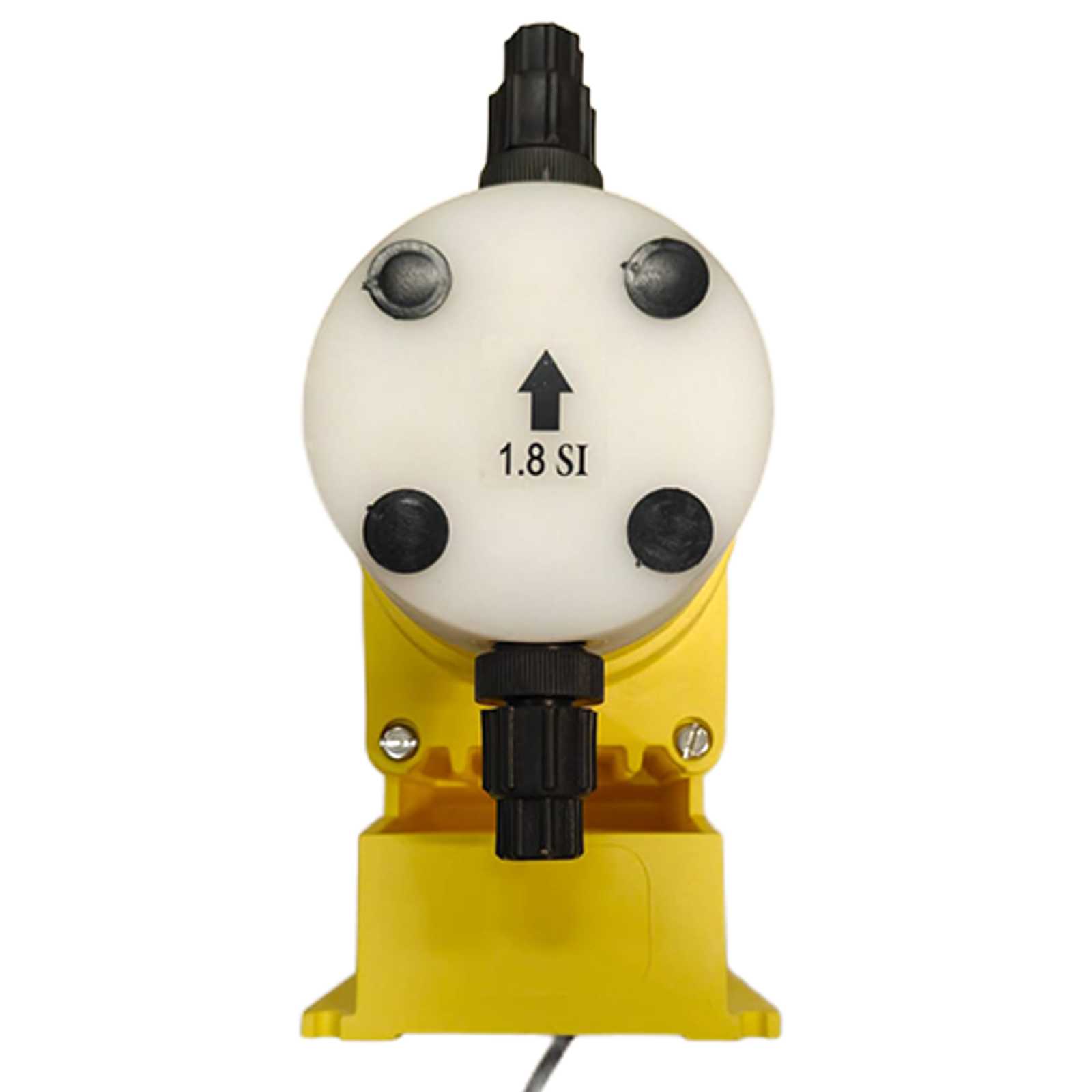

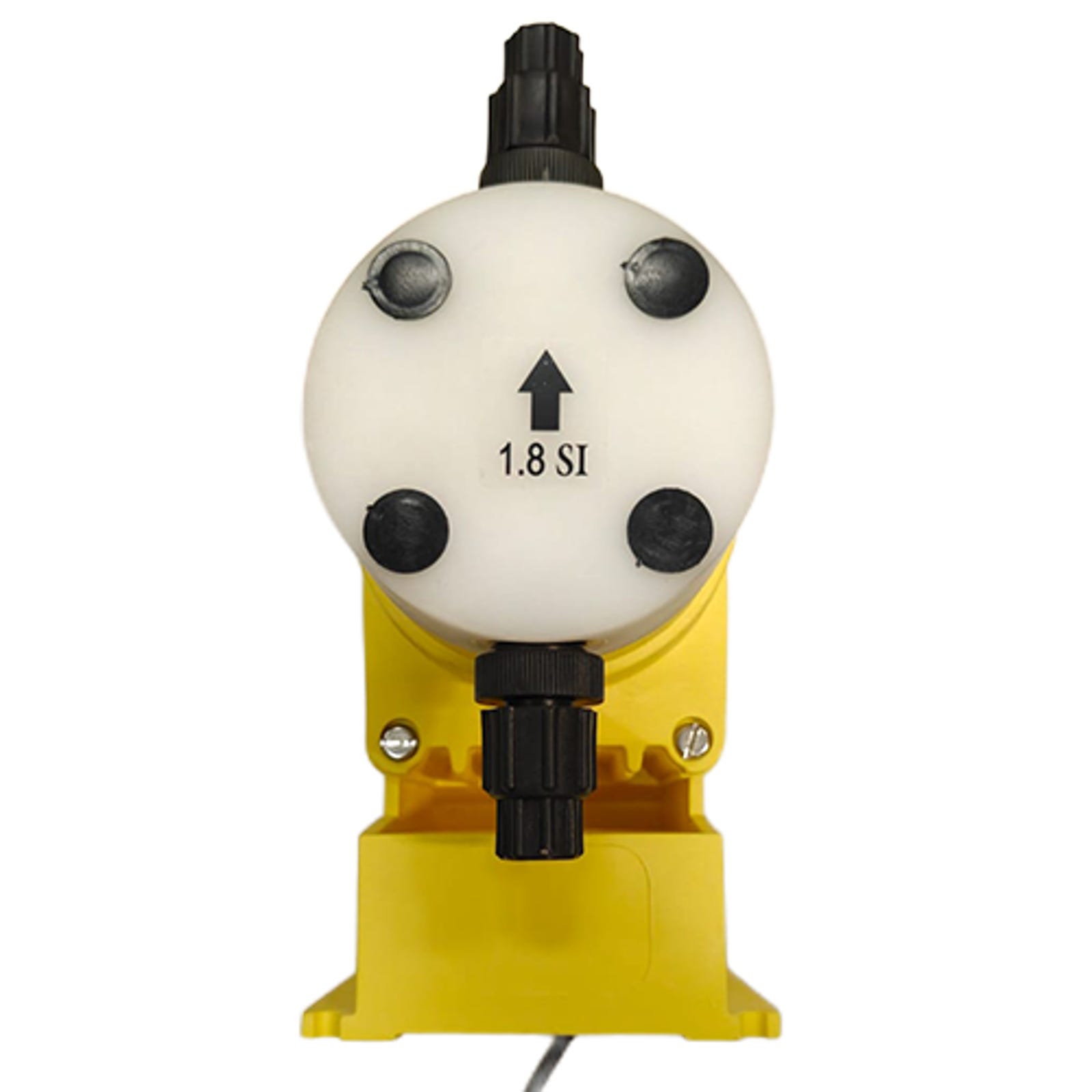

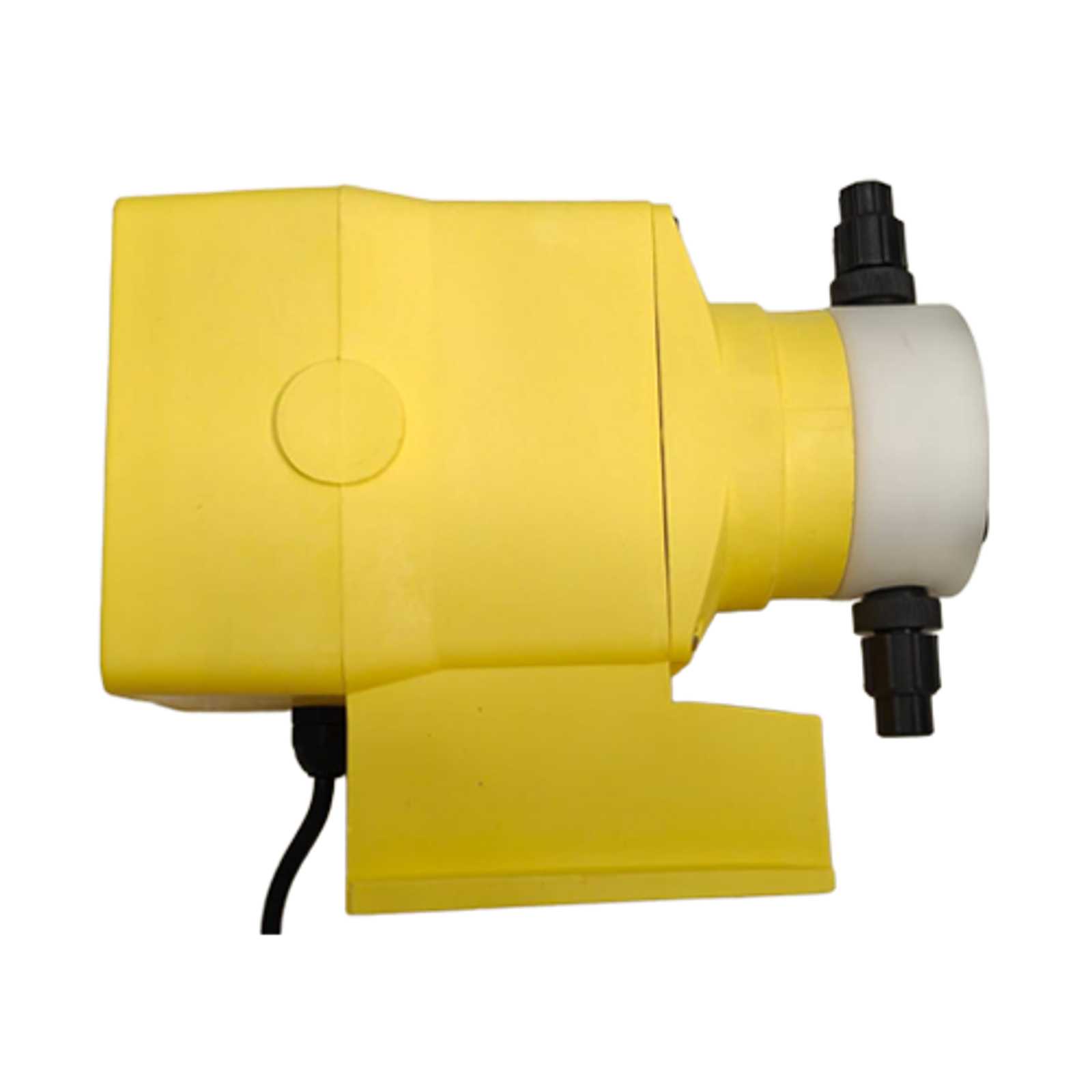

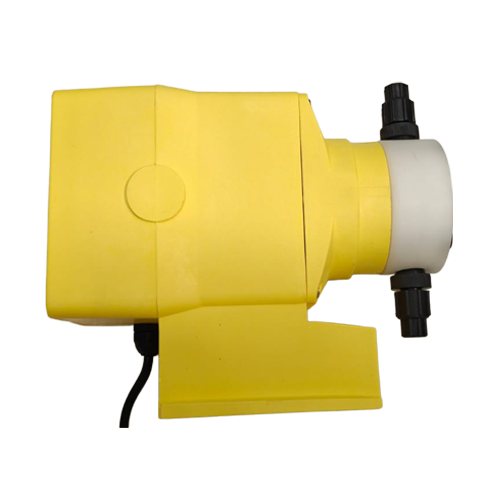

The Milton Roy EMAG Series V delivers precise dosing with flow rates from 0.02 to 12 L/h and pressures up to 12 kg/cm², offering model-specific performance steps from V 09 to V 13.
With electromagnetic drive, ±2% accuracy, and adjustable stroke and speed while running, it ensures stable metering across varying viscosities.
Its PP with PVC fitting liquid end, TEFLON-faced Hypalon diaphragm, and lightweight 3.5kg design make it reliable, corrosion-resistant, and easy to install.
Components | Materials |
|---|---|
Liquid end body | PP |
Valve Body | PVC |
Ring Seal | TEFLON |
Balls | CERAMIC |
Connections | PVC |
Diaphragm | TEFLON FACED HYPALON |
Foot Valve | PVC |
Antisyphon Valve | PVC |
Tubing | LDPE |
A wide range of installation accessories is available on request—including pulsation dampeners, safety valves, and backpressure valves. Please consult us for selection and specifications.
Pump Model | Flow max. (l/h) | Pressure max. (KG/CM2) | Size of Tubing (Suction & Discharge) | |
|---|---|---|---|---|
Min (l/h) | Max (l/h) | |||
V-09 | 0.02 | 1 | 12 | 3/8” x ¼” |
V-10 | 0.04 | 2 | 10 | 3/8” x ¼” |
V-11 | 0.08 | 4 | 5.5 | 3/8” x ¼” |
V-12 | 0.12 | 6 | 3.5 | 3/8” x ¼” |
V-13 | 0.24 | 12 | 2 | ½” x 3/8” |
Liquid End | Weight (kg) |
|---|---|
Plastic | 3.5 |
