65
3500
10
3500

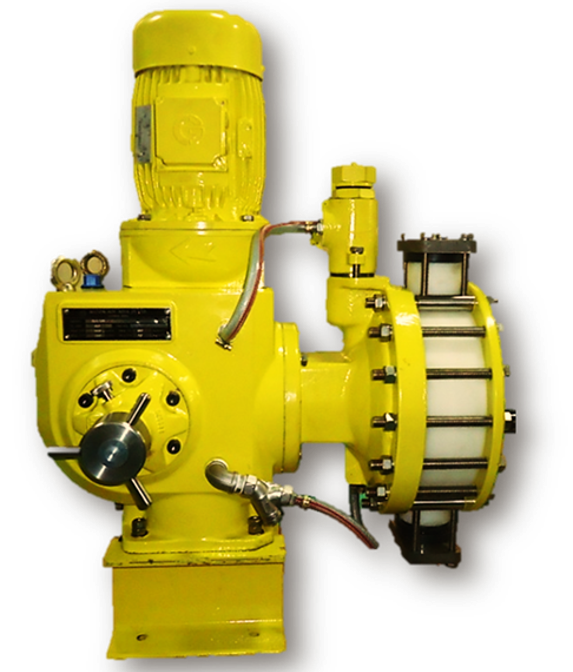

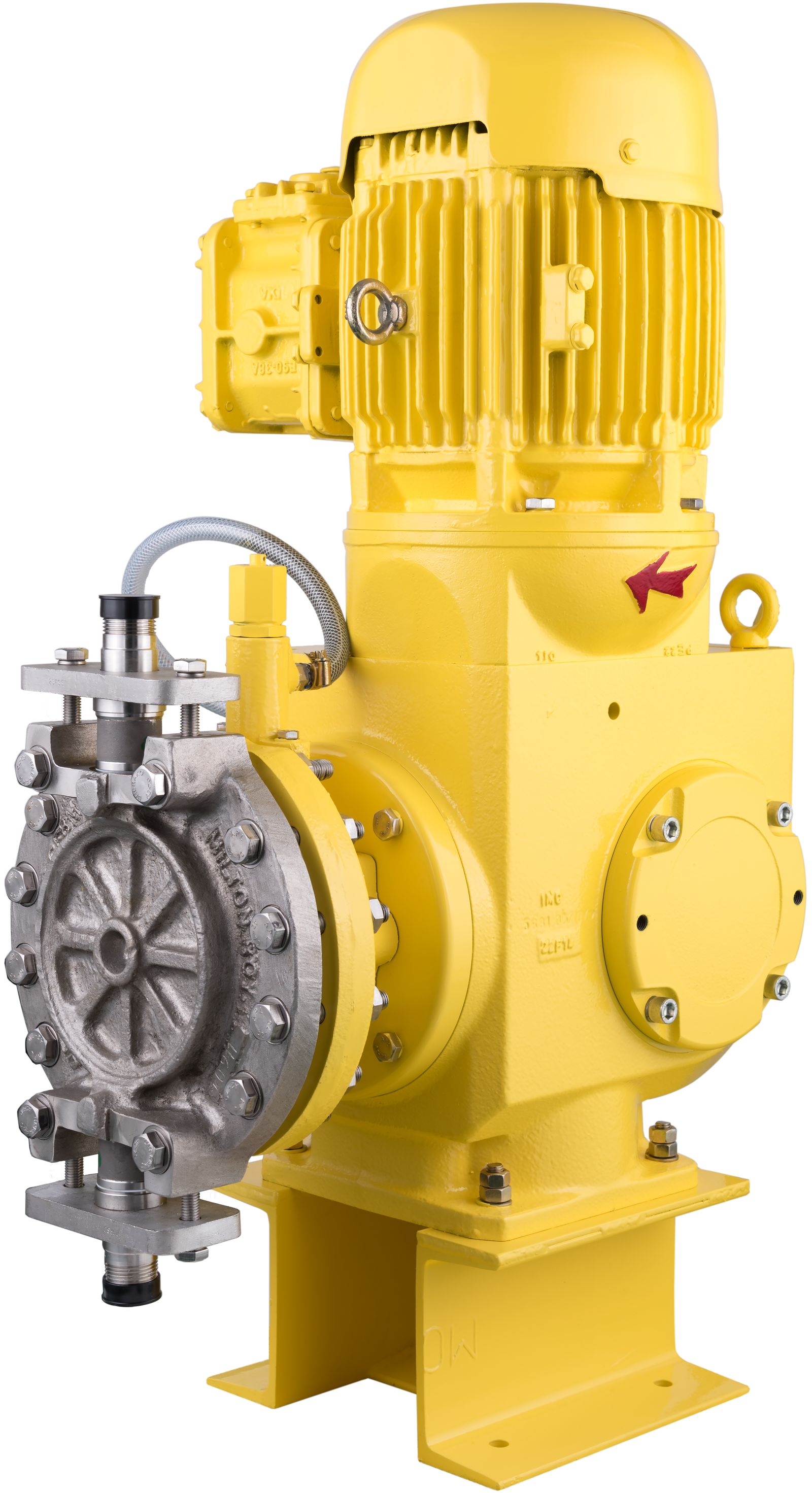

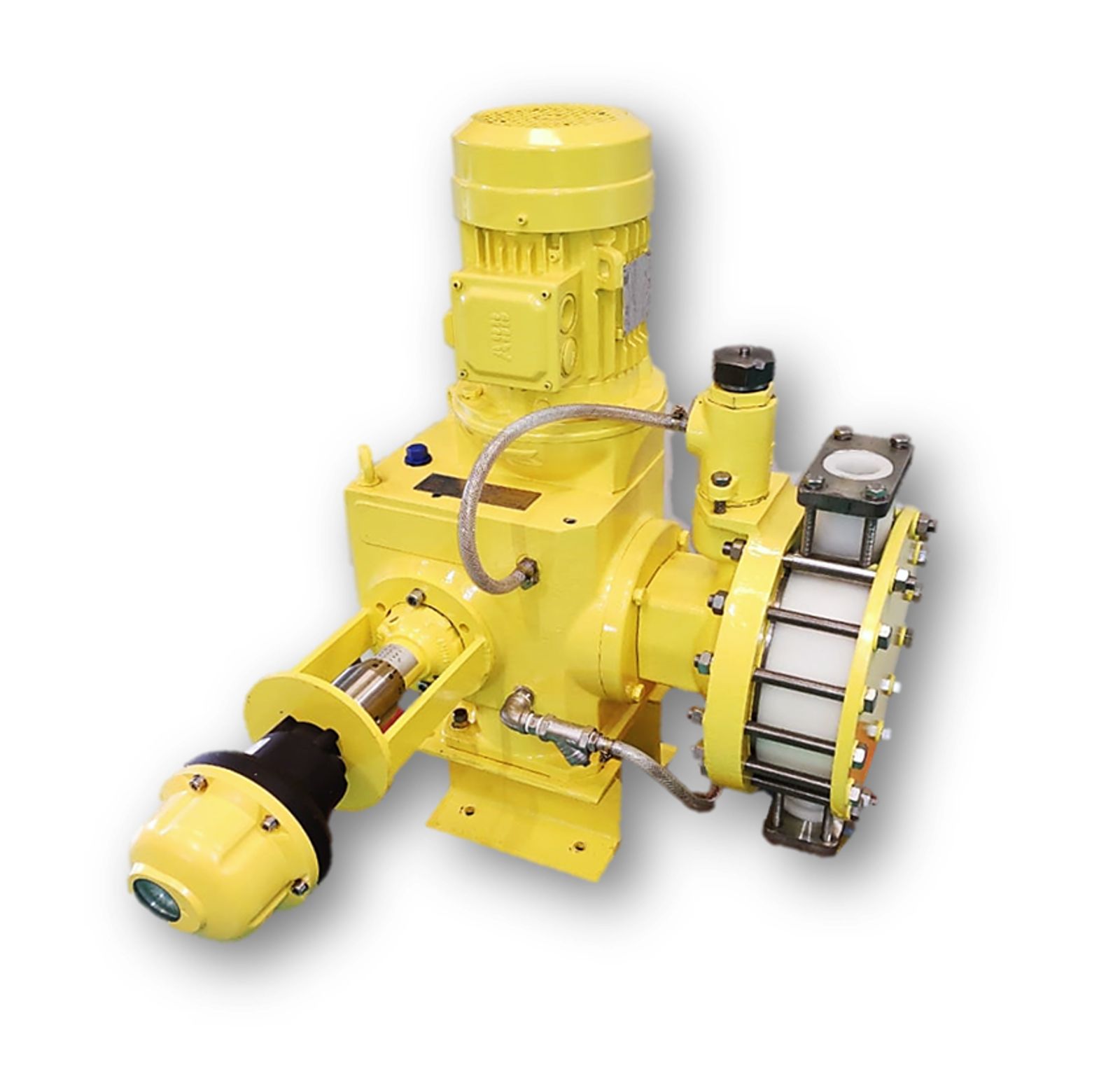

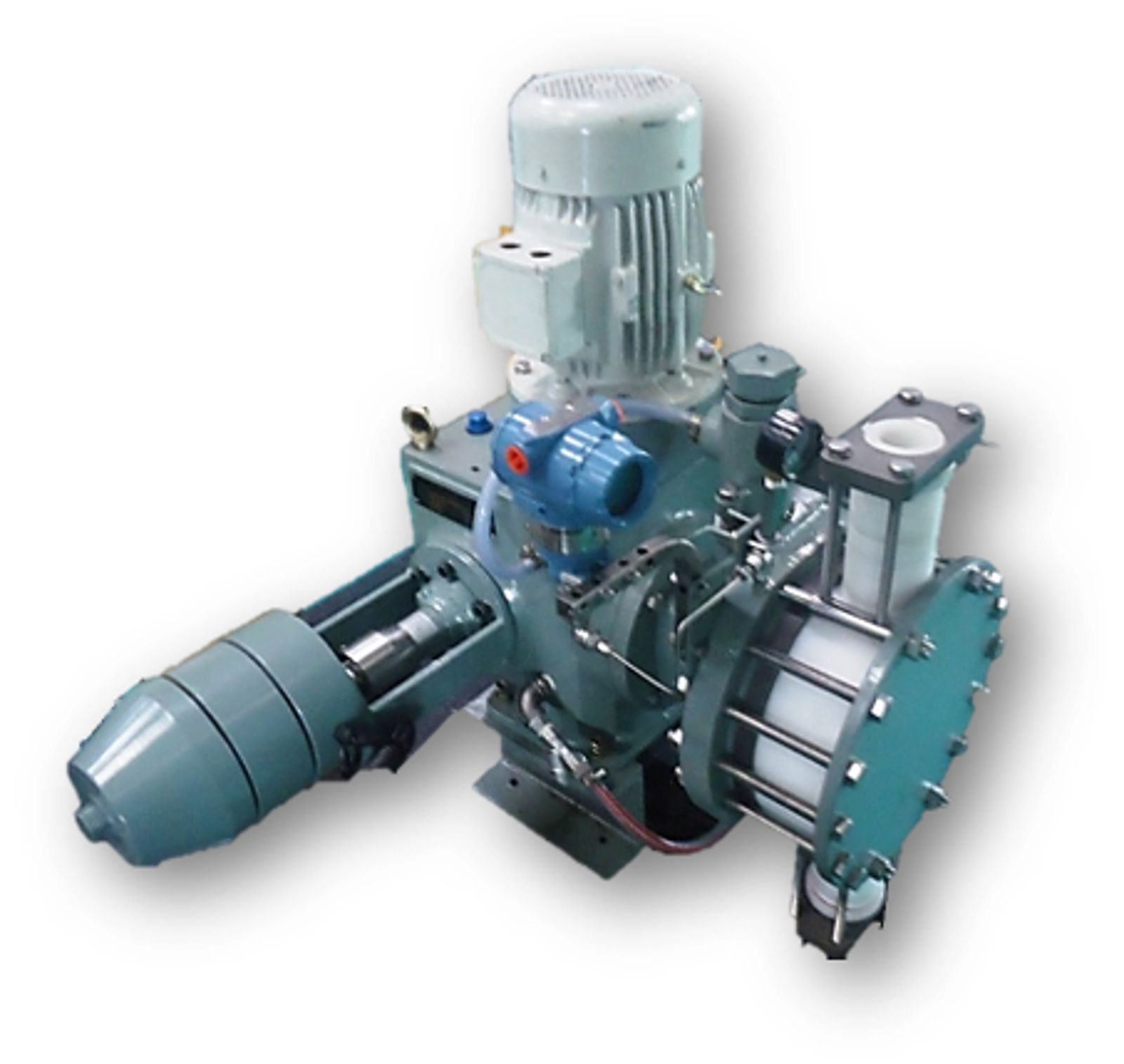

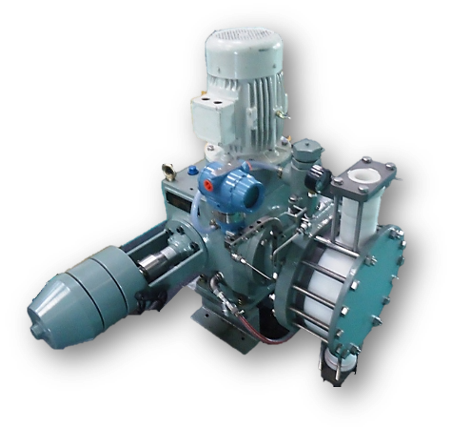

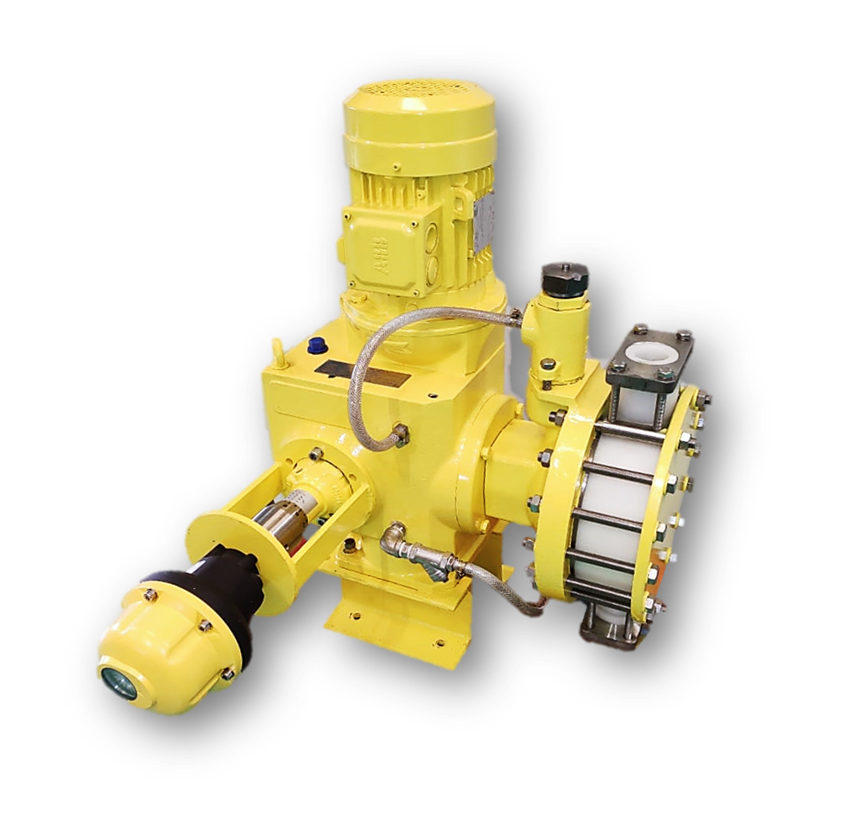

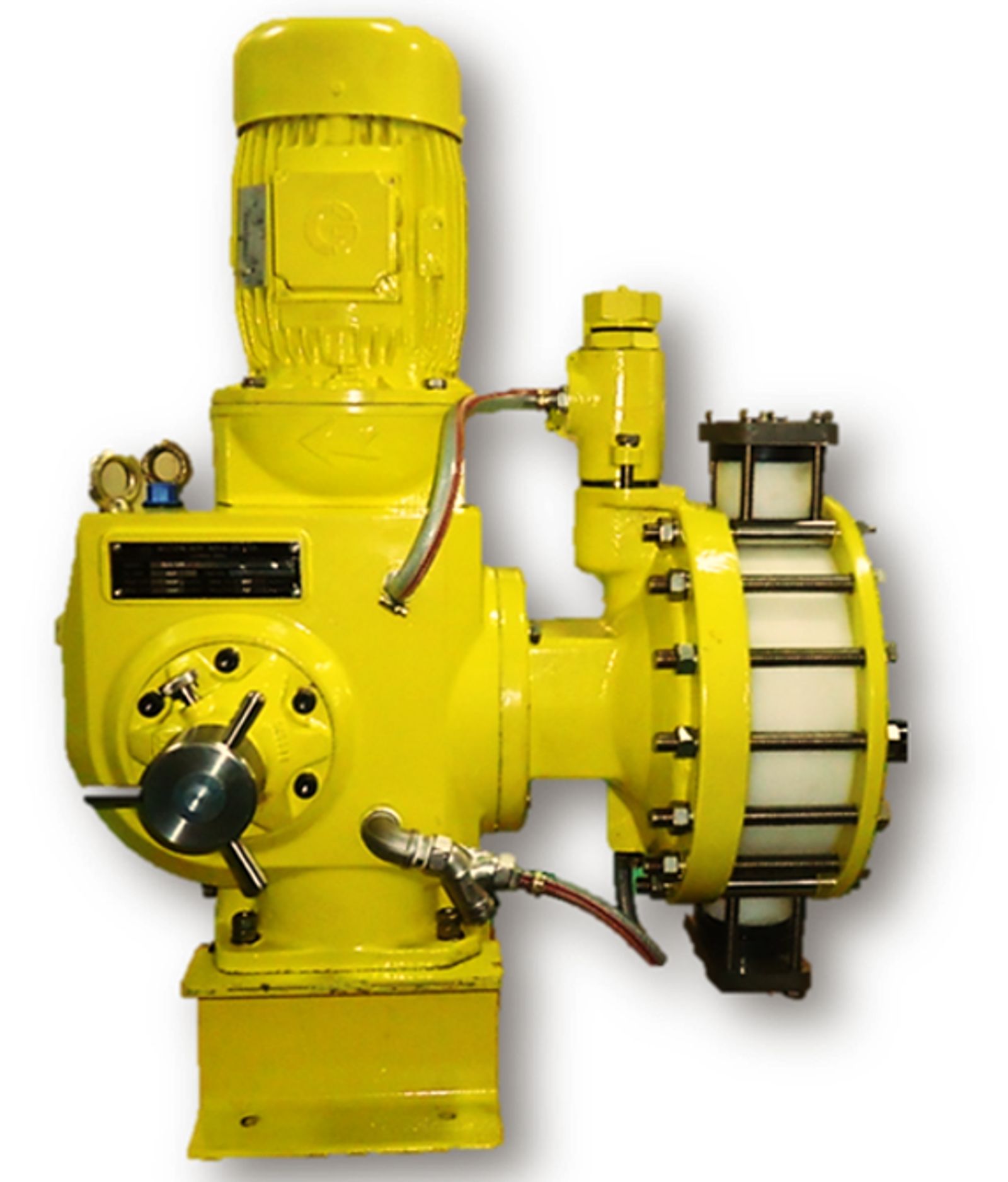

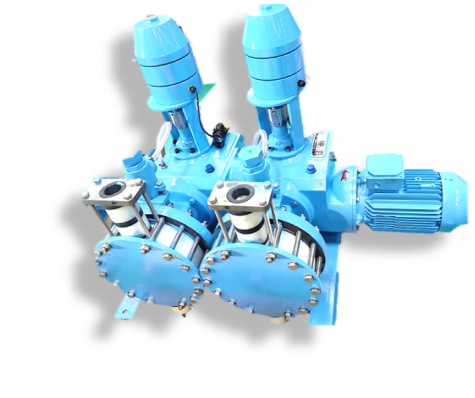

Engineered to meet API 675 standards, this pump ensures high reliability, safety, and performance for critical dosing processes.

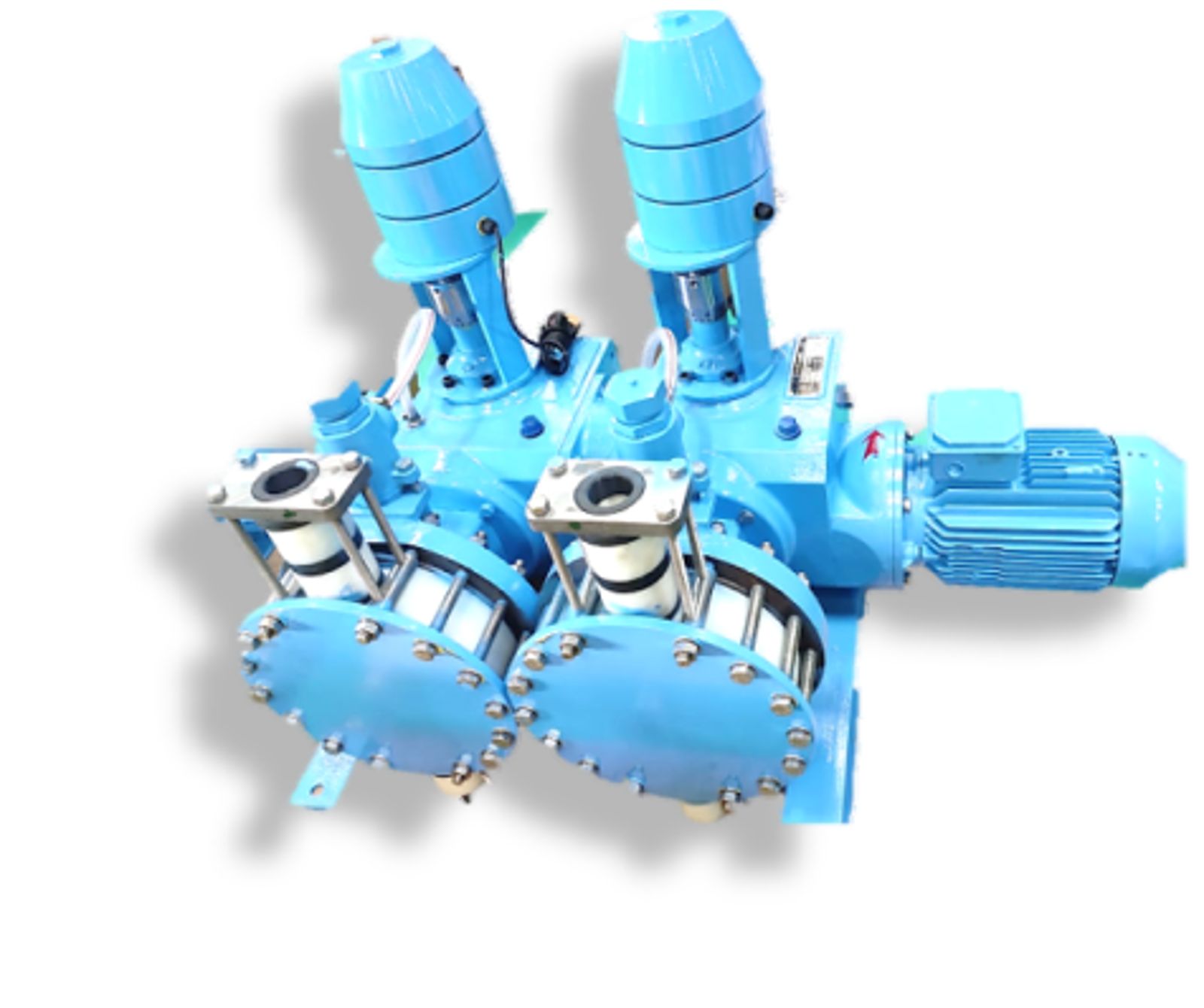

Delivers flow rates up to 3500 L/h (simplex) and 7000 L/h (duplex) at 5 kg/cm²g, making it suitable for large-scale operations.
Handles demanding conditions with maximum pressure up to 65 kg/cm²g (metallic) and 10 kg/cm²g (plastic), ensuring versatility across applications.
Offers high dosing accuracy (±1%), repeatability of ±3%, and 0–100% flow adjustment during operation, supported by a lockable micrometer stroke mechanism.
Features a hydraulically actuated PTFE-faced diaphragm (TFN) for durability and chemical resistance, along with Diaphragm Rupture Detection System (DRDS) for enhanced safety.
Supports viscosity up to 2400 cPs, includes a 10:1 turndown ratio, and offers threaded or flanged connections, ensuring flexibility for various process requirements.
Components | Materials | |
|---|---|---|
Model | PHL (Metallic Liquid End) | PHL (Plastic Liquid End) |
Head | CF8M | PP |
Check Valve | SS316 / CF8M | PVC |
Balls | SS-316 | GLASS / DVC / Teflon |
Diaphragm | TFN* | TFN* |
Note:
Contact company for more details.
Standard Motor Data:
Options:
Pump Model | Piston Φ (mm) | Stroke Speed (SPM) | Flow (LPH) | Pressure (Kg/Cm2(g)) | End Connection | Diaphragm Size | ||
|---|---|---|---|---|---|---|---|---|
2 HP | 3 HP | 5 HP | ||||||
PHL 40A | 40 | 100 | 350 | 50.0 | 65.0 | -- |
1" BSP(M) |
166 |
PHL 40B | 40 | 120 | 400 | 40.0 | 65.0 | -- | ||
PHL 40C | 40 | 150 | 500 | 32.0 | 50.0 | 65.0 | ||
PHL 50A | 50 | 100 | 525 | 32.0 | 40.0 | -- | ||
PHL 50B | 50 | 120 | 640 | 25.0 | 40.0 | -- | ||
PHL 50C | 50 | 150 | 800 | 20.0 | 32.0 | 40.0 | ||
PHL 63A | 63 | 100 | 835 | 20.0 | 25.0 | -- | ||
PHL 63B | 63 | 120 | 1050 | 16.0 | 25.0 | -- | ||
PHL 63C | 63 | 150 | 1300 | 12.0 | 20.0 | 25.0 | ||
PHL 70A | 70 | 100 | 1000 | 16.0 | 20.0 | -- |
1-1/2"BSP(M) |
266 |
PHL 70B | 70 | 120 | 1300 | 13.0 | 20.0 | -- | ||
PHL 70C | 70 | 150 | 1600 | 10.0 | 16.0 | 20.0 | ||
PHL 80A | 80 | 100 | 1400 | 10.0 | 15.0 | -- | ||
PHL 80B | 80 | 120 | 1700 | 8.0 | 15.0 | -- | ||
PHL 80C | 80 | 150 | 2100 | 6.0 | 9.0 | 15.0 | ||
PHL 90A | 90 | 100 | 1800 | 7.0 | 10.0 | -- | ||
PHL 90B | 90 | 120 | 2100 | 6.0 | 10.0 | -- | ||
PHL 90C | 90 | 150 | 2700 | 5.0 | 8.0 | 10.0 | ||
PHL 100A | 100 | 100 | 2200 | 5.0 | 7.0 | -- | ||
PHL 100B | 100 | 120 | 2600 | 5.0 | 7.0 | -- | ||
PHL 115A | 115 | 100 | 2900 | -- | 5.0 | -- | ||
PHL 115B | 115 | 120 | 3500 | -- | 5.0 | -- | ||
Pump Model | Piston Φ (mm) | Stroke Speed (SPM) | Flow (LPH) | Pressure (Kg/Cm2(g)) | End Connection | Diaphragm Size | ||
|---|---|---|---|---|---|---|---|---|
2 HP | 3 HP | 5 HP | ||||||
PHL 70A | 70 | 100 | 1000 | 10 | -- | -- |
1-1/2"BSP(M) |
266 |
PHL 70B | 70 | 120 | 1300 | 10 | -- | -- | ||
PHL 70C | 70 | 150 | 1600 | 10 | -- | -- | ||
PHL 80A | 80 | 100 | 1400 | 10 | -- | -- | ||
PHL 80B | 80 | 120 | 1700 | 8 | 10 | -- | ||
PHL 80C | 80 | 150 | 2100 | 6 | 10 | -- | ||
PHL 90A | 90 | 100 | 1800 | 7 | 10 | -- | ||
PHL 90B | 90 | 120 | 2100 | 6 | 10 | -- | ||
PHL 90C | 90 | 150 | 2700 | 5 | 8 | 10 | ||
PHL 100A | 100 | 100 | 2200 | 5 | 7 | -- | ||
PHL 100B | 100 | 120 | 2600 | 5 | 7 | -- | ||
PHL 115A | 115 | 100 | 2900 | -- | 5 | -- | ||
PHL 115B | 115 | 120 | 3500 | -- | 5 | -- | ||
Pump Model | Piston Φ (mm) | Stroke Speed (SPM) | Flow (LPH) | Pressure (Kg/Cm2(g)) | End Connection | Diaphragm Size | ||
|---|---|---|---|---|---|---|---|---|
3 HP | 5 HP | 7.5 HP | ||||||
PHL D 63A | 63 | 100 | 1670 | 20.0 | 25.0 | -- | 1" BSP(M) |
166 |
PHL D 63B | 63 | 120 | 2100 | 16.0 | 25.0 | -- | ||
PHL D 63C | 63 | 150 | 2600 | 12.0 | 20.0 | 25.0 | ||
PHL D 70A | 70 | 100 | 2000 | 16.0 | 20.0 | -- |
1-1/2"BSP(M) |
266 |
PHL D 70B | 70 | 120 | 2600 | 13.0 | 20.0 | -- | ||
PHL D 70C | 70 | 150 | 3200 | 10.0 | 16.0 | 20.0 | ||
PHL D 80A | 80 | 100 | 2800 | 10.0 | 15.0 | -- | ||
PHL D 80B | 80 | 120 | 3400 | 8.0 | 15.0 | -- | ||
PHL D 80C | 80 | 150 | 4200 | 6.0 | 9.0 | 15.0 | ||
PHL D 90A | 90 | 100 | 3600 | 7.0 | 10.0 | -- | ||
PHL D 90B | 90 | 120 | 4200 | 6.0 | 10.0 | -- | ||
PHL D 90C | 90 | 150 | 5400 | 5.0 | 8.0 | 10.0 | ||
PHL D 100A | 100 | 100 | 4400 | 5.0 | 7.0 | -- | ||
PHL D 100B | 100 | 120 | 5200 | 5.0 | 7.0 | -- | ||
PHL D 115A | 115 | 100 | 5800 | -- | 5.0 | -- | ||
PHL D 115B | 115 | 120 | 7000 | -- | 5.0 | -- | ||
Pump Model | Piston Φ (mm) | Stroke Speed (SPM) | Flow (LPH) | Pressure (Kg/Cm2(g)) | End Connection | Diaphragm Size | ||
|---|---|---|---|---|---|---|---|---|
3 HP | 5 HP | 7.5 HP | ||||||
PHL D 70A | 70 | 100 | 2000 | 10 | -- | -- |
1-1/2"BSP(M) |
266 |
PHL D 70B | 70 | 120 | 2600 | 10 | -- | -- | ||
PHL D 70C | 70 | 150 | 3200 | 10 | -- | -- | ||
PHL D 80A | 80 | 100 | 2800 | 10 | -- | -- | ||
PHL D 80B | 80 | 120 | 3400 | 8 | 10 | -- | ||
PHL D 80C | 80 | 150 | 4200 | 6 | 10 | -- | ||
PHL D 90A | 90 | 100 | 3600 | 7 | 10 | -- | ||
PHL D 90B | 90 | 120 | 4200 | 6 | 10 | -- | ||
PHL D 90C | 90 | 150 | 5400 | 5 | 8 | 10 | ||
PHL D 100A | 100 | 100 | 4400 | 5 | 7 | -- | ||
PHL D 100B | 100 | 120 | 5200 | 5 | 7 | -- | ||
PHL D 115A | 115 | 100 | 5800 | -- | 5 | -- | ||
PHL D 115B | 115 | 120 | 7000 | -- | 5 | -- | ||
