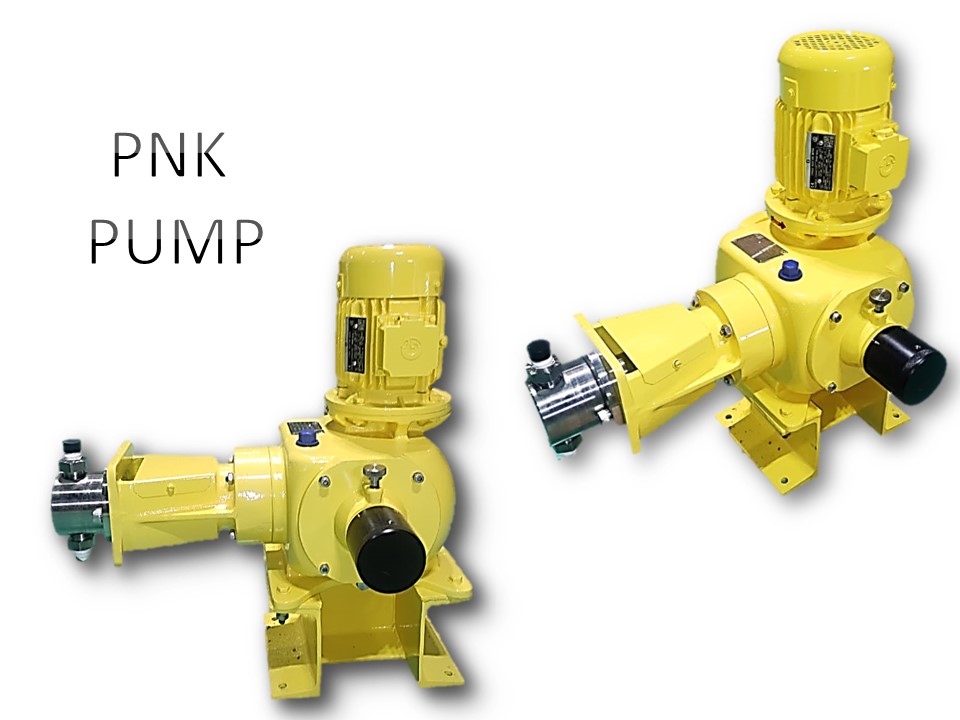

Flow rate up to 2000 l/h & pressure up to 225 kg/cm²g - Engineered for demanding dosing applications, delivering high flow capacity and exceptional pressure handling while complying with API 675 standards.
Provides ±1% accuracy from 10% to 100% stroke, with ±3% repeatability and ±3% linearity for dependable process performance.
Minimizes pulsation and shock while enabling fine stroke adjustments that can be securely locked to maintain settings.
0–100% flow adjustment during operation or shutdown - Allows capacity changes while the pump is running or stopped and offers a 10:1 turn-down ratio for enhanced operating flexibility.
Features corrosion-resistant SS316 wetted parts, threaded end connections, and a 34 mm stroke length for reliable long-term operation.
Suitable for liquid temperatures up to 120°C, ambient temperatures up to 50°C, viscosities up to 1800 cps, and includes oil-bath lubrication for extended service life.
Components | Materials |
|---|---|
Liquid end body | SS 316 |
Plunger | SS 316 |
Valve body | SS 316 |
Balls | SS 316 |
Packing | PTFE braided rope |
Y – Strainer (Optional) | SS 316 |
Standard Motor Data:
Options:
Pump model | Flow max. (l/h) | Pressure max. (kg/cm2g) | Stroking speed (spm) | Stroke length (mm) | Plunger Ø (mm) | End Connections (Suction & Discharge) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
@ 10 bar | @ Max pr. | 1 HP | 1.5 HP | 2 HP | 3 HP | |||||
16A | 20 | 18.5 | 150 | 225 | - | - | 58 | 34 | 16 | ½” NPT (M) |
16B | 33 | 31 | 150 | 225 | - | - | 96 | 34 | 16 | ½” NPT (M) |
16C | 50 | 47 | 75 | 150 | 225 | - | 144 | 34 | 16 | ½” NPT (M) |
16D | 65 | 61 | 60 | 85 | 150 | 225 | 180 | 34 | 16 | ½” NPT (M) |
20A | 30 | 28 | 100 | 150 | - | - | 58 | 34 | 20 | ½” BSP (M) |
20B | 50 | 48 | 100 | 150 | - | - | 96 | 34 | 20 | ½” BSP (M) |
20C | 75 | 72 | 45 | 100 | 150 | - | 144 | 34 | 20 | ½” BSP (M) |
20D | 95 | 91.5 | 35 | 55 | 100 | 150 | 180 | 34 | 20 | ½” BSP (M) |
25A | 48 | 47 | 60 | 100 | - | - | 58 | 34 | 25 | ½” BSP (M) |
25B | 80 | 78 | 60 | 100 | - | - | 96 | 34 | 25 | ½” BSP (M) |
25C | 120 | 115 | 30 | 60 | 100 | - | 144 | 34 | 25 | ½” BSP (M) |
25D | 150 | 146 | 25 | 35 | 60 | 100 | 180 | 34 | 25 | ½” BSP (M) |
32A | 80 | 79 | 35 | 60 | - | - | 58 | 34 | 32 | ½” BSP (M) |
32B | 130 | 128 | 35 | 60 | - | - | 96 | 34 | 32 | ½” BSP (M) |
32C | 200 | 195 | 17 | 35 | 60 | - | 144 | 34 | 32 | ½” BSP (M) |
32D | 250 | 247 | 15 | 20 | 35 | 60 | 180 | 34 | 32 | ½” BSP (M) |
40A | 125 | 124 | 20 | 35 | - | - | 58 | 34 | 40 | ½” BSP (M) |
40B | 205 | 204 | 20 | 35 | - | - | 96 | 34 | 40 | ½” BSP (M) |
40C | 310 | 308 | 11 | 20 | 35 | - | 144 | 34 | 40 | ½” BSP (M) |
40D | 390 | 388 | 9 | 14 | 20 | 25 | 180 | 34 | 40 | ½” BSP (M) |
50A | 190 | 190 | 12 | 25 | - | - | 58 | 34 | 50 | 1” BSP (M) |
50B | 320 | 320 | 12 | 25 | - | - | 96 | 34 | 50 | 1” BSP (M) |
50C | 490 | 490 | 7 | 12 | 20 | - | 144 | 34 | 50 | 1” BSP (M) |
50D | 610 | 610 | 6 | 9 | 12 | 25 | 180 | 34 | 50 | 1” BSP (M) |
55A | 230 | 230 | 10 | 20 | - | - | 58 | 34 | 55 | 1” BSP (M) |
55B | 390 | 390 | 10 | 20 | - | - | 96 | 34 | 55 | 1” BSP (M) |
55C | 590 | 590 | 6 | 10 | 20 | - | 144 | 34 | 55 | 1” BSP (M) |
55D | 740 | 740 | 5 | 7 | 10 | 20 | 180 | 34 | 55 | 1” BSP (M) |
63A | - | 310 | 7 | 15 | - | - | 58 | 34 | 63 | 1” BSP (M) |
63B | - | 510 | 7 | 15 | - | - | 96 | 34 | 63 | 1” BSP (M) |
63C | - | 510 | - | - | 7 | 15 | 144 | 34 | 63 | 1” BSP (M) |
63D | - | 970 | - | - | 7 | 15 | 180 | 34 | 63 | 1” BSP (M) |
70A | - | 380 | 5 | 12 | - | - | 58 | 34 | 70 | 1” BSP (M) |
70B | - | 640 | 5 | 12 | - | - | 96 | 34 | 70 | 1” BSP (M) |
70C | - | 960 | - | - | 5 | 12 | 144 | 34 | 70 | 1” BSP (M) |
70D | - | 1200 | - | - | 5 | 12 | 180 | 34 | 70 | 1” BSP (M) |
90A | - | 635 | 3 | 7 | - | - | 58 | 34 | 90 | 1 1/2” BSP (M) |
90B | - | 1050 | 3 | 7 | - | - | 96 | 34 | 90 | 1 1/2” BSP (M) |
90C | - | 1580 | - | - | 3 | 7 | 144 | 34 | 90 | 1 1/2” BSP (M) |
90D | - | 2000 | - | - | 3 | 7 | 180 | 34 | 90 | 1 1/2” BSP (M) |

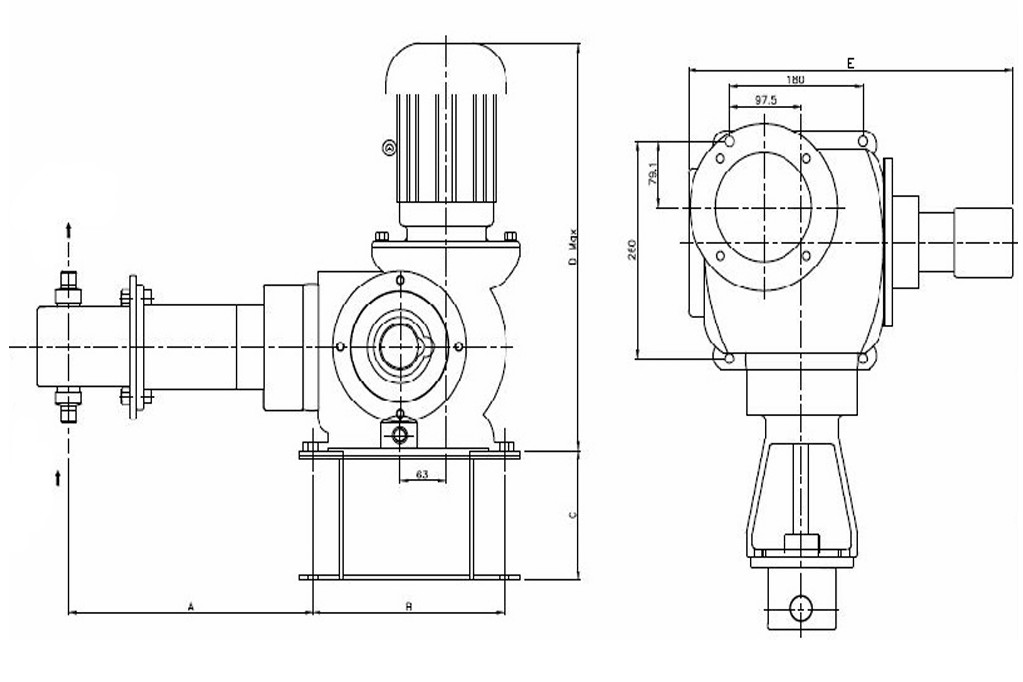

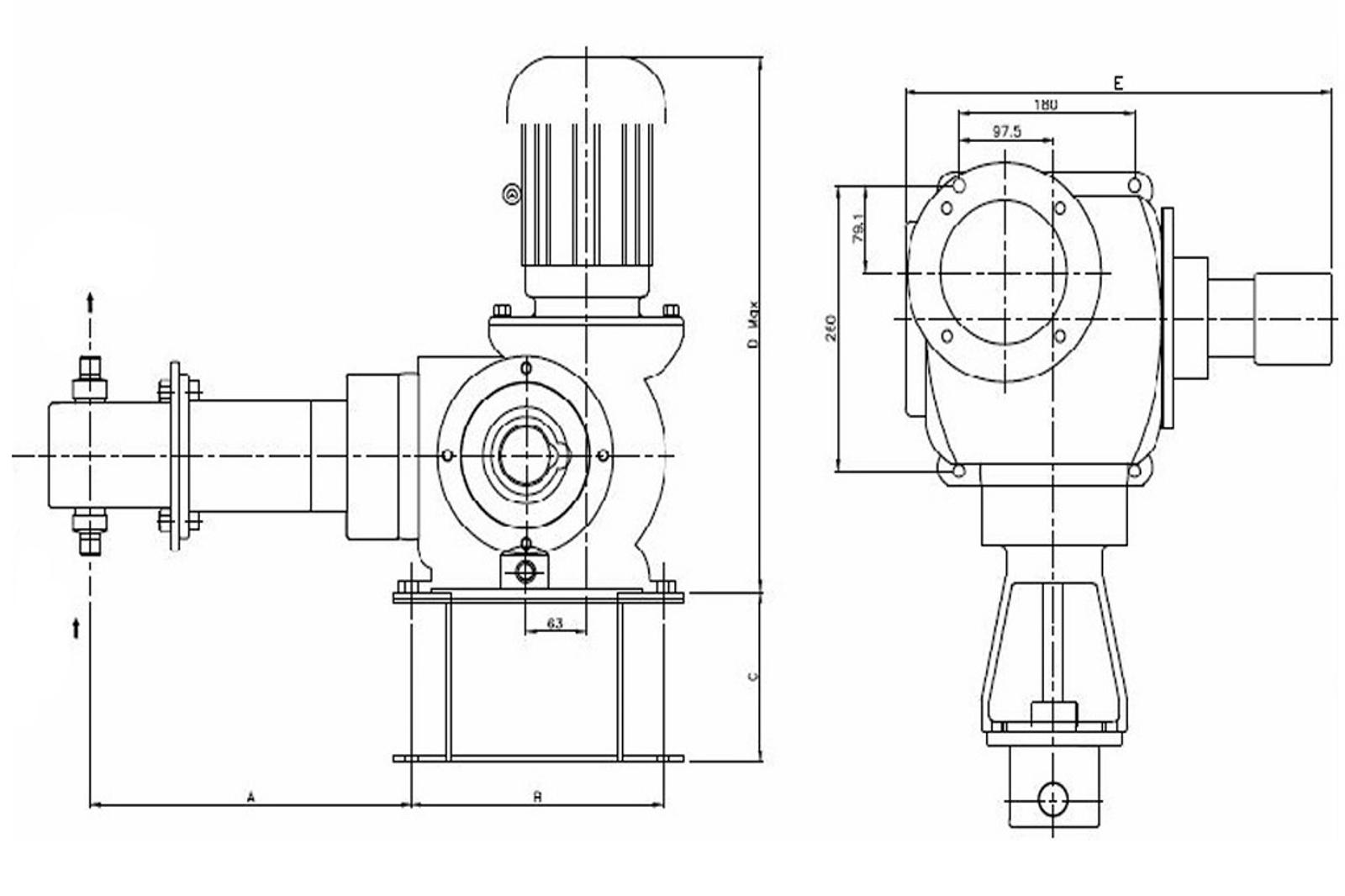

Dimensions (mm) | |||||
|---|---|---|---|---|---|
Pump | A | B | C | D | E |
PN 16-20 | 330 | 260 | 155 | 850 | 440 |
PN 25 | 302 | 260 | 155 | 850 | 440 |
PN 32-40 | 320 | 260 | 155 | 850 | 440 |
PN 50-90 | 330 | 260 | 155 | 850 | 440 |
Liquid End | Weight (kg) |
|---|---|
Metallic | 150 |
Coagulation/flocculation (injection of ferric chloride, aluminium sulphate, etc.), pH regulation (injection of acids and alkalis), water conditioning before and/or after RO treatment in desalination plant
protection of installation such as boilers and hydraulic systems (corrosion inhibitors, biocides, scale inhibitors, amines…)
injection of additives, injection of co-catalyst, injection of sulphuric acid into water to produce diluted sulphuric acid
Injection of chemicals for separation and treatment of refined products, injection of paraffin inhibitor into fuel storage tanks
injection of biocide, corrosion/scale inhibitors, H2S scavengers… protecting piping and other assets and maintaining production rates, transfer of steam condensate
Injection of enzymes in starch production, injection of caustic soda for process water neutralization in refining and distilling applications
The PNP Series packed plunger metering pumps are designed for medium flow , high pressure dosing applications where accuracy, mechanical reliability, and long service life are essential.
The PNM Series packed plunger metering pumps are designed for low to medium flow, high pressure dosing applications where accuracy, compactness, and operational reliability are essential.
The PNZ Series packed plunger metering pumps are designed for very low flow, high pressure dosing applications where extreme accuracy, repeatability, and mechanical stability are critical.
The PNL Series packed plunger metering pumps are engineered for very high capacity; high pressure chemical dosing applications where mechanical robustness, accuracy, and long-term reliability are essential.
