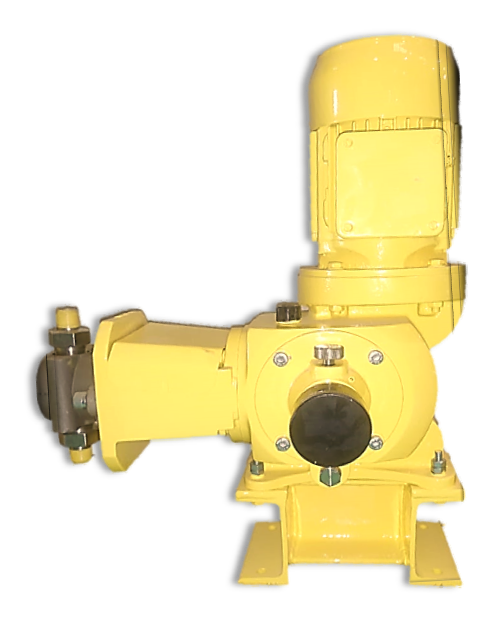

Flow rate up to 192 l/h & pressure up to 90 kg/cm²g - Designed for demanding metering applications, delivering reliable performance at high pressures while conforming to API 675 standards.
Provides ±1% accuracy from 10% to 100% stroke, with ±3% repeatability and ±3% linearity for consistent dosing results.
Variable eccentric drive with lockable micrometer setting - Minimizes pulsation and shock while enabling precise stroke adjustment and secure locking for stable operation.
Flow adjustment from 0–100% while running or stopped - Allows operators to change the dosing rate without interrupting the process and offers a 10:1 turn-down ratio for greater flexibility.
SS316 liquid end with threaded connections - Features corrosion-resistant SS316 wetted parts as standard, alternative material options on request, and a 15 mm stroke length for dependable performance.
Suitable for liquid temperatures up to 120°C, ambient temperatures up to 50°C, viscosities up to 2450 cps, and incorporates oil-bath lubrication for long service life.
Components | Materials |
|---|---|
Liquid end body | SS 316 |
Plunger | SS 316 |
Valve body | SS 316 |
Balls | SS 316 |
Packing | PTFE braided rope |
Y - Strainer | SS 316 |
Standard Motor Data:
Options:
Pump model | Flow max. (l/h) | Pressure max. (kg/cm2g) | Stroke length (mm) | Stroke speed (spm) | Plunger Ø (mm) | End Connections (Suction & Discharge) |
|---|---|---|---|---|---|---|
16A | 4 | 90 | 15 | 30 | 16 | ½”NPT(M) |
16B | 8 | 90 | 15 | 60 | 16 | ½”NPT(M) |
16C | 15 | 90 | 15 | 96 | 16 | ½”NPT(M) |
16D | 24 | 90 | 15 | 152 | 16 | ½”NPT(M) |
16E | 30 | 90 | 15 | 192 | 16 | ½”NPT(M) |
20A | 7 | 60 | 15 | 30 | 20 | ½”BSP(M) |
20B | 15 | 60 | 15 | 60 | 20 | ½”BSP(M) |
20C | 22 | 60 | 15 | 96 | 20 | ½”BSP(M) |
20D | 35 | 60 | 15 | 152 | 20 | ½”BSP(M) |
20E | 44 | 40 | 15 | 192 | 20 | ½”BSP(M) |
25A | 10 | 40 | 15 | 30 | 25 | ½”BSP(M) |
25B | 20 | 40 | 15 | 60 | 25 | ½”BSP(M) |
25C | 35 | 40 | 15 | 96 | 25 | ½”BSP(M) |
25D | 60 | 40 | 15 | 152 | 25 | ½”BSP(M) |
25E | 70 | 25 | 15 | 192 | 25 | ½”BSP(M) |
32A | 18 | 20 | 15 | 30 | 32 | ½”BSP(M) |
32B | 35 | 20 | 15 | 60 | 32 | ½”BSP(M) |
32C | 60 | 20 | 15 | 96 | 32 | ½”BSP(M) |
32D | 95 | 20 | 15 | 152 | 32 | ½”BSP(M) |
32E | 120 | 15 | 15 | 192 | 32 | ½”BSP(M) |
40A | 30 | 15 | 15 | 30 | 40 | ½”BSP(M) |
40B | 60 | 15 | 15 | 60 | 40 | ½”BSP(M) |
40C | 95 | 15 | 15 | 96 | 40 | ½”BSP(M) |
40D | 150 | 15 | 15 | 152 | 40 | ½”BSP(M) |
40E | 190 | 10 | 15 | 192 | 40 | ½”BSP(M) |

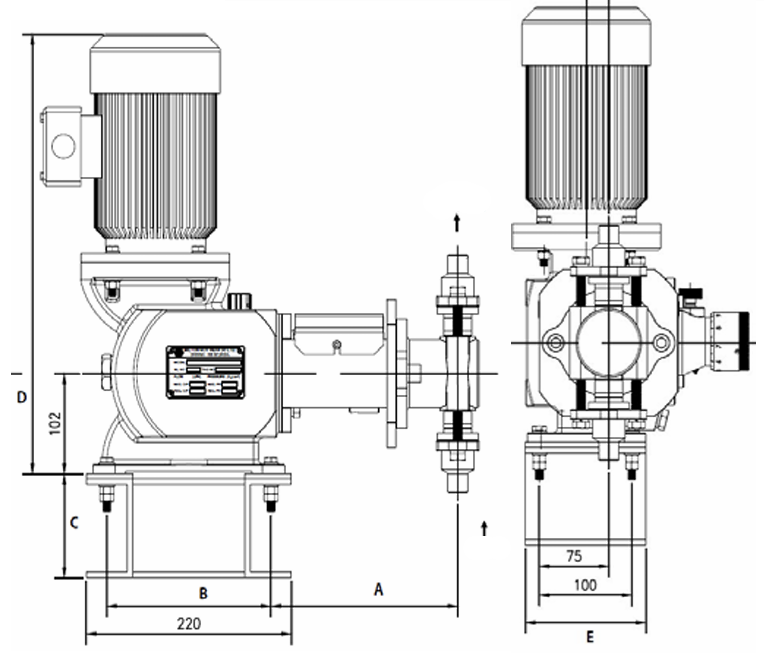

Dimensions (mm) | |||||
|---|---|---|---|---|---|
Pump | A | B | C | D | E |
PN 16-25 | 181 | 176 | 105 | 446 | 130 |
PN 32-40 | 200 | 176 | 105 | 446 | 130 |
Liquid End | Weight (kg) |
|---|---|
Metallic | 45 |
Coagulation/flocculation (injection of ferric chloride, aluminium sulphate, etc.), pH regulation (injection of acids and alkalis), water conditioning before and/or after RO treatment in desalination plant
protection of installation such as boilers and hydraulic systems (corrosion inhibitors, biocides, scale inhibitors, amines…)
injection of additives, injection of co-catalyst, injection of sulphuric acid into water to produce diluted sulphuric acid
Injection of chemicals for separation and treatment of refined products, injection of paraffin inhibitor into fuel storage tanks
injection of biocide, corrosion/scale inhibitors, H2S scavengers… protecting piping and other assets and maintaining production rates, transfer of steam condensate
Injection of enzymes in starch production, injection of caustic soda for process water neutralization in refining and distilling applications

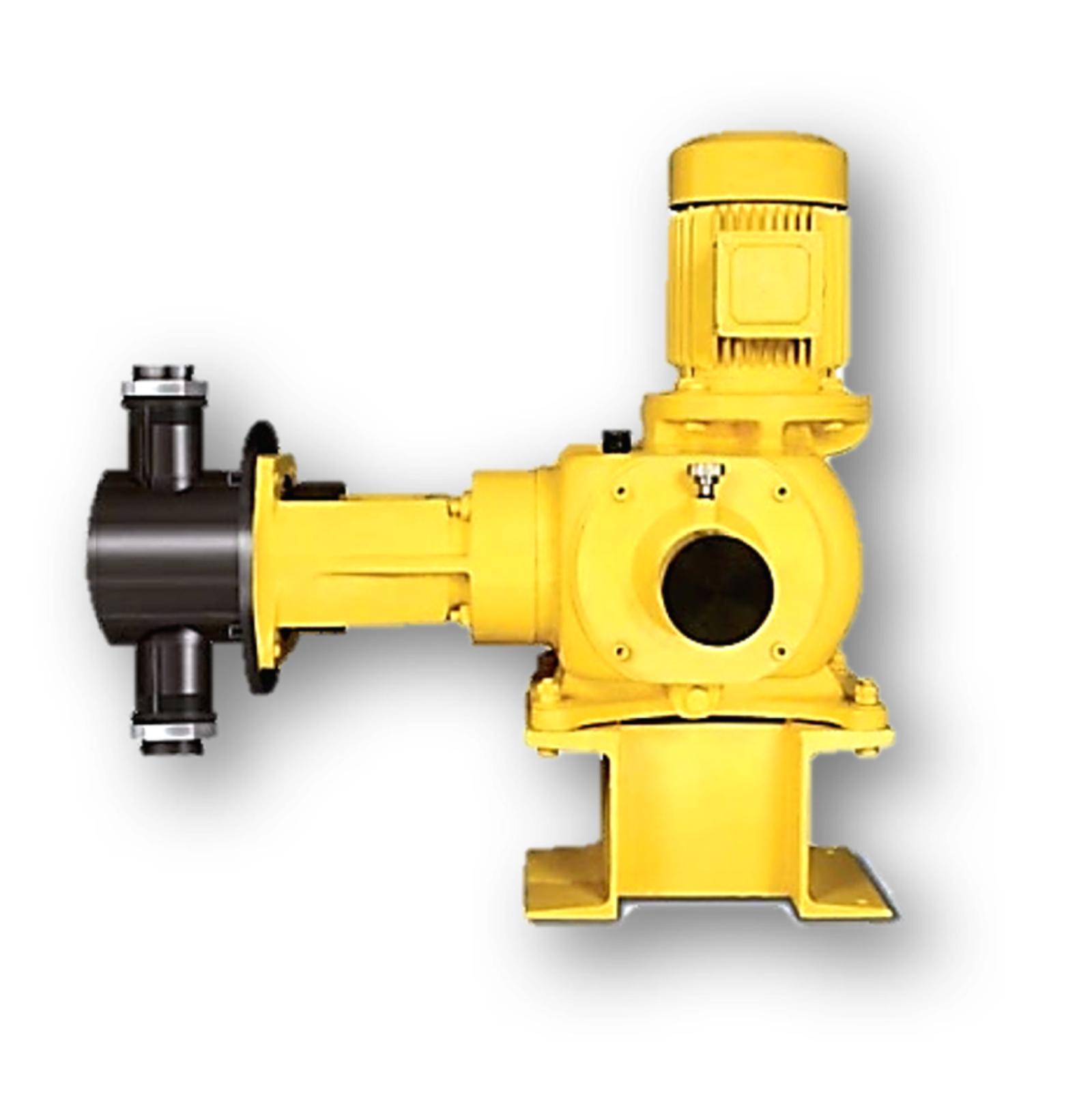

The PNP Series packed plunger metering pumps are designed for medium flow , high pressure dosing applications where accuracy, mechanical reliability, and long service life are essential.

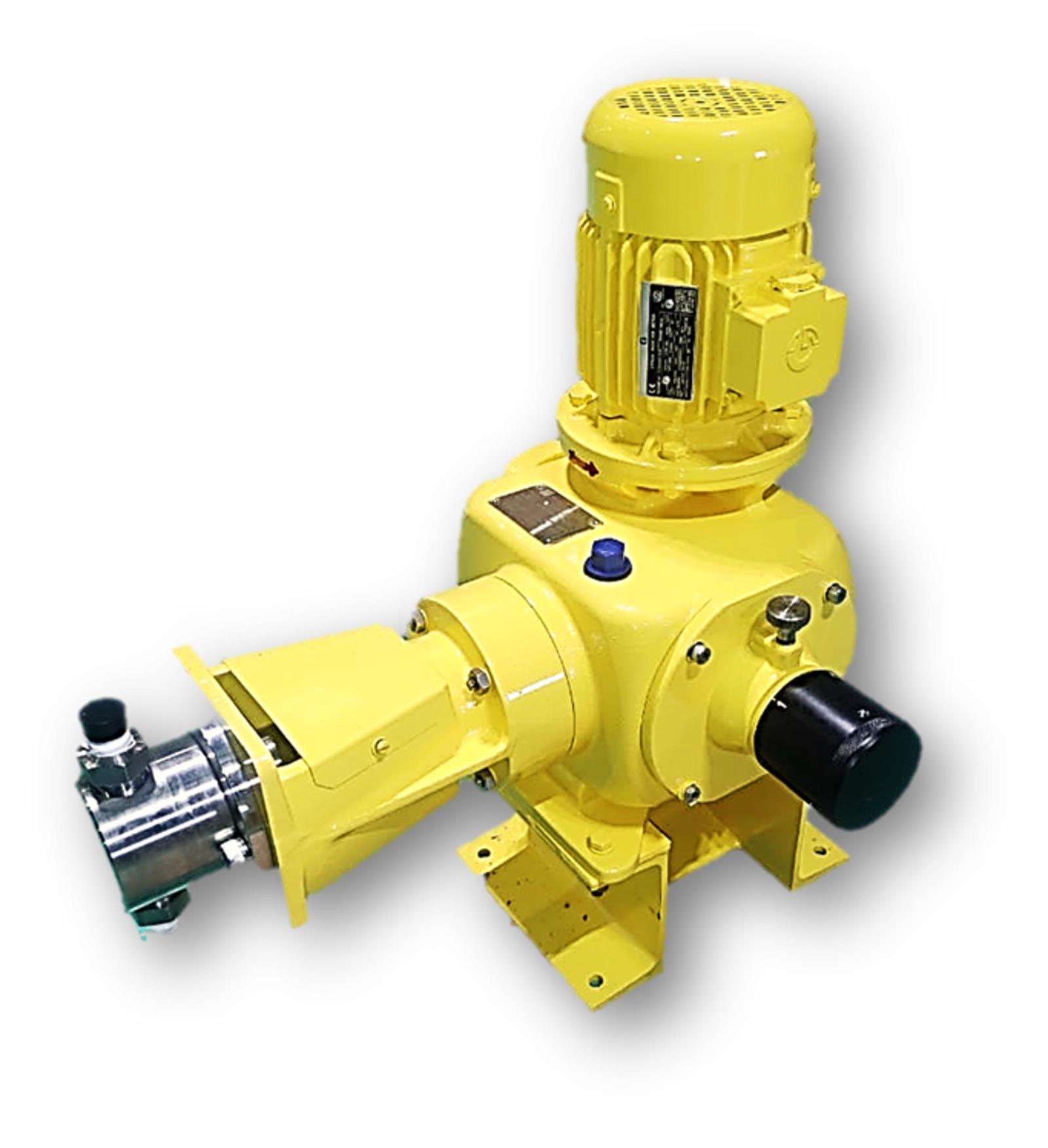

The PNK Series packed plunger metering pumps are designed for high pressure; precision dosing applications where reliability, rugged construction, and accurate flow control are essential.

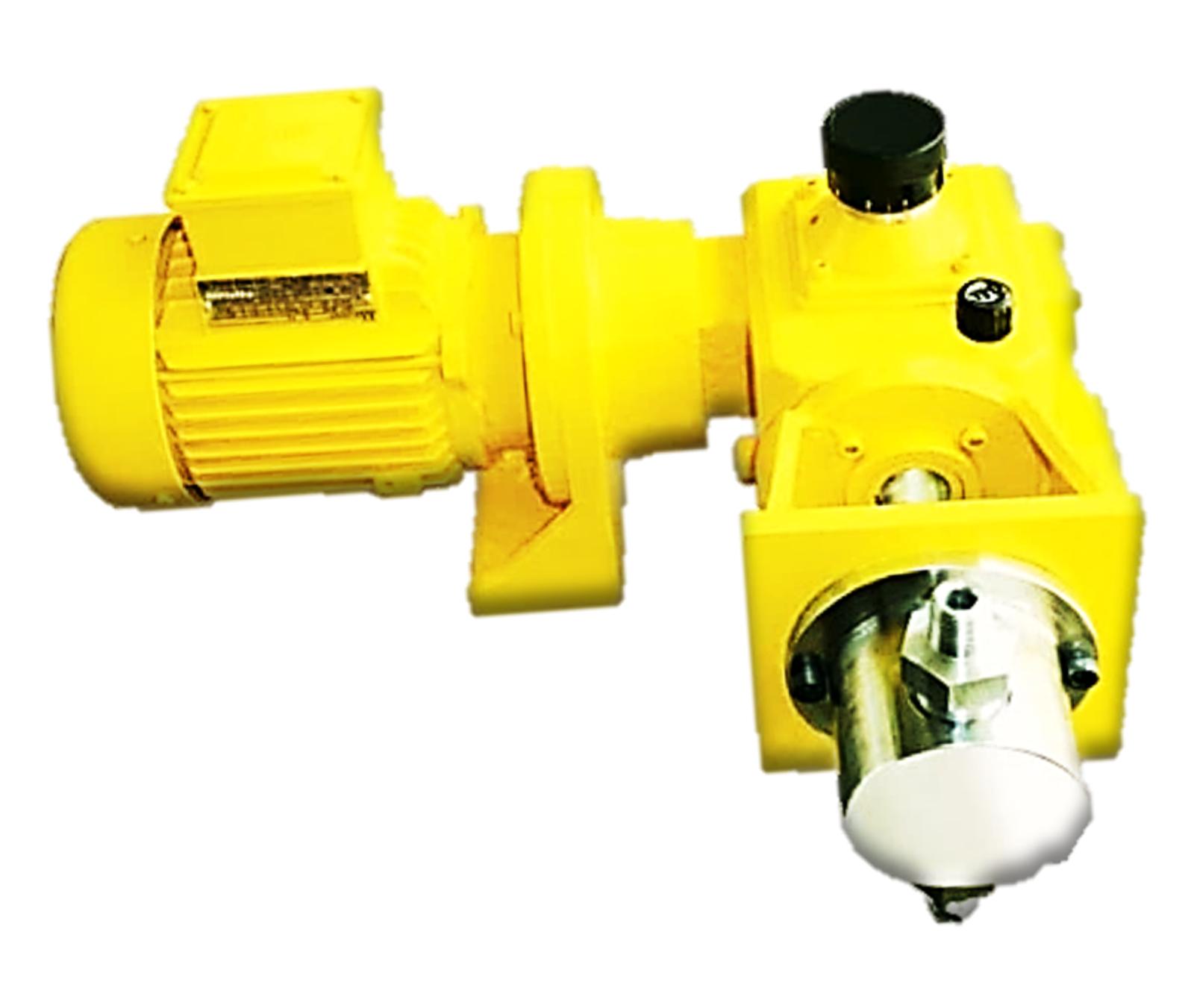

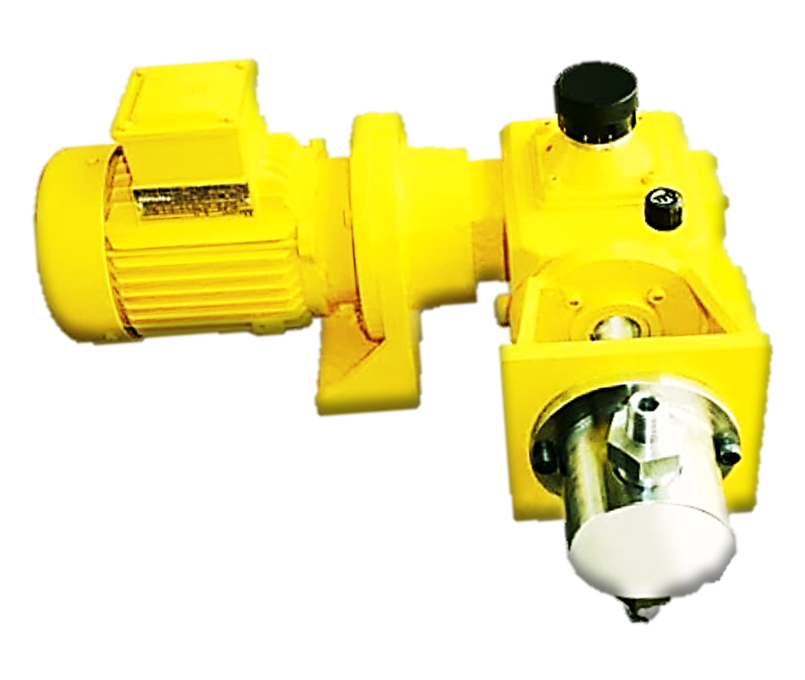

The PNZ Series packed plunger metering pumps are designed for very low flow, high pressure dosing applications where extreme accuracy, repeatability, and mechanical stability are critical.

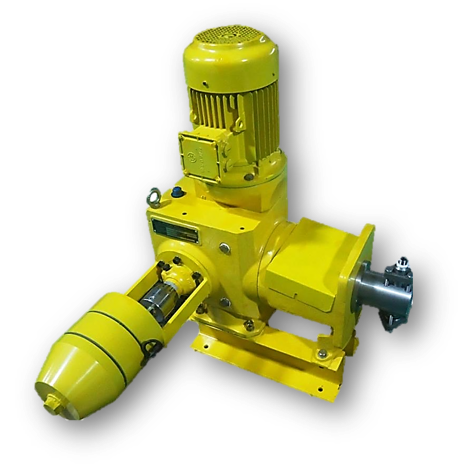

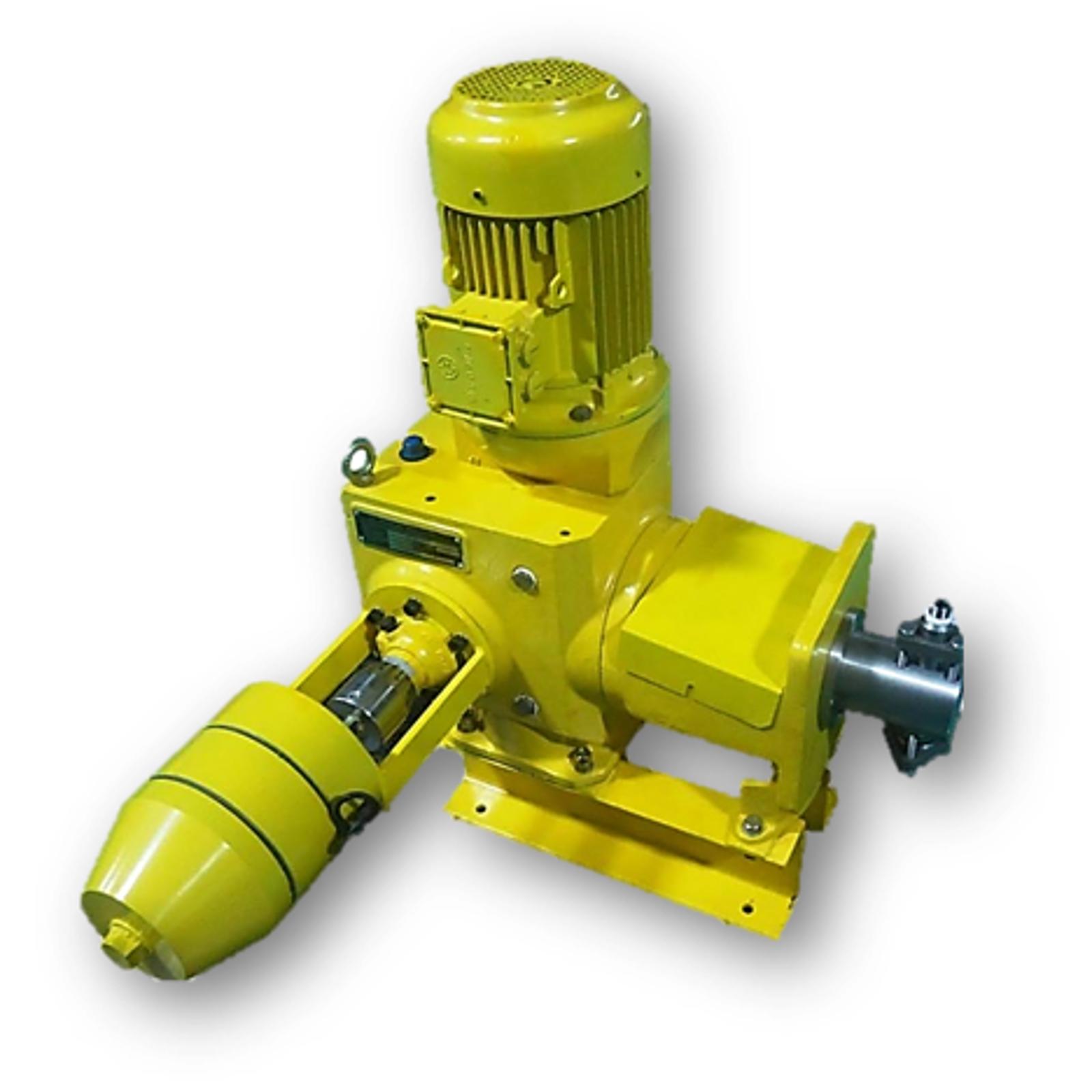

The PNL Series packed plunger metering pumps are engineered for very high capacity; high pressure chemical dosing applications where mechanical robustness, accuracy, and long-term reliability are essential.
