ROBIN top-entry and bottom-entry industrial agitators are custom-made and perfectly attuned to meet the specific characteristics of complex processes in extreme conditions.
Our 60+ years of expertise in designing large and heavy-duty process agitators is based on real-world application experience, guaranteeing optimum process outcomes even in the harshest climate zones and most demanding applications. Our ROBIN mixers are designed to minimize wear on wetted parts, optimize power consumption, and ensure fast, safe maintenance for long-lasting performance.Electric characteristics
Capacities
Operating conditions
Sealings
Hydraulic seal ; Packing ; Lip seal ; Single, double even triple mechanical seal lubricated or with gas back pressure, without contact, magnetic drive
Mounting
Construction materials
Models

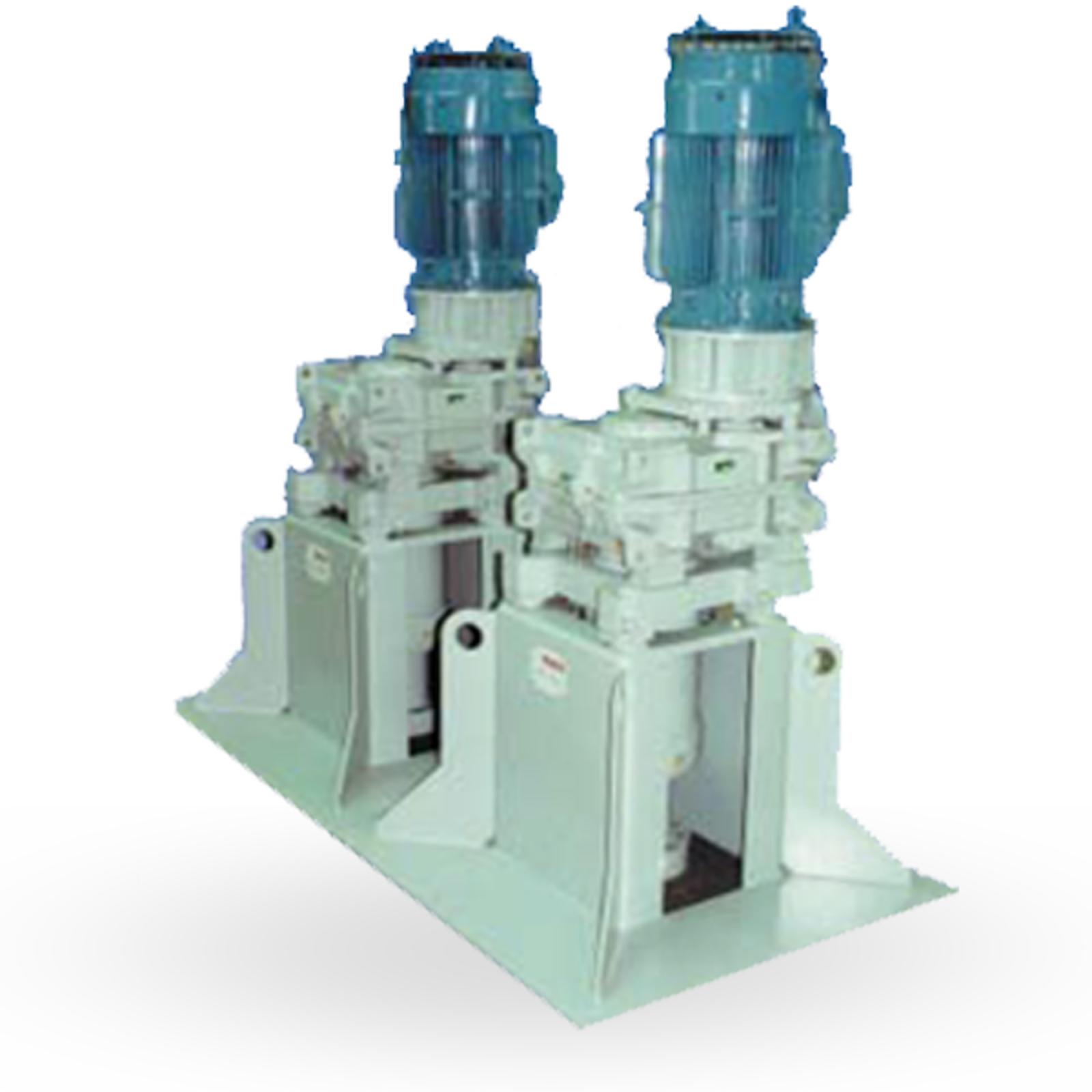

Model A5
For use in an open tank at atmospheric pressure.
Rotation speed
10 to 500 rpm
Rated power
about 0.55 to 500 kW
Impeller diameter
0.20 to 6 m
Impeller type
all kind
Construction material
all machinable metallic material
Pressure use
atmospheric pressure
Temperature
Temperature up to 500°C (932°F)
Pressure with vaccum
Pressure with vaccum at 300 gauge bars
Viscosity
up to 1000 Pas

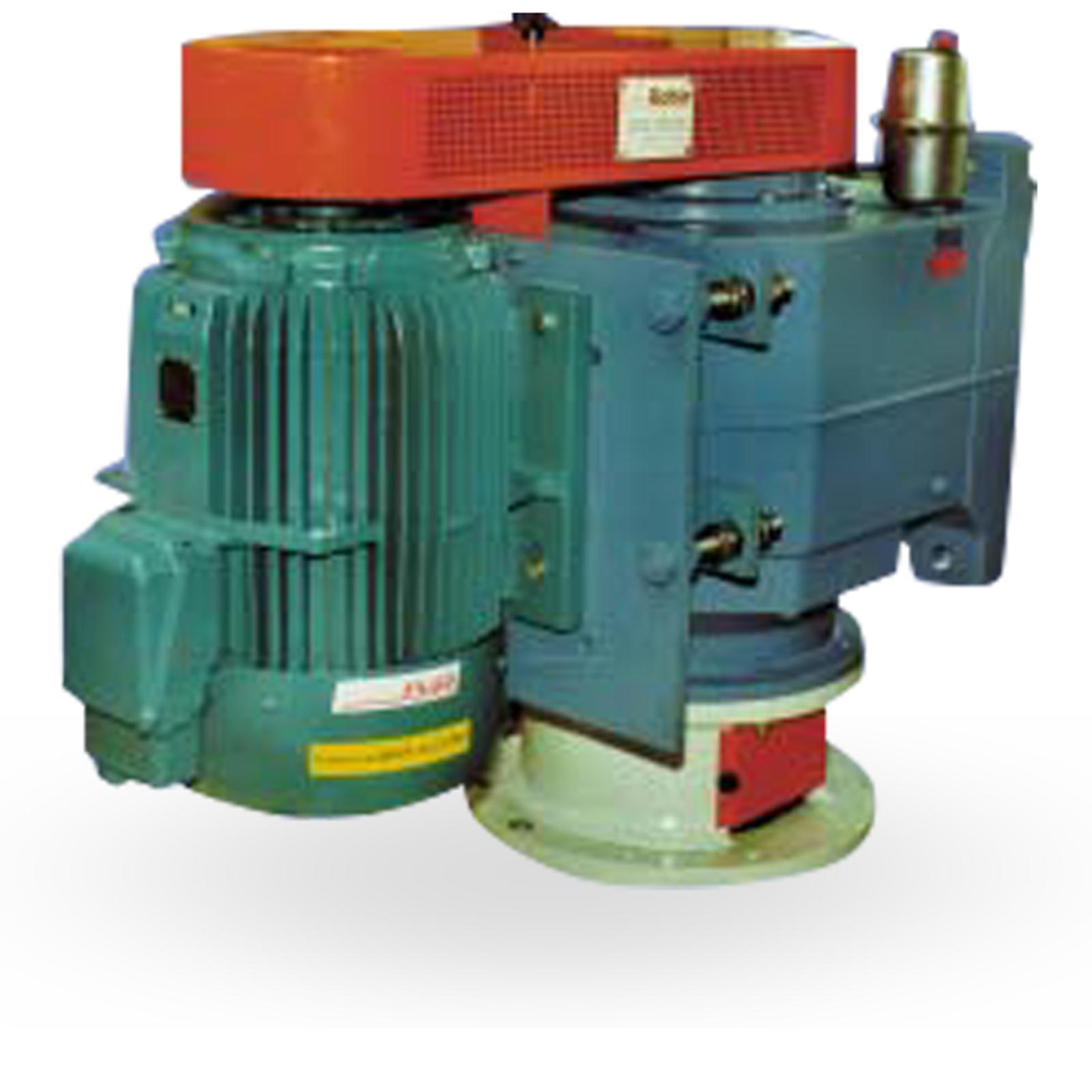

Model B5
For use when a simple tightness is required to avoid contact between the product and the atmosphere (mixing under few mbars of pressure or vacuum or when the product is dangerous or must be kept under inert atmosphere)
Rated power
about 0.55 to 37 kW
Rotation speed
500 to 10 rpm
Impeller diameter
0.20 to 6m
Impeller type
all kind
Construction material
machinable metallic material
Pressure use
few mbar difference with the atmospheric
Model E5
For use in mixing at atmospheric pressure in open tanks
Rated power
about 0.75 to 250 kW
Rotation speed
500 to 10 rpm
Impeller diameter
0.50 to 6m
Impeller type
all kind
Construction material
all machinable metallic material
Pressure use
few mbar difference of the atmospheric pressure

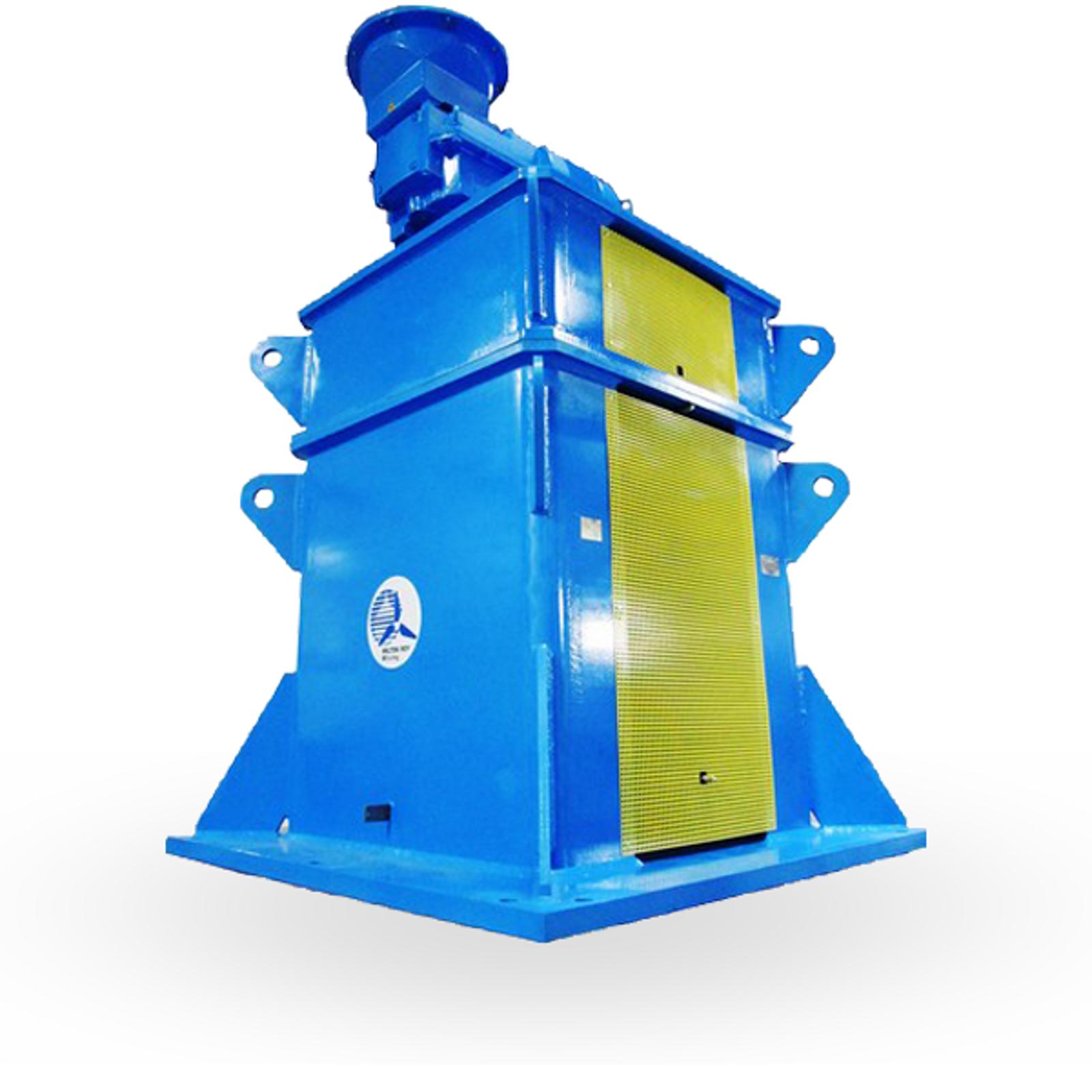

Model F5
For use in all operations processed under pressure or vacuum, or mixing dangerous substances
Rated power
about 0.75 to 250 kW
Rotation speed
500 to 10 rpm
Impeller diameter
0.25 to 6m
Impeller type
all kind
Construction material
all machinable metallic material
Pressure use
full vacuum to approx. 75 Bg (250 Bg with magnetic drive)
Milton Roy Mixing
To load this content, approve your cookie preferences and allow the required cookies.
Applications
Hydrometallurgy
Hydrometallurgy is a chemical process to facilitate metal extraction including recovery of iron mineral, aluminum, zinc, copper, and sterilization of special metals by biochemical treatment. This process requires a large liquid tank capacity in order to obtain the expected chemical reaction. Agitators are an essential device and our Robin agitators can be adapted based upon the desired application such as liquid holding suspension, homogenization, gas dispersion and heat transfer.
Fertilizers
Phosphoric acid is a fertilizer which is primarily used in agriculture. Its production is the result of mixing between natural phosphate and sulfuric acid. This complex process requires an agitator for homogenization; so that the sulfuric acid perfectly reacts with the phosphate in the whole tank. Milton Roy Mixing agitators can be tailored to provide optimal mixing based up the acidity and viscosity levels, and corrosion and abrasiveness of the fluids. Our Robin mixers are resistant to the high temperatures required to melt sulfuric acid and the impellers ensure proper diffusion through the entire tank for a perfect homogenized solution.
Mineralurgy
The processing of natural and synthetic mineral materials requires the storage of calcium carbonate particles to be held in suspension. The complexity of the process lies in the concentration of dry substance which makes the rheological behavior singular; the fluid behaves in a similar way to a pseudoplastic or a Bingham fluid, and in these cases, the fluid will likely need a storage area of 500m3, which represents a significant challenge. Milton Roy Mixing’s agitators are designed with high-diameter axial flow impellers that provide agitation throughout the entire tank. In addition, the agitator can operate at a low speed to obtain a shear that masters the fluid flow.
