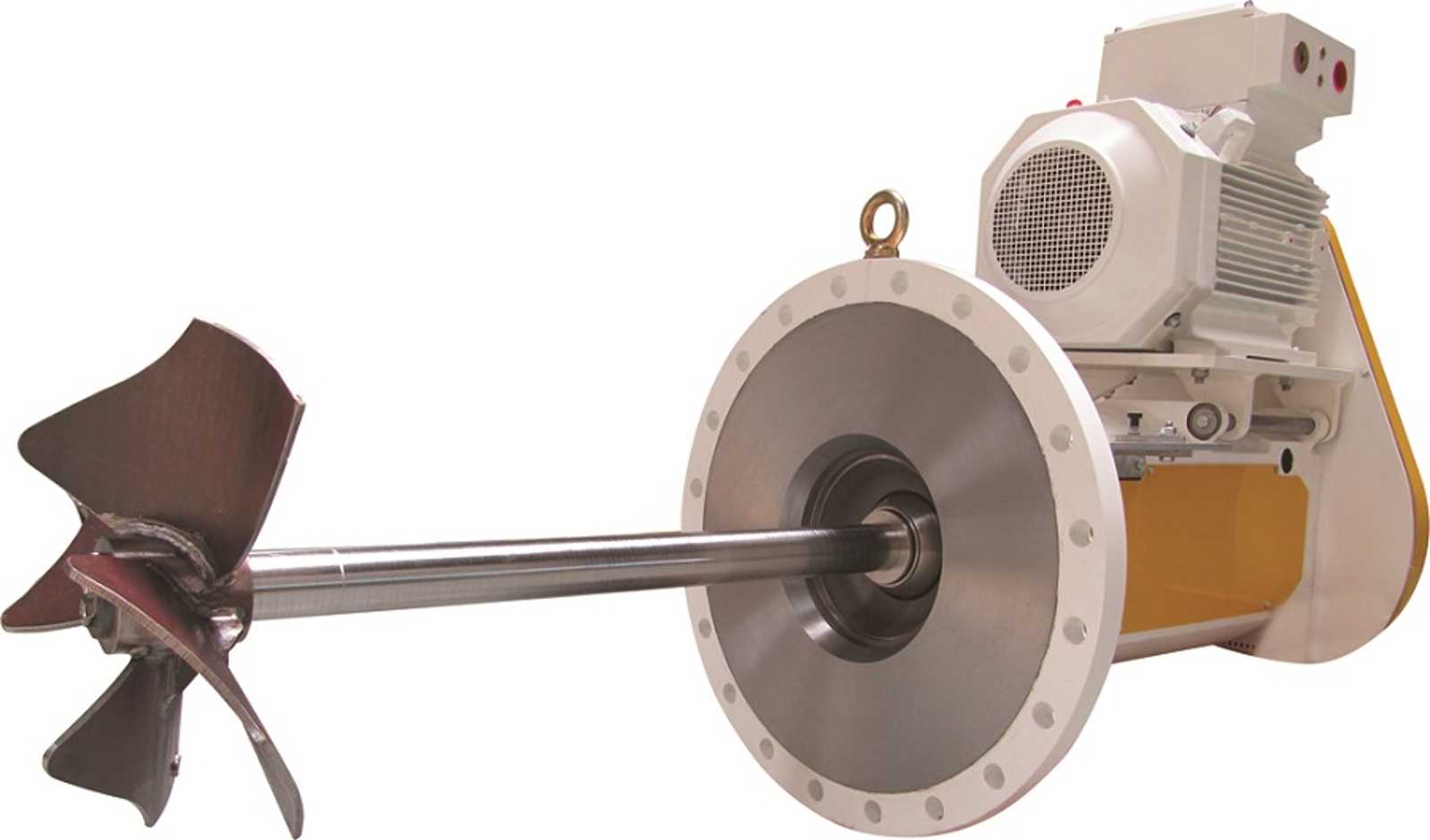

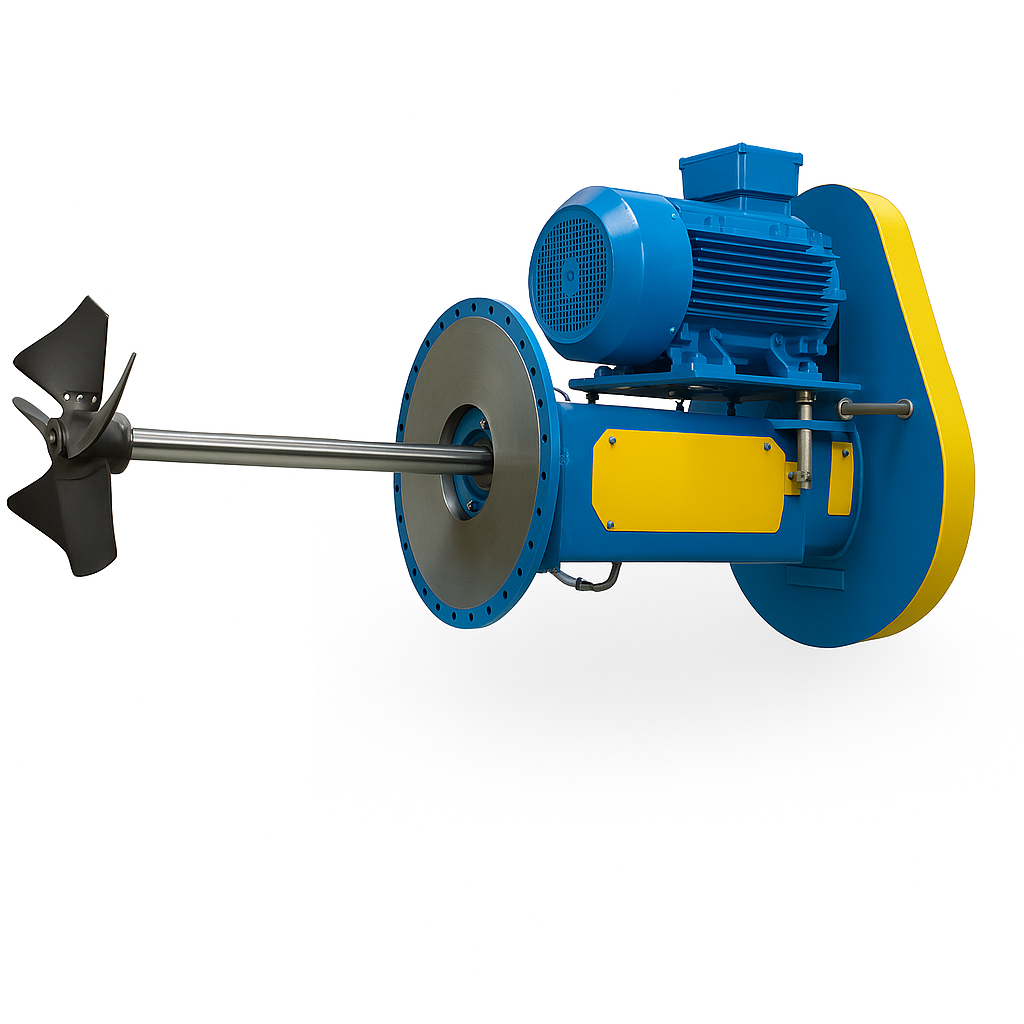

Custom Engineered Side-Entry Mixers

Our side-entry mixer is mounted quickly and easily to the tank flange and delivers the most effective blending results in an extremely efficient unit. Our innovative small diameter SABRE impeller allows for reduced energy consumption and easy installation.

In addition, we can ensure proper agitation using numerical simulation of fluid flows (CFD). This helps to forecast and predict the storage tanks mixing with no dead zone, and lower energy consumption compared to conventional solutions. We can also provide an adjustable agitator to increase the scope enclosure.

The side-entry mixer concept is driven by four top priorities: Safety, Reliability, Process optimization and Easy, cost-effective maintenance.

• Large mixing volumes. The mixer is designed for tanks from 100 up to 210,000 m³ (629 to 1.3 MM barrels). The high liquid jet amplitude propelled by our impeller allows the moving of large volumes using less power.
• Easy installation and maintenance. This compact, side-entry mixer has been designed specifically to mount on the lateral flange of the tank and with lightweight, custom impellers, it can installed quickly and easily. Its exclusive seal shut off device allows for safe, fast, and easy maintenance or replacement of the mechanical seal without emptying the tank.
• Low power consumption. Our innovative, proven SABRE impeller uses less energy to effectively mix the tank contents.

Technical Speficications

• Tank volume: From 629 to 1.3 MM Barrels / From 100 to 210,000 m³

• Wetted part material: 316L S.S. / Abcite coating
• Pumping flow max.: 22,014 gpm / 5,000 m³/h

• Viscosity max.: 1,000 cP
• Density max.: 1.5

The Custom Engineered Side-Entry Mixer series part numbers start with prefix codes "H2C*** ; F5C*** and B3C***". Please see datasheet for full part number configuration options.

Download manual for the catalog of Custom Engineered Side-Entry Mixer series parts
