Adaptable and Reliable Pump | Primeroyal N (PN)

The PRIMEROYAL N (PN) metering pump combines field-proven reliability with precision dosing capabilities across a broad range of industrial processes at flow rates that can reach up to 2,284 gph (8,649 l/h) for pressures up to 14,996 psi (1,034 bar).

The PN is used in many industrial processes due to its modular design which offers several types of liquid ends, capacity control, and other configuration options to meet the specific requirements of your process application.

Precision Dosing

Delivers highly accurate chemical injection with ±1% steady-state accuracy across a 10–100% flow range.

Variable Eccentric Drive

Innovative drive mechanism enables smooth stroke adjustment by repositioning the eccentric shaft center.

High-Pressure Capability

Handles pressures up to 14,996 psi (1034 bar), ideal for demanding industrial applications.

High Flow Performance

Supports flow rates up to 2,605 gph (9863 lph), covering both medium and large-scale processes.

Flexible Flow Control

Manual or remote adjustment with micrometric stroke control for precise dosing—even during operation.

Durable Material Options

Available in 316L Stainless Steel, 17.4-PH, and PVC for compatibility with a wide range of chemicals.

Modular & Compact Design

Customizable with multiple liquid-end options and adaptable configurations, available in vertical or horizontal layouts.

Enhanced Safety & Protection

Leak-proof diaphragm design, integrated overpressure safety valve, and compliance with global safety standards.

Versatile Industrial Applications

Used across oil & gas, chemical processing, refining, water treatment, and general industrial operations.

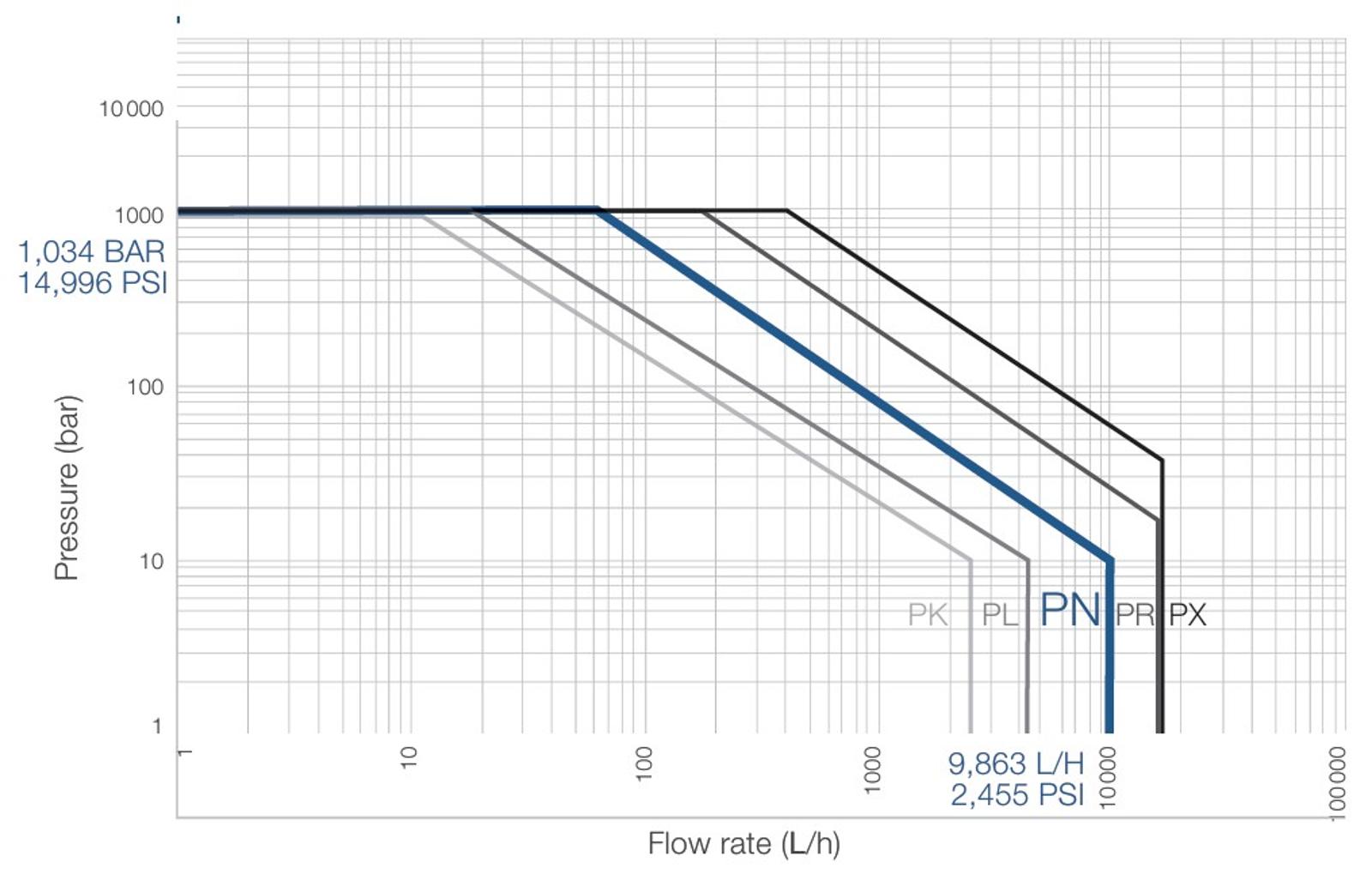

Simplex PRIMEROYAL^® Pumps

	50 Hz motor	6 0 Hz motor
Flow rate	Up to 9,863 L/h	Up to 2,455 gph
Pressure	Up to 1,034 bar	Up to 14,996 psi
Thrust	2,000 daN	4,496
100% stroke	63 mm	2.48 in
Ambient T° Standard	-10 to + 50 °C	+14 to +122 °F
Low T° design	- 40 to +50 °C	- 40 to +122 °F

PTFE diaphragm liquid ends

Widest chemical compatibility
100% leakage-free
High operational safety: integrated relief valve
Improved lifecycle costs
MARS offers a number of advantages over traditional refill systems in hydraulically actuated diaphragm liquid ends: easy start-up without the need to adjust the refill valve, a delicate procedure

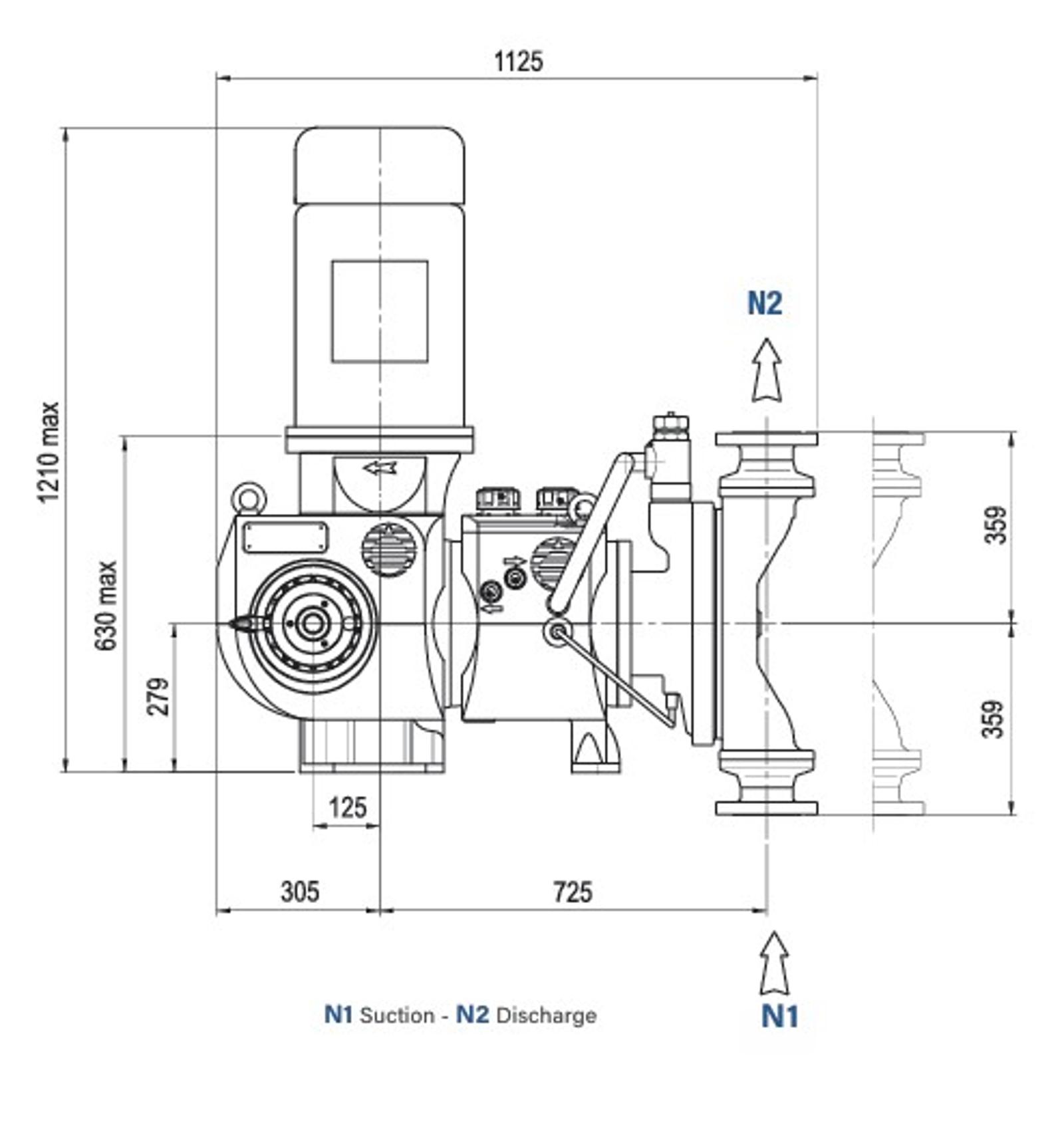

TYPE H1 - H2 - H3 - H4 (HPD)

Universal solution
High hydraulic efficiency

		50 Hz Motor					60 Hz Motor
Plunger diameter code	Swept volume	Stroke speed max	Motor speed max	Flow rate max		Pressure max	Stroke speed max	Motor speed max	Flow rate max		Pressure max	Connections
Plunger diameter code	Swept volume	Stroke speed max	Motor speed max	10 bar	P.max	Pressure max	Stroke speed max	Motor speed max	145 psi	P.max	Pressure max	Connections
Ø	cm³	spm	rpm	l/h		bar	spm	rpm	GPH		psi
Metallic, Type H - Series 6 HP
25	30.9	149	1440	262	155	300	140	1728	65	39	4351	1/2" - VV1 m
Metallic, Type H - Series 6 BP
25	30.9	149	1440	262	235	96	140	1728	65	39	1392	1/2" - VV1 m
32	50.7	149	1440	430	383	87	140	1728	107	95	1261	1" - VV1 m
40	79.2	149	1440	672	599	87	140	1728	167	149	1261	1" - VV1 m
50	123.7	149	1440	1050	936	87	140	1728	261	233	1261	1" - VV1 m
55	149.7	149	1440	1271	1137	84	140	1728	316	283	1218	1" - VV1 m
63	196.4	149	1440	1958	1889	35	140	1728	528	510	507	1" 1/2 - VV1 m
80	316.7	149	1440	3158	3064	35	140	1728	852	827	507	1" 1/2 - VV1 m
90	400.8	149	1440	3997	3879	31	140	1728	847	822	449	1" 1/2 - VV1 m
100	494.8	149	1440	4202	4113	25	140	1728	1046	1024	362	1" 1/2 - VV1 m
110	598.7	149	1440	4977	4375	21	140	1728	1239	1089	304	3" - VV3 150 lb
125	773.1	149	1440	6427	6002	16	140	1728	1600	1494	232	3" - VV3 150 lb
145	1040.3	149	1440	8649	8458	12	140	1728	2153	2105	174	3" - VV3 150 lb
Metallic, Type H - Series 8
28	38.8	175	1440	386	257	300	178	1728	104	69	4351	1" 1/2 - VV1 m
32	50.7	175	1440	505	378	248	178	1728	136	102	3596	1" 1/2 - VV1 m
35	60.6	175	1440	604	479	207	178	1728	163	129	3002	1" 1/2 - VV1 m
40	79.2	175	1440	789	694	159	178	1728	213	187	2306	1" 1/2 - VV1 m
45	100.2	175	1440	999	907	125	178	1728	269	245	1812	1" 1/2 - VV1 m
50	123.7	175	1440	1233	1143	101	178	1728	333	308	1464	1" 1/2 - VV1 m
60	178.1	175	1440	1776	1691	70	178	1728	479	456	1015	1" 1/2 - VV1 m
63	196.4	175	1440	1958	1873	64	178	1728	528	505	928	1" 1/2 - VV1 m
Plastic, Type P
100	494.8	117	1440	3299	3299	10	115	1728	858	858	145	1" 1/2 - VV1 m
125	773.1	117	1440	5047	5047	10	115	1728	1313	1313	145	3" - VV3 150 lb
145	1040.3	117	1440	6791	6791	10	115	1728	1766	1766	145	3" - VV3 150 lb

Metallic diaphragm liquid ends

Challenging products dosing: diffusing, radioactive or abrasive liquids
High pumped liquid temperatures
“Metal to Metal” sealing design assures leak free operation
High operation safety: integrated relief valve

TYPE M2 (MX)

High and extreme pressures
Low flow rates

		50 Hz Motor					60 Hz Motor
Plunger diameter code	Swept volume	Stroke speed max	Motor speed max	Flow rate max		Pressure max	Stroke speed max	Motor speed max	Flow rate max		Pressure max	Connections
Plunger diameter code	Swept volume	Stroke speed max	Motor speed max	10 bar	P.max	Pressure max	Stroke speed max	Motor speed max	145 psi	P.max	Pressure max	Connections
Ø	cm³	spm	rpm	l/h		bar	spm	rpm	GPH		psi
Metallic Double Diaphragm
14	9.7	175	1440	93	45	1034	179	1728	25	12	14996	VV7
16	12.7	175	1440	122	83	828	179	1728	33	22	12009	VV7
19	17.9	175	1440	172	131	604	179	1728	46	35	8760	VV7
22	23.9	175	1440	231	195	448	179	1728	62	52	6497	3/4" VV2 f
27	36.1	175	1440	348	310	303	179	1728	94	83	4394	3/4" VV2 f

TYPE M1 (M)

High pressures
Medium flow rates

		50 Hz Motor					60 Hz Motor
Plunger diameter code	Swept volume	Stroke speed max	Motor speed max	Flow rate max		Pressure max	Stroke speed max	Motor speed max	Flow rate max		Pressure max	Connections
Plunger diameter code	Swept volume	Stroke speed max	Motor speed max	10 bar	P.max	Pressure max	Stroke speed max	Motor speed max	145 psi	P.max	Pressure max	Connections
Ø	cm³	spm	rpm	l/h		bar	spm	rpm	GPH		psi
M single diaphragm
16	12.7	175	1440	122	86	500	179	1728	33	23	7251	1/2" - VV1 m
18	16	175	1440	154	108	500	179	1728	42	29	7251	1" - VV1 m
20	19.8	175	1440	191	134	500	179	1728	51	36	7251	1" - VV1 m
22	23.9	175	1440	230	162	500	179	1728	62	44	7251	1" - VV1 m
