DosaSkid is a modular, plug-and-play metering system, providing a quick, simple solution. Ideally suited for preparing, storing and injecting chemicals in water treatment, industrial wastewater, and petrochemical refining, the DosaSkid system combines quality, reliable pumps with a minimal footprint skid. This version is available only in Europe, Middle East and Africa.
DosaSkid units are available in simplex, duplex, or triplex configurations with or without a tank; two piping and tank materials.
Because of its modular design, it allows easy access to components and modules are 95 % identical to minimize downtime.
Our single source approach means we can offer support services that will ensure proper installation operation and control costs.
With decades of experience and know-how in metering technology, the trade practices and net positive suction head (NPSH) are fully respected, the risks associated with piping connection errors are avoided and the metering equipment and piping are protected.
Treatment of make up, boiler feed and waste waters (injection of limewash, corrosion inhibitor, biocide, antifoam, scale inhibitor, etc.)
Coagulation / flocculation (injection of ferric chloride, aluminium sulphate, WAC, etc.), pH regulation (injection of acids and alkalis)
Injection of additives into fuels from refineries, conditioning of drinking water in utilities (injection of sodium hypochlorite)
.avif?format=pjpeg&width=1600&quality=75&auto=webp)
Cleaning and maintenance of reverse osmosis membranes (injection of hydrochloric acid, sodium hydroxyde, anti-scaling agents and anti-fouling agents)
Pickling (injection of hydrochloric, sulphuric, nitric, phosphoric or hydrofluoric acid), neutralisation (injection of acids or alkalis), waste treatment (injection of sodium bisulphate, bleach, sodium hydroxide, etc.)
Injection of nitric acid in food industry for example
Tubing | 316L stainless steel or C-PVC |
Connections and tubing | OD 1/2” |
Suction line comprising for each pump | 1 isolating valve; |
Suction connection | connection of the suction line of the modules |
Discharge line comprising for each pump | 1 safety valve: protection of piping and dosing pumps; |
Accessories | characteristics determined based on the application |
Flow rate | up to 400 l/h (standard) |
Maximum permissible pressure | up to 64 barg (standard) |
Electric motor-driven pumps | G™M (mechanically actuated diaphragm), |
Liquid ends (according to models) | 316L S. S., C-PVC, PVDF, PP, slurries. Other materials upon request |
Installation | Installation of frequency inverters and actuators possible |
316L S.S. | HDPE |
|---|---|
4 sizes: 200, 500, 1,000 and 1,500 litres | 5 sizes: 60, 120, 250, 500 and 1,000 litres |
Tubing: 316L stainless steel | Tubing: 316L stainless steel or C-PVC |
Filling: Ø 1’’ NPT | Excellent resistance to corrosive chemicals, treated for UV protection |
Drain: Ø 1/2’’ NPT female with isolating valve | Moulded graduation scale up to 500 litres |
Tank with sight flow indicator | Filling: Ø 140 mm for 60 to 500-litre tanks / 185 mm for 1,000-litre tank |
| Drain: Ø 1/2’’ Gas female |
| Max. temperature: +60° C (precautions for corrosive products) |

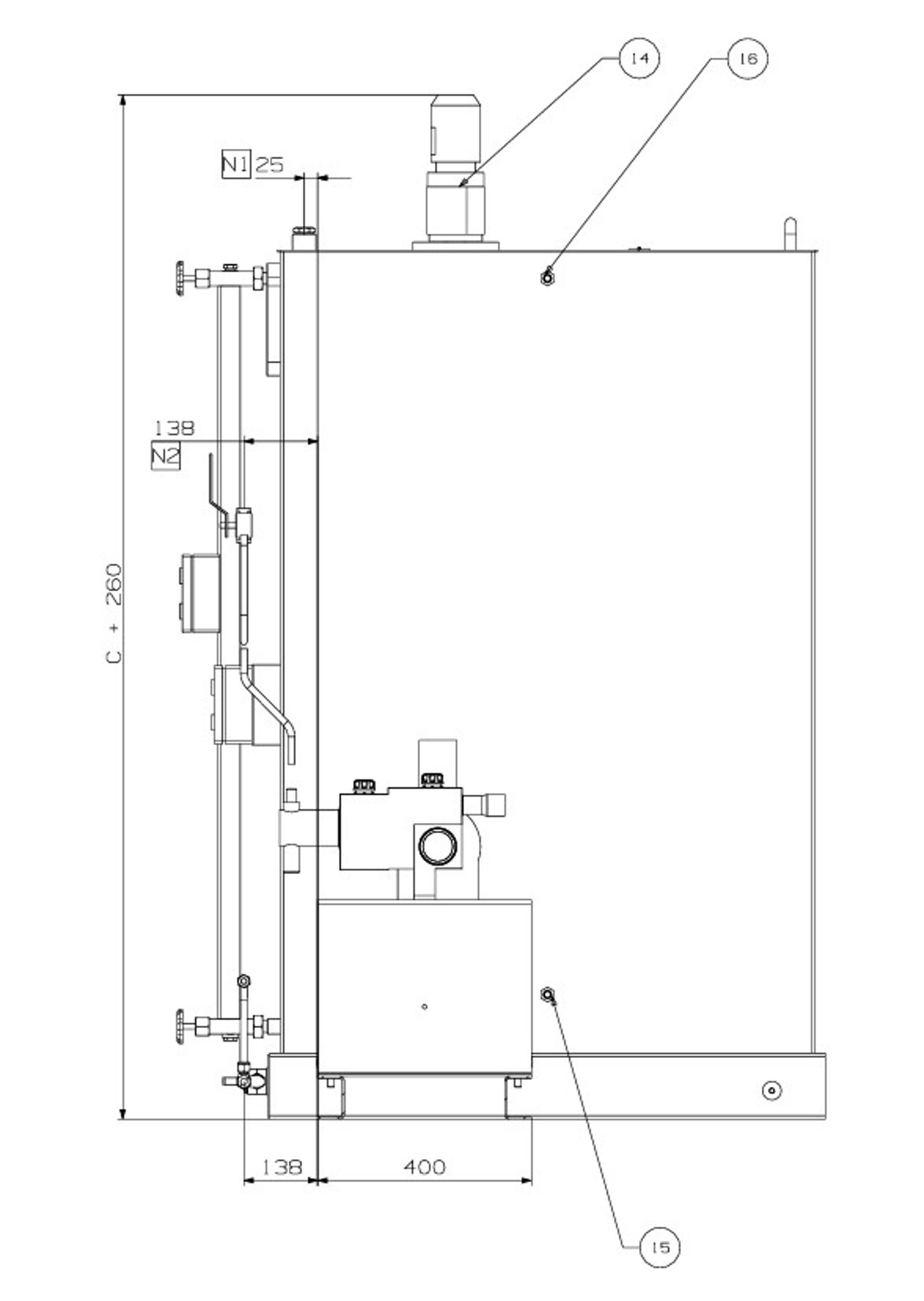

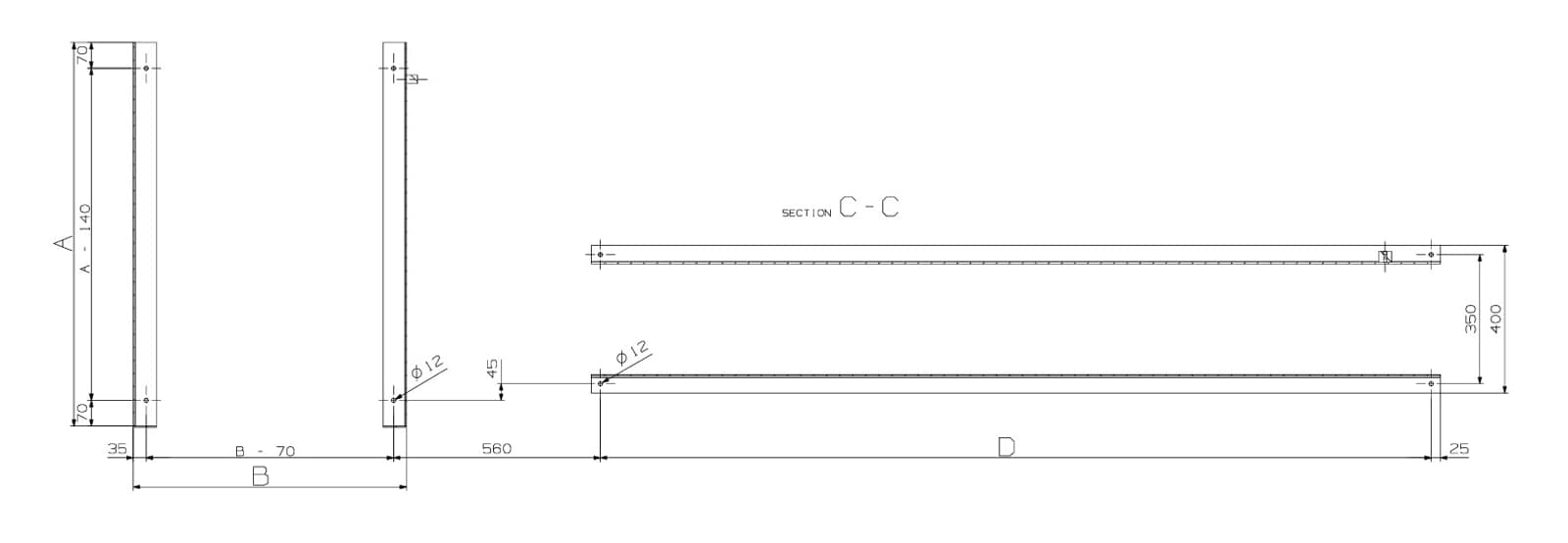

STORAGE TANK MODULE | A (mm) | B (mm) | C (mm) | NET WEIGHT (excluding options) (kg) (*) |
|---|---|---|---|---|
316L S.S. version | ||||
200 litres | 490 | 490 | 1,156 | 66 |
500 litres | 790 | 790 | 1,156 | 116 |
1,000 litres | 1,040 | 740 | 1,656 | 173 |
1,500 litres | 1,040 | 1,040 | 1,656 | 209 |
HDPE version | ||||
60 litres | 252 | 252 | 520 | 11 |
120 litres | 252 | 252 | 865 | 12.5 |
250 litres | 315 | 315 | 1,100 | 19 |
500 litres | 431 | 431 | 1,220 | 33 |
1,000 litres | 578 | 578 | 1,300 | 53 |

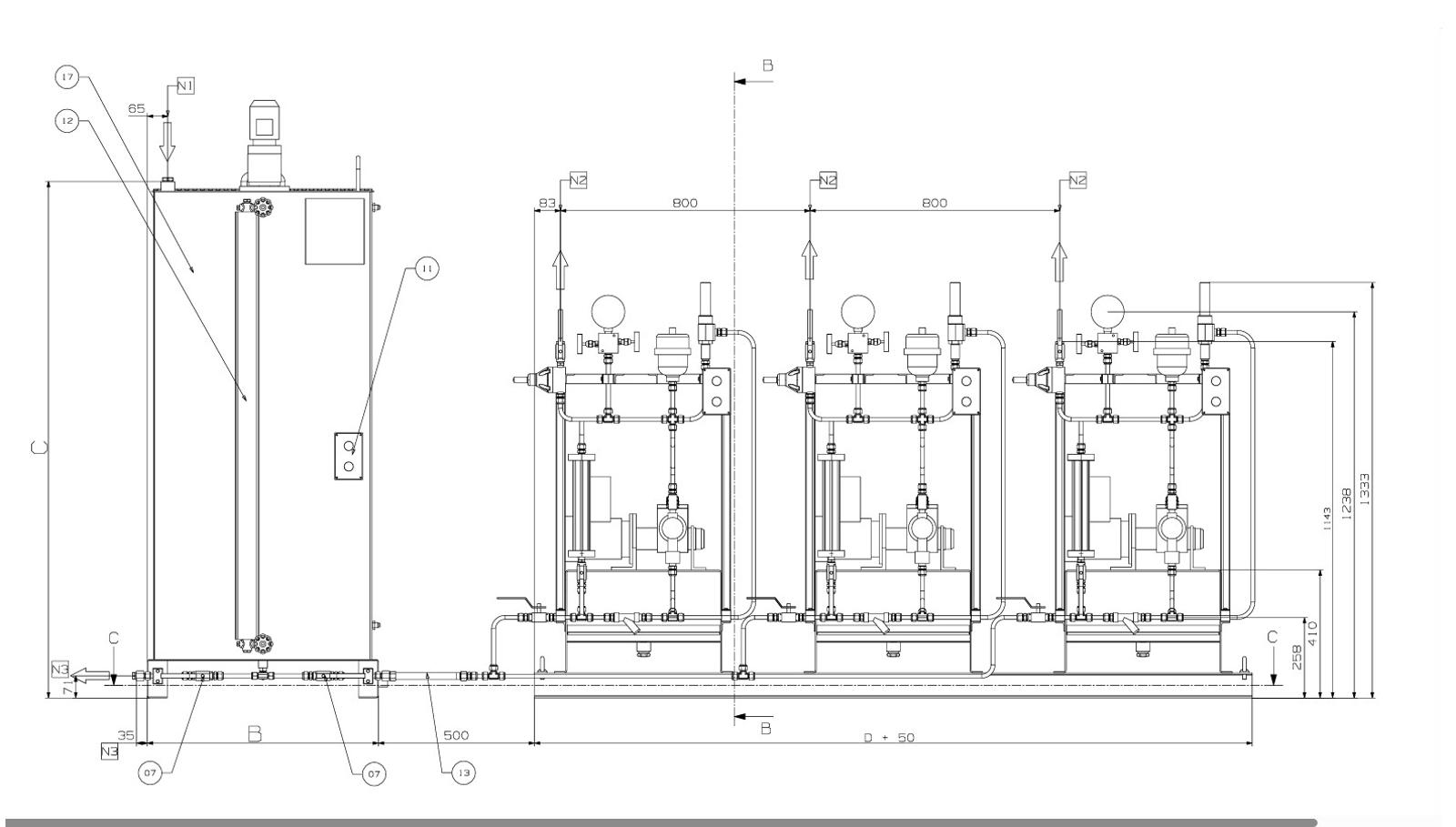

DOSING MODULE | D (mm) | NET WEIGHT (excluding pumps and options) (kg) (*) |
|---|---|---|
1 dosing module | — | 45 |
2 dosing modules | 1 450 | 108 |
3 dosing modules | 2 250 | 160 |

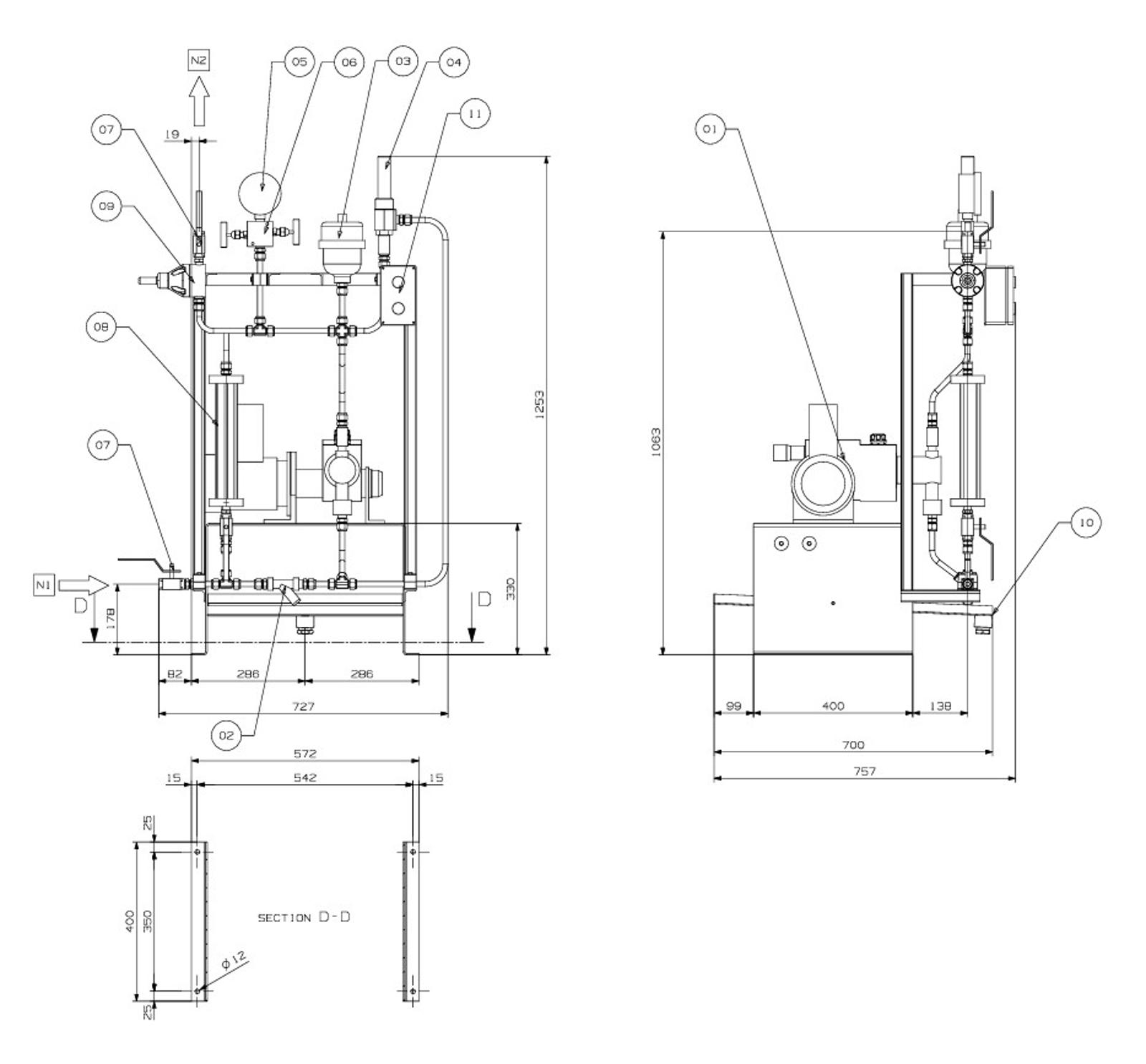

ITEM | DESCRIPTION |
|---|---|
N1 | Filling |
N2 | Discharge |
N3 | Drain |
Standard arrangement | |
7 | Isolating valve |
12 | Sight flow indicator (316L S.S. tank only) |
17 | Storage tank (chemical injection package only) |
Options | |
11 | ON/OFF control box |
13 | Connecting hose |
14 | Electric mixer |
15 | Low level detector |
16 | High level detector |
