The PRIMEROYAL X (PX) provides accurate dosing of a broad spectrum of fluids at pressures up to 1,029 bar (14,924 psi) and a maximum flow rate of up to 16,490 l/h (4,356 GPH) per dosing head. Available in vertical or horizontal motor configurations and with ability to accommodate three types of liquid ends, the PRIMEROYAL X can meet the specific performance requirements of numerous industrial applications.
When high pressures and high flow rates are essential, the PRIMEROYAL X (PX) is the ultimate solution!
Designed for high-stakes applications, delivering consistent and dependable results under demanding conditions.
Withstands pressures up to 14,924 psi (1,029 bar) for diaphragm and 14,132 psi (980 bar) for plunger liquid ends.
Achieves up to 4,356 gph (16,490 lph) for diaphragm and 334 gph (1,268 lph) for plunger configurations.
Built using 316L Stainless Steel and 17.4-PH, ensuring durability and resistance in harsh environments.
Delivers ±1% accuracy with repeatable flow control across 10%–100% capacity range.
Adjust flow easily with manual or remote control, even during operation.
Reduces pulsations, optimizes energy use, and enables multi-product injection in a single system.
Highly configurable with multiple liquid ends, valves, and connection options to match application needs.
Available in vertical or horizontal motor configurations, ideal for tight installation spaces.
Leak-proof diaphragm design with 20,000+ hours service life and integrated over-pressure protection.
Engineered for operation in offshore, desert, saline, and low-temperature environments.
Features the patented MARS system, enabling fast and simple maintenance without complex adjustments.
| 50 Hz motor | 6 0 Hz motor |
|---|---|---|
Flow rate | Up to 16,490 L/h | Up to 4,198 gph |
Pressure | Up to 1,029 bar | Up to 14,924 psi |
Thrust | 6,000 daN | 13,488 |
100% stroke | 120 mm | 4.72 in |
Ambient T° Standard | -10 to + 50 °C | +14 to +122 °F |
Low T° design | - 40 to +50 °C | - 40 to +122 °F |
|
| 50 Hz Motor | 60 Hz Motor |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Plunger diameter code | Swept volume | Stroke speed max | Motor speed max | Flow rate max | Pressure max | Stroke speed max | Motor speed max | Flow rate max | Pressure max | Connections | ||
10 bar | P.max | 145 psi | P.max | |||||||||
Ø | cm3 | spm | rpm | l/h | bar | spm | rpm | GPH | psi |
| ||
Metallic, Type HX | ||||||||||||
55 | 285.1 | 146 | 1440 | 2372 | 1912 | 252 | 140 | 1728 | 603 | 486 | 3654 | 2" - VV2 m |
60 | 339.3 | 146 | 1440 | 2823 | 2367 | 212 | 140 | 1728 | 717 | 601 | 3074 | 2" - VV2 m |
63 | 374.1 | 146 | 1440 | 3113 | 2659 | 192 | 140 | 1728 | 791 | 675 | 2784 | 2" - VV2 m |
65 | 398.2 | 146 | 1440 | 3313 | 2861 | 180 | 140 | 1728 | 842 | 727 | 2622 | 2" - VV2 m |
70 | 461.8 | 146 | 1440 | 3843 | 3397 | 155 | 140 | 1728 | 976 | 863 | 2248 | 2" - VV2 m |
75 | 530.1 | 146 | 1440 | 4411 | 3969 | 135 | 140 | 1728 | 1121 | 1008 | 1958 | 2" - VV2 m |
80 | 603.2 | 146 | 1440 | 5019 | 4581 | 119 | 140 | 1728 | 1275 | 1164 | 1725 | 3" - VV3 |
85 | 680.9 | 146 | 1440 | 5666 | 5236 | 105 | 140 | 1728 | 1440 | 1330 | 1522 | 3" - VV3 |
90 | 763.4 | 146 | 1440 | 6353 | 5926 | 94 | 140 | 1728 | 1614 | 1505 | 1363 | 3" - VV3 |
95 | 850.6 | 146 | 1440 | 7078 | 6659 | 84 | 140 | 1728 | 1798 | 1692 | 1218 | 3" - VV3 |
100 | 942.5 | 146 | 1440 | 7843 | 7428 | 76 | 140 | 1728 | 1992 | 1887 | 1102 | 3" - VV3 |
105 | 1039.1 | 146 | 1440 | 8647 | 8238 | 69 | 140 | 1728 | 2197 | 2093 | 1000 | 3" - VV3 |
110 | 1140.4 | 146 | 1440 | 9490 | 9087 | 63 | 140 | 1728 | 2411 | 2308 | 913 | 4" |
115 | 1246.4 | 146 | 1440 | 10372 | 9982 | 57 | 140 | 1728 | 2635 | 2536 | 826 | 4" |
120 | 1357.2 | 146 | 1440 | 11294 | 10906 | 53 | 140 | 1728 | 2869 | 2770 | 768 | 4" |
125 | 1472.6 | 146 | 1440 | 12255 | 11882 | 48 | 140 | 1728 | 3113 | 3018 | 696 | 4" |
130 | 1592.8 | 146 | 1440 | 13255 | 12884 | 45 | 140 | 1728 | 3367 | 3273 | 652 | 4" |
135 | 1717.7 | 146 | 1440 | 14294 | 13940 | 41 | 140 | 1728 | 3631 | 3541 | 594 | 4" |
140 | 1847.3 | 146 | 1440 | 15372 | 15016 | 39 | 140 | 1728 | 3905 | 3815 | 565 | 4" |
145 | 1981.6 | 146 | 1440 | 16490 | 16147 | 36 | 140 | 1728 | 4189 | 4102 | 522 | 4" |
TYPE M2 (MX)
|
| 50 Hz Motor | 60 Hz Motor |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Plunger diameter code | Swept volume | Stroke speed max | Motor speed max | Flow rate max | Pressure max | Stroke speed max | Motor speed max | Flow rate max | Pressure max | Connections | ||
10 bar | P.max | 145 psi | P.max | |||||||||
Ø | cm3 | spm | rpm | l/h | bar | spm | rpm | GPH | psi |
| ||
Metallic, Type MX | ||||||||||||
25 | 58.9 | 175 | 1440 | 569 | 2367 | 1029 | 175 | 1728 | 150 | 92 | 14924 | VV 7 |
30 | 84.8 | 175 | 1440 | 819 | 2367 | 729 | 175 | 1728 | 217 | 159 | 10573 | VV 7 |
31 | 90.6 | 175 | 1440 | 874 | 2659 | 694 | 175 | 1728 | 231 | 178 | 10065 | VV 7 |
33 | 102.6 | 175 | 1440 | 991 | 725 | 597 | 175 | 1728 | 262 | 192 | 8658 | VV 7 |
35 | 115.5 | 175 | 1440 | 1115 | 855 | 544 | 175 | 1728 | 295 | 225 | 7890 | VV 7 |
38 | 136.1 | 175 | 1440 | 1314 | 1050 | 457 | 175 | 1728 | 347 | 276 | 6628 | VV2 f |
42 | 166.3 | 175 | 1440 | 1606 | 1354 | 386 | 175 | 1728 | 424 | 358 | 5598 | VV2 f |
47 | 208.2 | 175 | 1440 | 2011 | 1748 | 302 | 175 | 1728 | 532 | 462 | 4380 | VV2 f |
Simplex configuration
Version | Net weight (*) | Gross weight (*) | Packing | |||
|---|---|---|---|---|---|---|
| kg | lb | kg | lb | (L x W x H) mm | (L x W x H) in |
Simplex - P4 (NX) liquid end | 1270 | 2800 | 1600 | 3528 | 1950 x 1320 x 2100 | 76.7 x 52 x 82.7 |
* Approximately
_liquid_end_-_PX.png?format=pjpeg&width=1600&quality=75&auto=webp)

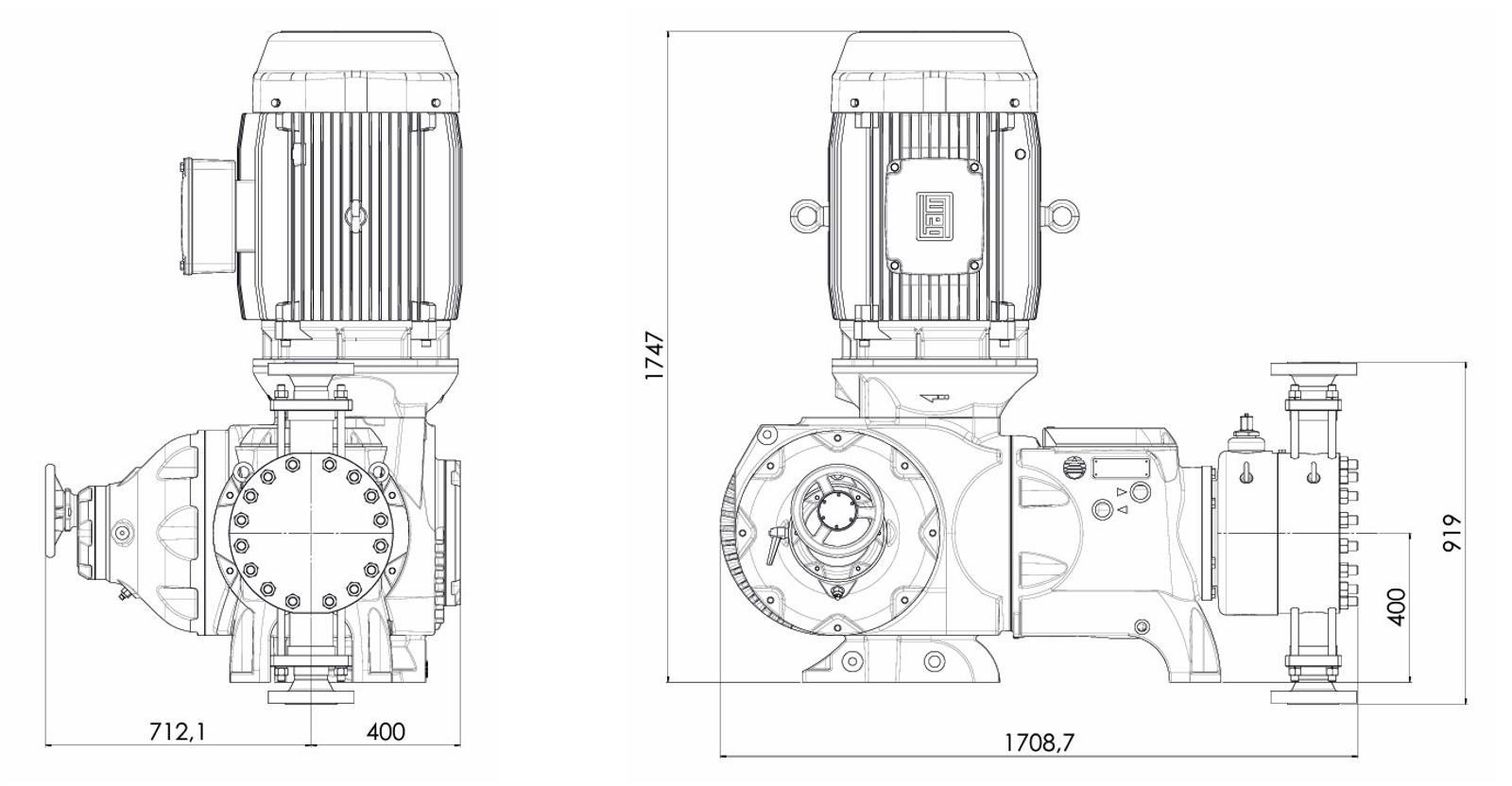

Simplex configuration
Version | Net weight (*) | Gross weight (*) | Packing | |||
|---|---|---|---|---|---|---|
| kg | lb | kg | lb | (L x W x H) mm | (L x W x H) in |
Simplex - HX liquid end | 1570 | 3462 | 1870 | 4123 | 1950 x 1320 x 2050 | 76.7 x 52 x 80.7 |
* Approximately

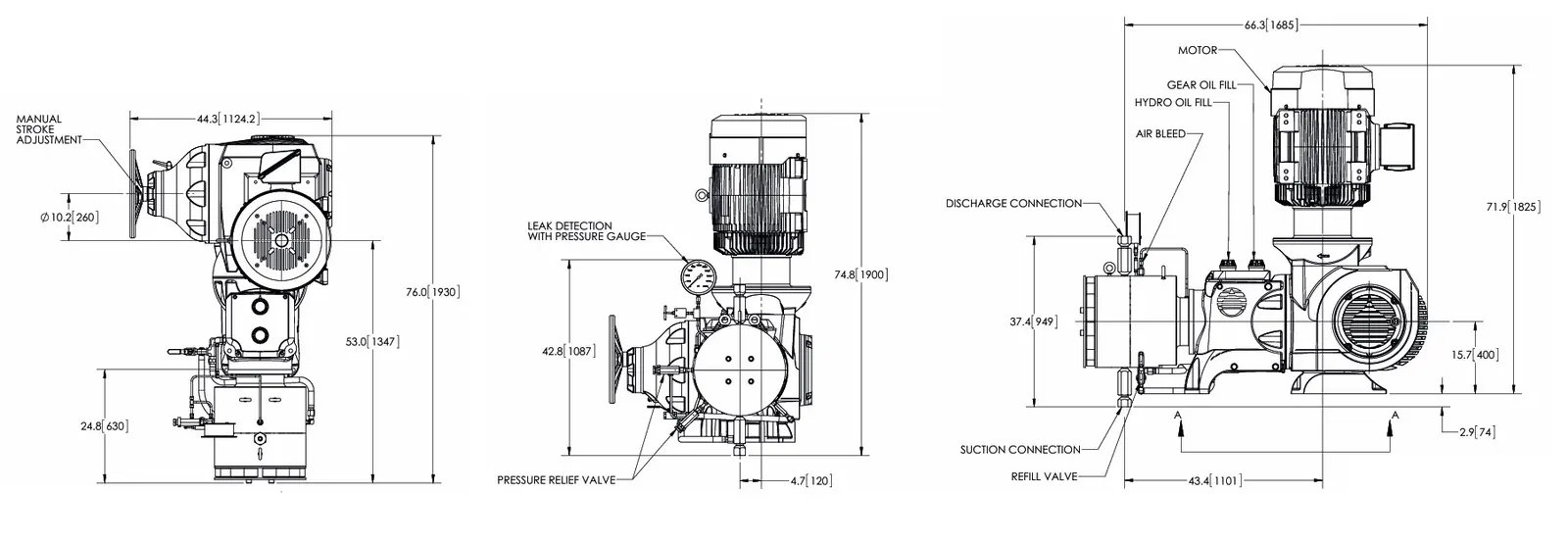

Simplex configuration
Version | Net weight (*) | Gross weight (*) | Packing | |||
|---|---|---|---|---|---|---|
| kg | lb | kg | lb | (L x W x H) mm | (L x W x H) in |
Simplex - MX liquid end | 1690 | 3726 | 2080 | 4586 | 2180 x 1320 x 2250 | 85.8 x 52 x 88.6 |
* Approximately
.jpg?format=pjpeg&width=1600&quality=75&auto=webp)
