The MAXROY D is a rugged, industrial grade of dosing pumps designed for the toughest chemical processing applications. Its cast iron housing with chemical resistant coating enables the pump to be used in the harshest environments while the absence of contour plates enables all types of fluids to be dosed: slurry, viscous, clear, corrosive, toxic, volatile, abrasive, inflammable, etc.
Flow rate up to 64 l/h. Pressure up to 28 bar. Maximum temperature for metallic liquid end is +90, and for plastic liquid end is +50.
Engineered for reliability, this metering pump operates in ambient temperatures from -10°C to +50°C (316L S.S. and PVDF) and 0°C to +40°C (PVC). It offers adjustable flow from 0–100% during operation, ensuring ±1% accuracy and long diaphragm life exceeding 20,000 hours.
Achieve precise dosing with adjustable flow control from 0 to 100% whether running or stopped. Designed with an internal safety valve, optional relief settings, and suction lift up to 1 meter, it ensures dependable performance across demanding environments.
Built for durability, this pump features single or double diaphragm options with a lifespan exceeding 20,000 hours. It includes a factory-set internal safety valve and supports suction pressures up to 2 bar, ensuring safe and efficient operation.
Designed to meet API 675 standards, this high-performance pump supports multiplexing and handles diverse fluid conditions. Its precision accuracy (±1%) and customizable configurations make it ideal for complex industrial dosing systems.
For hazardous environments, this explosion-proof pump complies with ATEX II 2 G Ex h IIC T4 Gb X standards. It combines robust construction, precise flow adjustment, and versatile diaphragm options for safe, regulated operation.

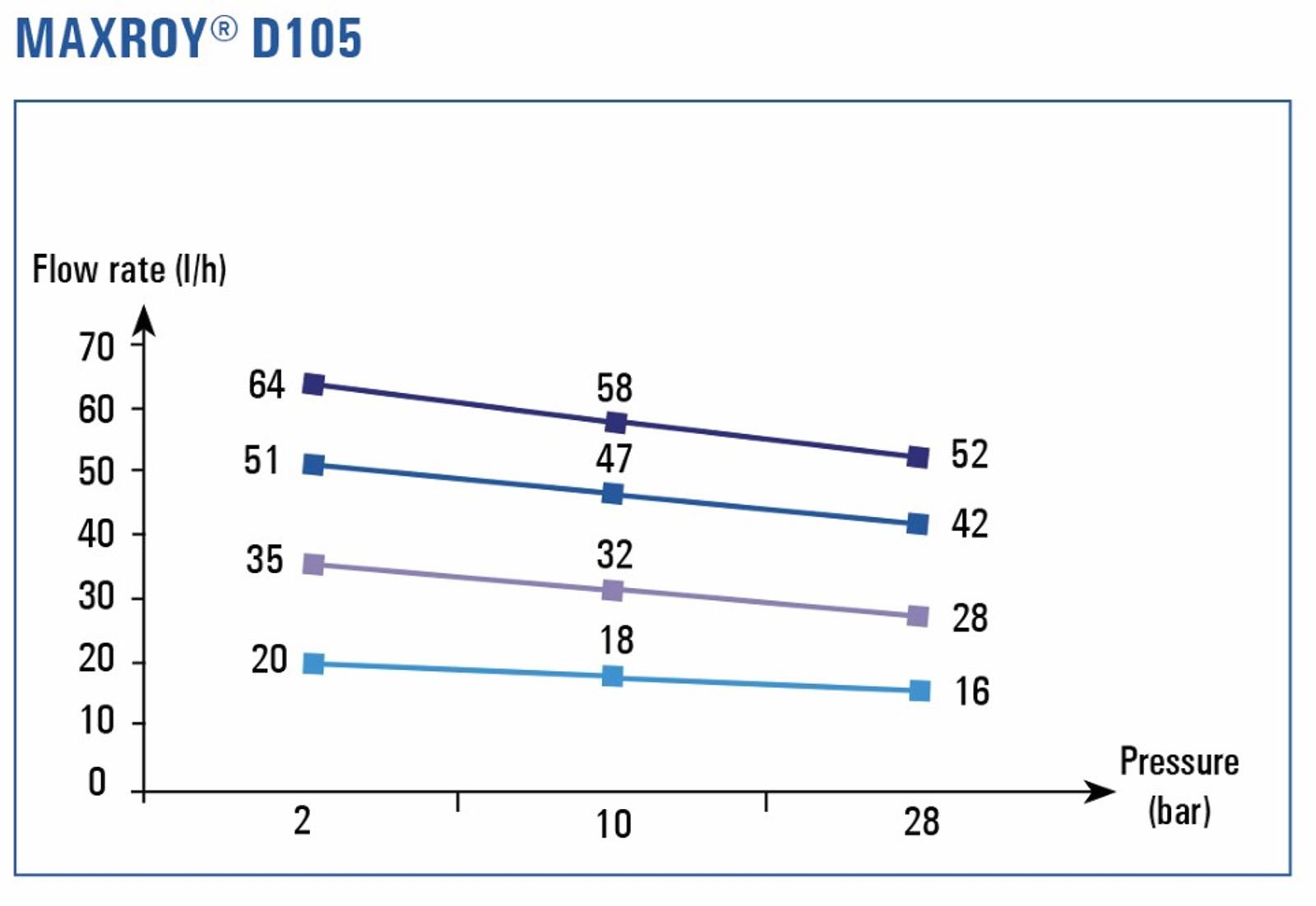

Plastic liquid end | Metallic liquid end | Stroke speed (spm)(1) | Gear | Plunger Ø (mm) | Diaphragm Ø (mm) | Swept volume (cm3)(3) |
|---|---|---|---|---|---|---|
Flow rate at 10 bar (l/h) | Flow rate at 28 bar (l/h) | |||||
18 | 16 | 58 | 1/25 | 22 | 105 | 7.2 |
32 | 28 | 96 | 1/15 | 22 | 105 | 7.2 |
47 | 42 | 144 | 1/10 | 22 | 105 | 7.2 |
58 | 52 | 180 (2) | 1/8 | 22 | 105 | 7.2 |
(1) Stroke rates are given for a motor speed of 1440 rpm. Flow and stroke rates increase by 20% for 60 Hz motor.
(2) Do not use with 60 Hz motor.
(3) Theoretical swept volume.
COMPONENTS \ CONSTRUCTION | PVC (1) | 316L (2) |
|---|---|---|
Liquid end body | PVC | 316L |
Liquid end body | PVC | 316L |
Seats | PE (3) | 316L |
Balls | Glass (3) | 316L |
Contour plate | PVC | 316L |
Diaphragm | PTFE | PTFE |
Discharge ball spring | Hastelloy® C-276 alloy | 316L |
Seals | FKM (4) | PTFE |
(1) Pressure is limited to 10 bar at 20°C and pressure derated 1.1 bar / 5°C. Maximum operating temperature: 50°C
(2) Milton Roy keeps an interchangeability table for national and international standards (AFNOR, DIN, ASTM, BS, etc).
(3) MAXROY® B145: PVC
(4) Other material on request
OTHER LIQUID END MATERIAL

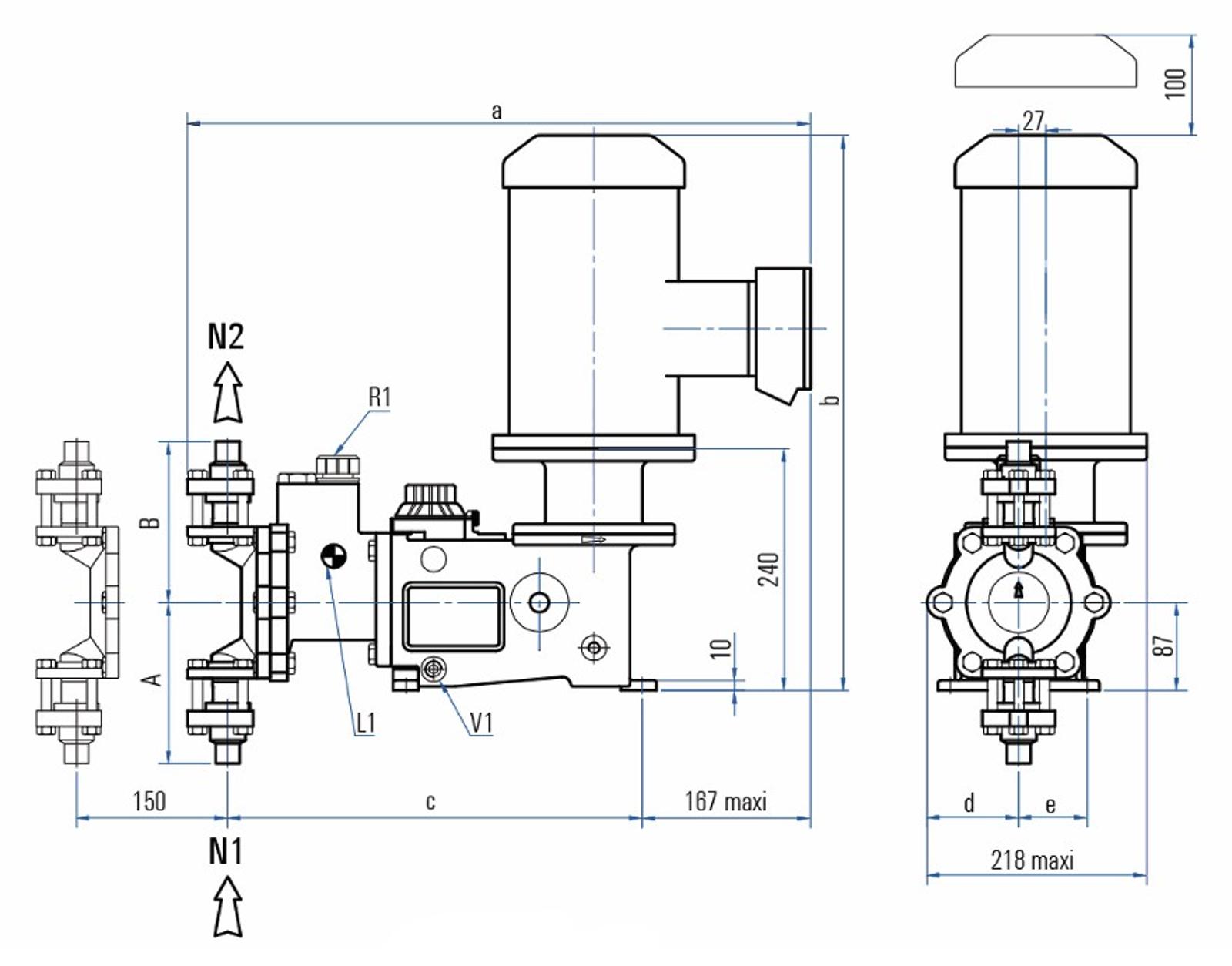

Models (spm) | Dimensions (mm) | Connections | |
|---|---|---|---|
Screwed | 58 - 96 - 144 | A = 160 | N1 = R 1/2"G or 1/2"NPT |
180 | A = 186 | N1 = R 3/4"G or 3/4"NPT | |
Welded | 58 - 96 - 144 | A = 160 | N1 = 1/2" |
180 | A = 186 | N1 = 3/4" | |
Flanged | 58 - 96 - 144 | A = 208 | N1 = 1/2" ANSI 150 LBS |
180 | A = 239 | N1 = 3/4" ANSI 150 LBS | |
Food grade | 58 - 96 - 144 |
A = 160 B = 160 | DIN 11851 Ø 28 |
180 | |||
